STB340 Tabung Penukar Panas Baja Karbon ASTM A192 ASTM A179 Permukaan Anil
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, TS16949
Nomor Model:
ASTM A192 / ASTM A179
Properti Perdagangan
Jumlah Pesanan Minimum:
3tons
Harga:
USD2500/ton
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
60000ton / tahun
Ringkasan Produk
TORICH ASTM A192 ASTM A179 STB340 Pipa Boiler Baja Karbon Aplikasi: untuk Boiler, Superheater, Penukar panas, Boiler tekanan tinggi, Boiler uap Kondensator dingin dan layanan tekanan tinggi, Layanan suhu tinggi untuk konstruksi boiler Pembuatan:Tabung diproduksi dengan proses yang lancar dan baik ...
Rincian produk
Menyoroti:
baja karbon Tabung
,Penukar panas tabung
Product Name:
Pipa Boiler Baja Seamless
Standard:
ASTM A192 / ASTM A179
Technique:
Mulus
Section Shape:
Bulat
Certification:
ISO9001, TS16949
Alloy Or Not:
Tidak
Secondary Or Not:
Non-sekunder
Special Tube:
Boiler Tube
Surface:
Anil
Shipment:
Laut / udara
Deskripsi Produk
TORICH ASTM A192 ASTM A179 STB340 Pipa Boiler Baja Karbon
Aplikasi:
untuk Boiler, Superheater,
Penukar panas,
Boiler tekanan tinggi,
Boiler uap
Kondensator dingin dan layanan tekanan tinggi,
Layanan suhu tinggi untuk konstruksi boiler
Pembuatan:Tabung diproduksi dengan proses yang lancar dan baik hot finish maupun cold finish yang berlaku.
Tabung ketel karbon tanpa jahitan tekanan tinggi a192 a179 untuk dijual
a192 a179 tabung boiler tanpa jahitan
Pengolahan panas:Tabung-tabung yang sudah selesai panas tidak perlu dirawat panas.Tabung Cold Finished dirawat panas setelah melewati akhir Cold Finishing pada suhu 1200°F ((650°C) atau lebih tinggi
Kelas baja SA192 Komposisi Kimia & Sifat Mekanis
| C | Mn | P | S | Ya. | Kekuatan tarik | Titik Yeild | Perpanjangan |
| 0.06-0.18 | 0.27-0.63 | 0.035Max | 0.035Max | 0.25Max | min ksi[Mpa] 47[325] | Min ksi[Mpa] 26[180] | ≥ 35% |
Kekerasan
| Kekerasan Brinell | Nomor Kekerasan Rockwell |
| WT≥0,200in ((5,1mm) | WT<0,200in ((5,1mm) |
| 137HRB | 77HRB |

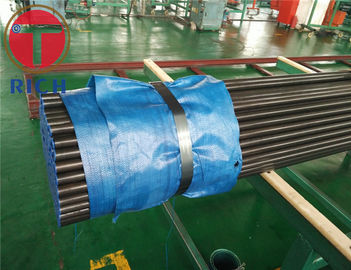

Kemasan: Pipa boiler dikemas dalam bungkus, dalam kantong tenun.
