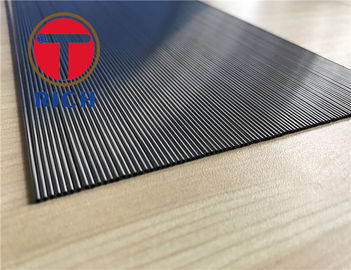

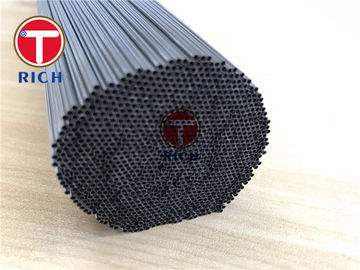

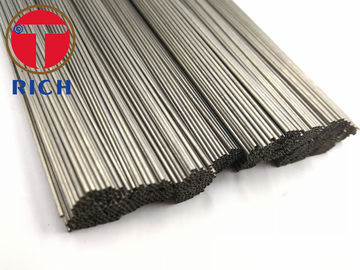

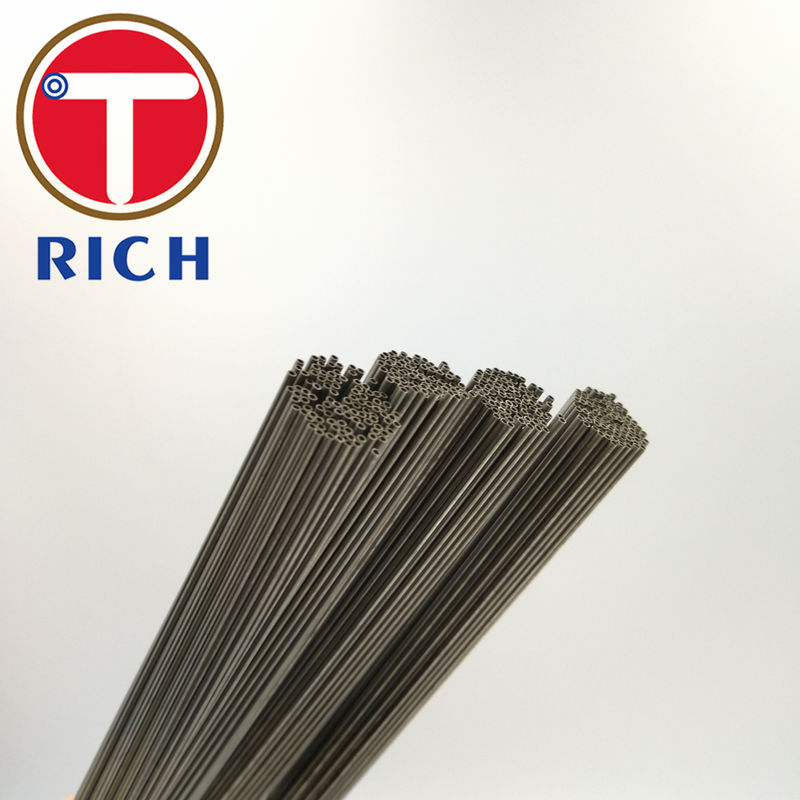

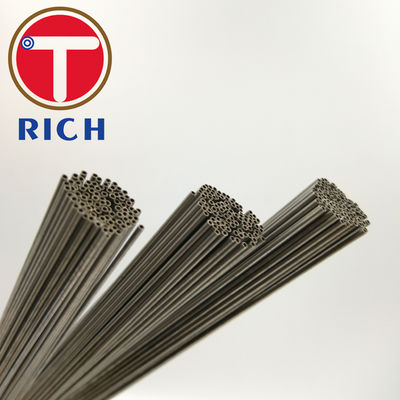

Medis Mikro 201 304 316 Stainless Steel Tabung Kapiler Permukaan Dipoles Dipoles
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, TS16949
Nomor Model:
SS201 304 316
Properti Perdagangan
Jumlah Pesanan Minimum:
100KGS
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
60000ton / tahun
Ringkasan Produk
10x0.1 Penggunaan medis Micro 201 304 316 Stainless Steel Capillary Tube Nama Tabung baja tahan karat Standar ASTM A213,ASTM A312,ASTM A789,ASTM A790 Kelas material 201/202/304/316/S31803/S32750 Diameter luar 0.1mm--219.1mm Ketebalan 0.05mm - 20mm Panjang ≤12000mm atau sesuai permintaan pelanggan ...
Rincian produk
Menyoroti:
tabung bulat stainless steel
,tabung stainless steel
Product Name:
Tabung Kapiler Stainless Steel
Standard:
SS316
Technique:
Lasan
Section Shape:
Bulat
Certification:
ISO9001, TS16949
Alloy Or Not:
Tidak
Secondary Or Not:
Non-sekunder
Special Tube:
Tabung Kapiler Stainless Steel
Surface:
Dipoles
Shipment:
Laut / udara
Deskripsi Produk
10x0.1 Penggunaan medis Micro 201 304 316 Stainless Steel Capillary Tube
| Nama | Tabung baja tahan karat |
| Standar | ASTM A213,ASTM A312,ASTM A789,ASTM A790 |
| Kelas material | 201/202/304/316/S31803/S32750 |
| Diameter luar | 0.1mm--219.1mm |
| Ketebalan | 0.05mm - 20mm |
| Panjang | ≤12000mm atau sesuai permintaan pelanggan |
| Toleransi | a) Diameter luar: +/- 0,2 mm |
| b) Ketebalan: +/- 10% atau sesuai permintaan pelanggan | |
| c) Panjang: +/- 10mm | |
| Permukaan | Satin / garis rambut: 180#, 320# |
| Bahasa Polandia: 400#, 600#, 800# atau Surface Mirror | |
| Penggorengan | |
| Aplikasi | Dekorasi, ((Mengolah menjadi pagar, handrail, pintu dan jendela ),medis,industri, dll |
| Pengemasan | Kantong plastik / kemasan tenun ((silakan kirim rincian kemasan kepada kami jika Anda memiliki persyaratan lain) |
| Komposisi kimia | Elemen | 201 | 202 | 304 | 316 | S31803 | S32750 | |
| C | ≤ 0.15 | ≤ 0.15 | ≤ 0.08 | ≤ 0.08 | ≤ 0.030 | ≤ 0.030 | ||
| Ya. | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 0.80 | ||
| Mn | 5.5-7.5 | 7.5-10.0 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 1.20 | ||
| P | ≤ 0.060 | ≤ 0.060 | ≤ 0.045 | ≤ 0.045 | ≤ 0.030 | ≤ 0.035 | ||
| S | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.020 | ≤ 0.020 | ||
| Cr | 16-18 | 17-19 | 18-20 | 16-18 | 21-23 | 21-23 | ||
| Tidak | 3.5-5.5 | 4.0-6.0 | 42958 | 43022 | 4.5-6.5 | 6.0-8.0 | ||
| Mo | 2.0-3.0 | 2.5-3.5 | 3.0-5.0 | |||||
| N | ≤ 0.25 | ≤ 0.25 | 0.08-0.2 | 0.24-0.32 | ||||
| Cu | ≤ 0.50 | |||||||
| Sifat mekanik | Item material | 201 | 202 | 304 | 316 | S31803 | S32750 | |
| Kekuatan tarik (MPa) | ≥ 655 | ≥ 620 | ≥515 | ≥515 | ≥ 620 | ≥ 800 | ||
| Kekuatan output (MPa) | ≥260 | ≥310 | ≥205 | ≥205 | ≥ 450 | ≥ 550 | ||
| Perpanjangan (%) | ≥ 35 | ≥ 35 | ≥ 35 | ≥ 35 | ≥ 25 | ≥ 15 | ||
| Kekerasan (HV) | ≤ 230 | ≤ 230 | ≤ 200 | ≤ 200 | ≤ 303 | ≤323 | ||
