ASTM A249 304 316 Tabung Stainless Steel Dilas Melingkar Tabung Penukar Panas
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, TS16949
Nomor Model:
ASTM A249 304 316
Properti Perdagangan
Jumlah Pesanan Minimum:
1 TON
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
60000ton / tahun
Ringkasan Produk
ASTM A249 304 316 Las Stainless Steel Kapiler Terguling Tubing Beer Tube Coil OD:6-127mmWT:0.5-12mm Kelas: 304 316 317 dll Pipa stainless steel tanpa jahitan Coil Panas penukar tabung SUS304 / 304L / 316L Sifat Mekanis: Bahan Sifat Mekanis Kekuatan tarik ≥ MPa kekuatan yield ≥ MPa Elongasi ≥ % T12 ...
Rincian produk
Menyoroti:
tabung bulat stainless steel
,tabung stainless steel
Product Name:
Coil Tabung Stainless
Standard:
ASTM A249
Technique:
Lasan
Section Shape:
Bulat
Certification:
ISO9001, TS16949
Alloy Or Not:
Tahan karat
Secondary Or Not:
Non-sekunder
Surface:
Dipoles
Shipment:
Laut / udara
Packing:
Dalam gulungan, dalam kotak kayu
Deskripsi Produk
ASTM A249 304 316 Las Stainless Steel Kapiler Terguling Tubing Beer Tube Coil
OD:6-127mm
WT:0.5-12mm
Kelas: 304 316 317 dll
Pipa stainless steel tanpa jahitan Coil Panas penukar tabung SUS304 / 304L / 316L
Sifat Mekanis:
| Bahan | Sifat Mekanis | ||
| Kekuatan tarik ≥ MPa | kekuatan yield ≥ MPa | Elongasi ≥ % | |
| T12 | 415 | 220 | 30 |
| TP304 | 515 | 205 | 35 |
| TP304L | 458 | 170 | 35 |
| TP316 | 515 | 205 | 35 |
| TP316L | 485 | 170 | 35 |
| TP317 | 515 | 205 | 35 |
| TP317L | 515 | 205 | 35 |
| TP321 | 515 | 205 | 35 |
Kontrol kualitas:
1~ Pemeriksaan bahan baku yang masuk
2~ Pengelompokan bahan baku untuk menghindari campuran kelas baja
3~ Pemanasan dan Pencakar ujung untuk menggambar dingin
4~ Menggambar dingin dan penggulung dingin, pemeriksaan di jalur
5~ Pengolahan panas, +A, +SRA, +LC, +N, Q+T
6~ Perataan-Potong ke panjang yang ditentukan-Pengukuran selesai
7~ Pengujian mekanik di laboratorium sendiri dengan kekuatan tarik, kekuatan hasil, elongasi, kekerasan, dampak, struktur mikro dll

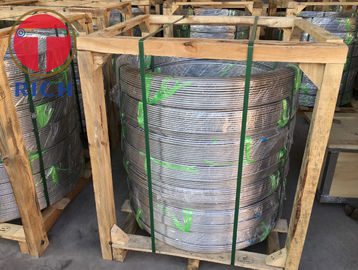

8~ Pengemasan dan Pengepakan.
