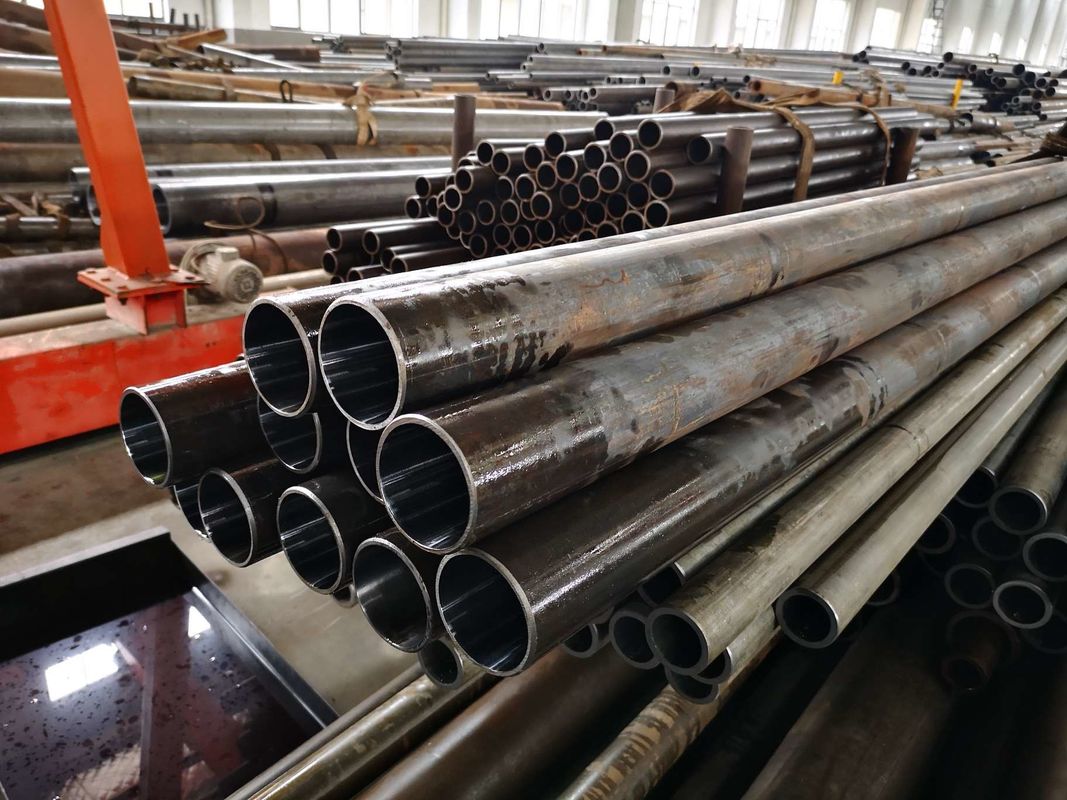

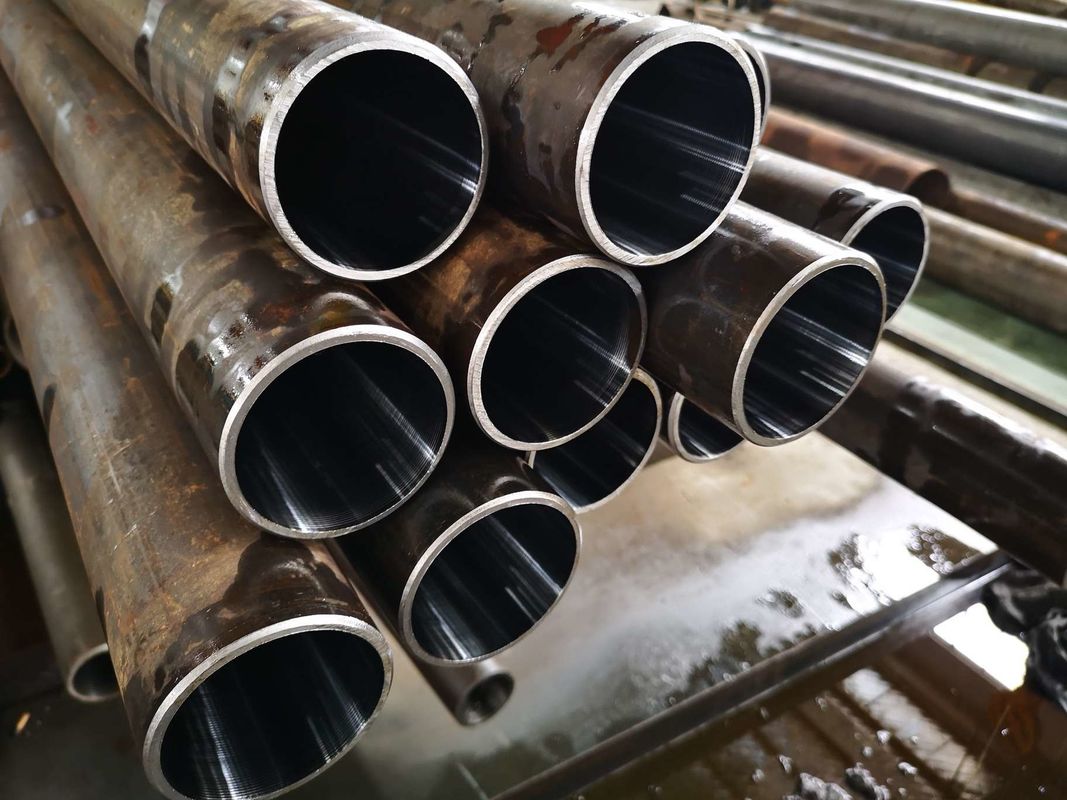

Pipa Baja Karbon Tarik Dingin Tanpa Sambungan ASTM A519 untuk Mesin
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO 9001-2008 ISO 14001 TS 16949 TUV CCS
Nomor Model:
ASTM A519
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / TL / CD / PD / A WesternUnion MoneyGram Lainnya
Kemampuan Penyediaan:
60000 Ton / Tahun
Ringkasan Produk
ASTM A519 +N, +SRA, pipa baja karbon tanpa jahitan yang ditarik dingin presisi tinggi Jangkauan ukuran:O.D.:6-350mm W.T.:1-50mm L:max12000mm Standar: ASTM A519 Aplikasi: untuk Mesin, insinyur mesin Kelas baja dan komposisi kimia: Baja C Mn P S Ya. Cr Mo Kelas maksimal maksimal maksimal maksimal ...
Rincian produk
Menyoroti:
stainless steel presisi tubing
,Seamless Carbon Steel tube
Material:
Karbon dan Alloy Steel
Steel Grade:
1008 1010 1018 1026 dll
Size Range:
O.D.: 6-350mm W.T.: 1-50mm L: max12000mm
Applications:
Untuk mesin, insinyur mekanik
Shape:
Bulat
Manufacture Technique:
Seamless Dingin Diambil dan Cold Rolling
Deliver Condition:
A.W.H.R. A.W.C.R. S.D.C.R. Gelar M.D. S.S.I.D.
Characteristic:
Teknik Tubing
Deskripsi Produk
ASTM A519 +N, +SRA, pipa baja karbon tanpa jahitan yang ditarik dingin presisi tinggi
Jangkauan ukuran:O.D.:6-350mm W.T.:1-50mm L:max12000mm
Standar: ASTM A519
Aplikasi: untuk Mesin, insinyur mesin
| Kelas baja dan komposisi kimia: | |||||||
| Baja | C | Mn | P | S | Ya. | Cr | Mo |
| Kelas | maksimal | maksimal | maksimal | maksimal | menit | ||
| 1008 | 0.10 | 0.30-0.50 | 0.040 | 0.050 | |||
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.040 | 0.050 | |||
| 1018 | 0.15-0.20 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1020 | 0.18-0.23 | 0.30-0.60 | 0.040 | 0.050 | |||
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1035 | 0.32-0.38 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1045 | 0.43-0.50 | 0.60-0.90 | 0.040 | 0.050 | |||
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.040 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.00 | 0.040 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| Kelas | kondisi | Ultimat | Hasil | Perpanjangan | Rockwell |
| Kekuatan | Kekuatan | Kekerasan | |||
| Ksi Mpa | Ksi Mpa | % | Skala B | ||
| 1020 | HR | 50 345 | 32 221 | 25 | 55 |
| CW | 70 483 | 60 414 | 5 | 75 | |
| SR | 65 448 | 50 345 | 10 | 72 | |
| A | 48 331 | 28 193 | 30 | 50 | |
| N | 55 379 | 34 234 | 22 | 60 | |
| 1025 | HR | 55 379 | 35 241 | 25 | 60 |
| CW | 75 517 | 65 448 | 5 | 80 | |
| SR | 70 483 | 55 379 | 8 | 75 | |
| A | 53 365 | 30 207 | 25 | 57 | |
| N | 55 379 | 36 248 | 22 | 60 | |
| 1035 | HR | 65 448 | 40 276 | 20 | 72 |
| CW | 85 586 | 75 517 | 5 | 88 | |
| SR | 75 517 | 65 448 | 8 | 80 | |
| A | 60 414 | 33 228 | 25 | 67 | |
| N | 65 448 | 40 276 | 20 | 72 | |
| 1045 | HR | 75 517 | 45 310 | 15 | 80 |
| CW | 90 621 | 80 552 | 5 | 90 | |
| SR | 80 552 | 70 483 | 8 | 85 | |
| A | 65 448 | 35 241 | 20 | 72 | |
| N | 75 517 | 48 331 | 15 | 80 | |
| 4130 | HR | 90 621 | 70 483 | 20 | 89 |
| SR | 105 724 | 85 586 | 10 | 95 | |
| A | 75 517 | 55 379 | 30 | 81 | |
| N | 90 621 | 60 414 | 20 | 89 | |
| 4140 | HR | 120 855 | 90 310 | 15 | 100 |
| SR | 120 855 | 100 689 | 10 | 100 | |
| A | 80 552 | 60 414 | 25 | 85 | |
| N | 120 855 | 90 621 | 20 | 100 |
Kondisi pengiriman:
1A.W.H.R. "sebagai las" dari baja bergelombang panas
2A.W.C.R. "sebagai las" dari baja yang digulung dingin
3S.D.C.R. "sink-drawn", baja yang digulung dingin
5. M.D. mandrel ditarik
6. S.S.I.D. diameter dalaman halus khusus
Silahkan tentukan kondisi pengiriman dan persyaratan pengolahan panas saat mengirimkan pertanyaan.
