ASTM SAMA SA192 Dingin Diambil Tabung Baja Mulus SA192 Kelas Untuk Boiler
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001 TSI16949
Nomor Model:
SA192
Properti Perdagangan
Jumlah Pesanan Minimum:
5tons
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
D / A, L / C, D / A, D / P, T / T, Western Union, MoneyGram
Kemampuan Penyediaan:
6000 ton / tahun
Ringkasan Produk
ASTM SAME SA192 Tabung Baja Tanpa Sambungan untuk Boiler Aplikasi: untuk Boiler, Superheater, Penukar panas, Boiler tekanan tinggi, Boiler uap Kondensator dingin dan layanan tekanan tinggi, Layanan suhu tinggi untuk konstruksi boiler Pembuatan: Tabung diproduksi dengan proses yang lancar dan baik ...
Rincian produk
Menyoroti:
tabung baja ditarik dingin
,tabung ditarik dingin
Product Name:
Tabung Boiler SA192
Grade:
SA192
Technique:
Dingin Digambar
OD:
12.7-177.8mm
WT:
2.2-25.4mm
Length:
4-12.5m
Alloy Or Not:
Bebas-alloy
Secondary Or Not:
Non-sekunder
Shipment:
Laut, udara
Certificate:
EN10204.3.1
Deskripsi Produk
ASTM SAME SA192 Tabung Baja Tanpa Sambungan untuk Boiler
Aplikasi:
untuk Boiler, Superheater,
Penukar panas,
Boiler tekanan tinggi,
Boiler uap
Kondensator dingin dan layanan tekanan tinggi,
Layanan suhu tinggi untuk konstruksi boiler
Pembuatan:
Tabung diproduksi dengan proses yang lancar dan baik hot finish maupun cold finish yang berlaku.
tabung baja boiler tanpa jahitan
Ukuran:
OD 12,7-177,8 mm
WT 2,2-25,4 mm
tabung boiler baja paduan
Pengolahan panas:
Tabung-tabung yang sudah selesai panas tidak perlu dirawat panas.Tabung Cold Finished dirawat panas setelah melewati akhir Cold Finishing pada suhu 1200°F ((650°C) atau lebih tinggi
Kelas baja SA192 Komposisi Kimia & Sifat Mekanis
| C | Mn | P | S | Ya. | Kekuatan tarik | Titik Yeild | Perpanjangan |
| 0.06-0.18 | 0.27-0.63 | 0.035Max | 0.035Max | 0.25Max | min ksi[Mpa] 47[325] | Min ksi[Mpa] 26[180] | ≥ 35% |
Kekerasan

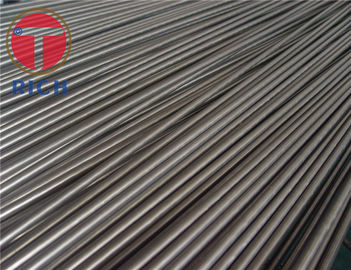

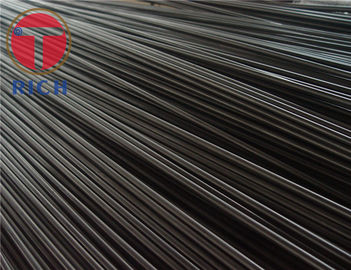

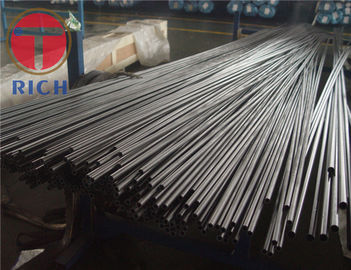

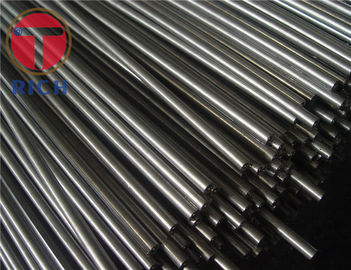

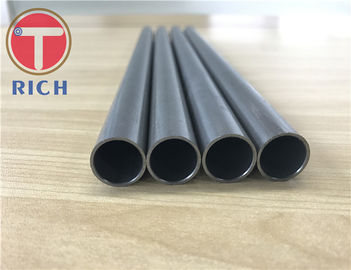

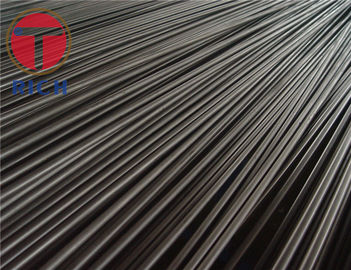

Foto tabung boiler ASTM A192
