Pipa Baja Karbon Datar Elips Dilas Permukaan Permukaan Tinggi
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, TS16949
Nomor Model:
GBT3094
Properti Perdagangan
Jumlah Pesanan Minimum:
5tons
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
60000ton / tahun
Ringkasan Produk
Tabung elliptik oval sisi datar baja karbon las Standar GB/T3094, BS, JIS, GB, DIN, ASTM, API Materi 10#-45# A53-A369, ST35-ST52, Q195, Q235, Q345 Ukuran OD: 4-1200mm WT: 0.3-200mm Panjang: 1-12m Aplikasi Teknik Mesin, Mesin Pertanian, Konstruksi Struktural Permukaan dicat,digalvanisasi,atau ...
Rincian produk
Menyoroti:
pipa baja dilas
,tabung baja las tahan listrik
Product Name:
Tabung Oval Baja Karbon
Steel Grade:
Q195, Q235, 1020
Technique:
Lasan
Section Shape:
Oval
Certification:
ISO9001, TS16949
Alloy Or Not:
Tidak
Secondary Or Not:
Non-sekunder
Special Tube:
Tabung Struktural Elips
Surface:
diminyaki
Shipment:
No input file specified.
Deskripsi Produk
Tabung elliptik oval sisi datar baja karbon las
| Standar | GB/T3094, BS, JIS, GB, DIN, ASTM, API |
| Materi | 10#-45# A53-A369, ST35-ST52, Q195, Q235, Q345 |
| Ukuran | OD: 4-1200mm WT: 0.3-200mm Panjang: 1-12m |
| Aplikasi | Teknik Mesin, Mesin Pertanian, Konstruksi Struktural |
| Permukaan | dicat,digalvanisasi,atau dicelupkan minyak sesuai dengan kebutuhan pelanggan |
| Pengujian dan Inspeksi | Uji mekanik, uji tegangan Uji pembakaran, uji perataan Uji kekerasan, uji listrik hidrostatik atau tidak merusak dll. |
Sifat Mekanis
| Kelas | Kekuatan tarik min Mpa | Kekuatan output min Mpa | Elongasi min % |
| 10 | 335 | 205 | 24 |
| 20 | 390 | 245 | 20 |
| 35 | 510 | 305 | 17 |
| 45 | 590 | 335 | 14 |
| Q195 | 315 | 195 | 22 |
| Q215 | 335 | 215 | 22 |
| Q235 | 375 | 235 | 20 |
| Q295 | 430 | 295 | 22 |
| Q345 | 510 | 345 | 21 |
| Q390 | 530 | 390 | 18 |

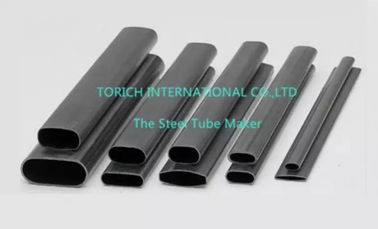

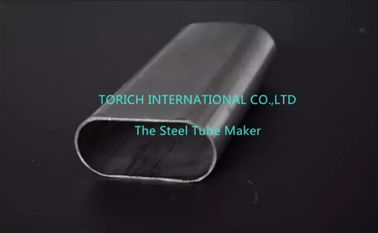

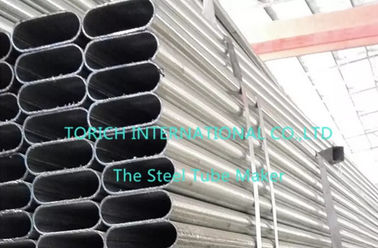

Foto tabung oval
Kemasan: dikemas dalam bungkus, dalam kantong tenun.
