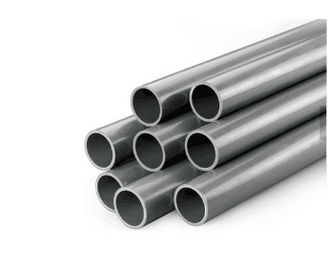

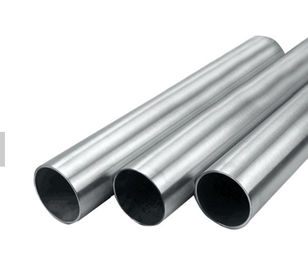

Food Grade Tabung Stainless Steel Sanitary Dilas Dengan ASTM A270 Standar
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, TS16949
Nomor Model:
ASTM A270
Properti Perdagangan
Jumlah Pesanan Minimum:
3tons
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
60000 ton / tahun
Ringkasan Produk
ASTM A270 304 316 316L Tabung Sanitasi Baja Ringan Tembaga/Lampiran/Eliptik Aplikasi:Terutama digunakan dalam industri bir, minuman, buku harian, biofarmaseutikal, harian, kosmetik, peralatan pengeringan terkonsentrasi. Jangkauan ukuran:OD:12-254mm WT: 1-12mm Panjang: 6000mm atau sesuai permintaan ...
Rincian produk
Menyoroti:
tabung bulat stainless steel
,tabung stainless steel
Product Name:
Tabung Sanitasi Stainless Steel Dilas
Standard:
ASTM A270
Technique:
Lasan
Section Shape:
Bulat
Certification:
ISO9001, TS16949
Alloy Or Not:
Tahan karat
Secondary Or Not:
Non-sekunder
Special Tube:
Food Grade Stainless Steel Pipe
Surface:
Satin / Garis Rambut
Hea Treatment:
Ya
Deskripsi Produk
ASTM A270 304 316 316L Tabung Sanitasi Baja Ringan Tembaga/Lampiran/Eliptik
Aplikasi:Terutama digunakan dalam industri bir, minuman, buku harian, biofarmaseutikal, harian, kosmetik, peralatan pengeringan terkonsentrasi.
Jangkauan ukuran:
OD:12-254mm
WT: 1-12mm
Panjang: 6000mm atau sesuai permintaan pelanggan
Bahan:
Kelas:baja tahan karat 304, 316
| Sifat Kimia | ||||||||
| C | Ya. | Mn | P | S | Cr | N | Mo | |
| 304 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | ≤ 0.03 | 18.0 ~ 20.0 | 8.0-10.5 | - |
| 316 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | ≤ 0.03 | 16.0~18.0 | 10.0-14.0 | 2.0-3.0 |
Pembuatan:
Pipa harus dibuat dengan proses yang mulus.
Sifat Mekanis:
| Sifat Mekanis: | ||||
| Kekuatan tarik (Mpa) | Kekuatan hasil (Mpa) | Apa itu? | Ekstensi % | |
| 304 | ≥ 520 | ≥ 205 | < 200 | ≥ 35 |
| 316 | ≥ 520 | ≥ 205 | < 200 | ≥ 35 |
Permukaan:
180G, 320G, 400G Satin / garis rambut
Kemasan:
Dengan struktur kayu yang kuat kotak pengemasan oleh kontainer loading dan pengiriman.
Atau sesuai kebutuhan pelanggan.
Tes:
- Tes PMI
- Uji hidraulik
- 100% Di dalam dibersihkan dengan spons
- 100%Pengujian Dimensi
- 100% Uji permukaan
