St52 E355 Dingin Diambil 16mm Diameter Luar 5.5 Diameter Dalam Presisi Tabung Baja Berongga Seamless
Properti Dasar
Tempat Asal:
Zhejiang China
Nama merek:
TORICH
Sertifikasi:
ISO 9001
Nomor Model:
CK45
Properti Perdagangan
Jumlah Pesanan Minimum:
1 TON
Harga:
USD 1500-2000 Per Ton
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
500 ton per bulan
Ringkasan Produk
St52 E355 Cold Drawn 16mm Diameter Luar 5.5 Diameter Dalam Keakuratan Seamless Hollow Steel Tube Standar DIN2391, EN10305-1,ASTM A 179 ASTM A 192 ASTM A519 Bahan E355/SAE1026/Q355B/Q355D/CK45/ST52/ASTM A 106 GR.B ((ST45) Diameter luar 10mm-325mm Ketebalan dinding 1mm-40mm Panjang 3-12m, acak atau ...
Rincian produk
Menyoroti:
pipa baja presisi
,pipa seamless presisi
Thickness:
3 - 25 mm mm
Application:
Pipa hidrolik
Outer Diameter(Round):
20 - 480 mm mm
Length:
<12m atau sesuai permintaan pelanggan
Deskripsi Produk

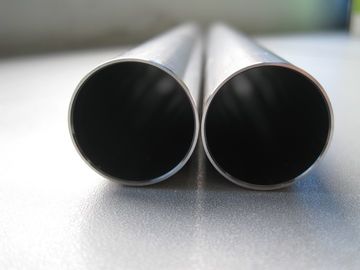

St52 E355 Cold Drawn 16mm Diameter Luar 5.5 Diameter Dalam Keakuratan Seamless Hollow Steel Tube
| Kelas baja | C | Ya. | Mn | P≤ | S≤ | Cu≤ | Ni≤ | Cr≤ | Mo≤ | V≤ |
| ASTM A106 B | ≤ 0.3 | / | ≤ 1.2 | 0.05 | 0.06 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
| ST35 | ≤ 0.18 | 0.15-0.35 | 0.35-0.65 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| ST45 | ≤ 0.25 | 0.15-0.35 | 0.5-0.8 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| ST52 | ≤ 0.2 | ≤ 0.55 | ≤ 1.5 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| CK45 | 0.42-0.5 | 0.17-0.37 | 0.5-0.8 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
|
Kelas baja
| Rm MPa | ReH Mpa |
| ST45 | ≥520 | ≥375 |
| ST52 ((E355) | ≥600 | ≥520 |
| SAE1026 | ≥600 | ≥510 |
| 16Mn | ≥600 | ≥520 |
| 20# | ≥520 | ≥375 |
