ASTM A513 Presisi Dilas Pemasok Pipa Carbon Diambil Dingin Sepeda Motor Shock Absorber
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, TS16949
Nomor Model:
ASTM A513
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
USD1000-2500/ton
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
60000ton / tahun
Ringkasan Produk
ASTM A513 Precision Welded Cold Drawn Carbon Pipe Supplier Shock Absorber Tube Motorcycle TORICH adalah produsen profesional tabung presisi ERW yang diproduksi dari tabung ERW menjadi tabung baja presisi ERW dengan proses tarik dingin atau penggulung dingin,yang lebih baik pada konsentrisitas dan ...
Rincian produk
Menyoroti:
pipa baja presisi
,pipa seamless presisi
Product Name:
Tabung Sepeda Motor Shock Absorber
Standard:
ASTM A513
Technique:
CDW
Material:
SPCC Q195 Q235
Certification:
ISO9001, TS16949
Alloy Or Not:
Tidak
Secondary Or Not:
Non-sekunder
Special Tube:
Tabung Baja CDW Presisi
Section Shape:
Bulat
Surface:
Mabuk
Deskripsi Produk
ASTM A513 Precision Welded Cold Drawn Carbon Pipe Supplier Shock Absorber Tube Motorcycle
TORICH adalah produsen profesional tabung presisi ERW yang diproduksi dari tabung ERW menjadi tabung baja presisi ERW dengan proses tarik dingin atau penggulung dingin,yang lebih baik pada konsentrisitas dan ketebalan dinding rata daripada tabung tanpa jahitan.
Tapi kelemahan adalah,ERWtabung presisi akan membutuhkan MOQ yang lebih tinggi daripada tabung tanpa jahitan.
Komposisi Kimia dan Sifat Mekanisrtabung presisi:
| Besi kelas |
Komposisi kimia |
Sifat mekanik | ||||||
| C% | Si% | Mn% | P% | S% | Kekuatan tarik (Mpa) | Kekuatan hasil (Mpa) | Perpanjangan | |
| SPCC/SPHC | ≤ 0.12 | ≤ 0.025 | ≤ 0.50 | ≤ 0.035 | ≤ 0.025 | ≥ 270 | ... | ≥ 38 |
| ST12 ((DC01) | ≤ 0.10 | ... | ≤ 0.50 | ≤ 0.035 | ≤ 0.025 | ≥ 270 | 130-260 | ≥ 34 |
| ST37-2G/2 | ≤ 0.17 | ... | ≤ 1.00 | ≤ 0.035 | ≤ 0.030 | 360-510 | ≥215 | ≥ 20 |
| B340/590DP | ≤ 0.18 | ≤ 0.80 | ≤ 2.20 | ≤ 0.035 | ≤ 0.030 | ≥ 590 | 340 sampai 500 | ≥ 20 |
| B400/780DP | ≤ 0.20 | ≤ 0.80 | ≤ 2.50 | ≤ 0.035 | ≤ 0.030 | ≥ 780 | 400-590 | ≥ 16 |
| B340LA | ≤ 0.12 | ... | ≤ 1.00 | ≤ 0.030 | ≤ 0.030 | ≥440 | 240-460 | ≥26 |
| SS400 | ≤ 0.21 | ≤ 0.30 | ≤ 1.40 | ≤ 0.035 | ≤ 0.035 | 400-510 | ≥ 245 | ≥ 21 |
| Q195 | ≤ 0.12 | ≤ 0.30 | ≤ 0.50 | ≤ 0.035 | ≤ 0.040 | 315-430 | ≥195 | ≥33 |
| Q235B | 0.17-0.22 | ≤ 0.50 | ≤ 1.40 | ≤ 0.045 | ≤ 0.045 | 370-500 | ≥235 | ≥26 |
| Q345B | ≤ 0.20 | ≤ 0.30 | ≤ 1.70 | ≤ 0.035 | ≤ 0.035 | 470-630 | ≥ 345 | ≥ 20 |
| SAPH370 | ≤ 0.21 | ≤ 0.30 | ≤ 0.75 | ≤ 0.035 | ≤ 0.035 | ≥370 | ≥ 225 | ≥ 37 |
| SAPH400 | ≤ 0.21 | ≤ 0.30 | ≤ 1.20 | ≤ 0.030 | ≤ 0.025 | ≥ 400 | ≥255 | ≥ 36 |
| SAPH440 | ≤ 0.21 | ≤ 0.20 | ≤ 0.15 | ≤ 0.030 | ≤ 0.025 | ≥440 | ≥305 | ≥ 34 |
| Qste420TM | ≤ 0.12 | ≤ 0.50 | ≤ 1.50 | ≤ 0.030 | ≤ 0.025 | 480-620 | ≥420 | ≥ 21 |
| Qste460TM | ≤ 0.12 | ≤ 0.50 | ≤ 1.60 | ≤ 0.030 | ≤ 0.025 | 520-670 | ≥460 | ≥ 19 |
| BR1500HS/22MnB5 | 0.20-0.25 | 0.15-0.35 | 1.1-1.4 | ≤ 0.025 | ≤ 0.01 | 600 sampai 750 | ≥420 | ≥ 22 |
Tim teknis kami dapat membantu pada spesifikasi mata air gas Anda atau produk damper untuk memastikan bahwa
produk dipilih atau dikembangkan untuk aplikasi Anda.

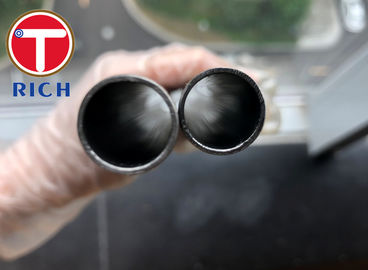

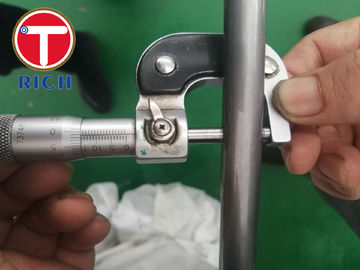

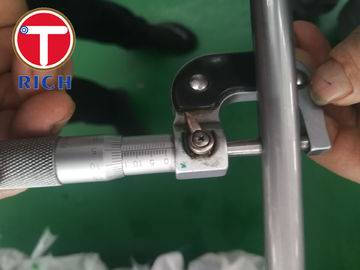

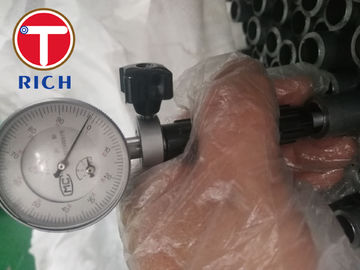

Shock Absorber Motorcycle Tube Foto menunjukkan di lokasi produksi:
ERW tabung baja presisi adalah untukPeredam kejut aplikasi:

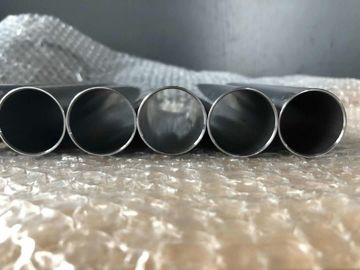

Pengemasan untuktabung presisi:
Shock Absorber Tube Sepeda Motoryang dikemas dalam bungkus, dalam kantong kain.
