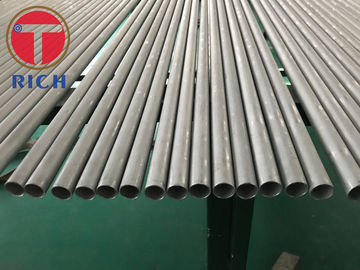

Tabung Penukar Panas OD 50.8mm 63.5mm TP304H
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001 TS16949
Nomor Model:
SA-213
Properti Perdagangan
Jumlah Pesanan Minimum:
1TON
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Kemampuan Penyediaan:
5000 ton per tahun
Ringkasan Produk
SA-213-TP304H Boiler baja ferit dan austenit tanpa jahitan, superheater, dan tabung penukar panas. Detil cepat: Standar:SA213 Marterial:TP304H Aplikasi:TP304H Metode produksi: Tanpa jahitan Spesifikasi detail: Sifat Kimia: Karbon: 0.04-0.10 Silikon: 0,75 maksimum. Mangan: 2.00 Nikel: 8.00-11.0 ...
Rincian produk
Menyoroti:
tabung baja karbon
,tabung penukar panas
Standard:
SA-213
Material:
TP304H
OD:
50.8mm 63.5mm
Wall Thickness:
4.191mm
Length:
Sesuai permintaan pelanggan
Application:
boiler, superheater, dan penukar panas
Deskripsi Produk
SA-213-TP304H Boiler baja ferit dan austenit tanpa jahitan, superheater, dan tabung penukar panas.
Detil cepat:
Standar:SA213
Marterial:TP304H
Aplikasi:TP304H
Metode produksi: Tanpa jahitan
Spesifikasi detail:
Sifat Kimia:
| Karbon: 0.04-0.10 | Silikon: 0,75 maksimum. |
| Mangan: 2.00 | Nikel: 8.00-11.0 |
| Kalium: 0.04 | Kromium: 18,0-20.0 |
| Sulfur: 0.03 | Molibdenum: n/a |
Sifat Mekanis:
Kekuatan tarik:ksi: 75 MPa: 517
Hasilnya: ksi: 30 MPa: 207
Elongasi dalam 2 inci atau 50 mm, minimal %:35
Maks. Kekerasan Rockwell B: 90
