ASME B16.9 Mulus 90 Derajat LR Siku 316L 304L Permukaan Polandia Untuk Boiler
Rincian produk
pipa baja presisi
,pipa seamless presisi

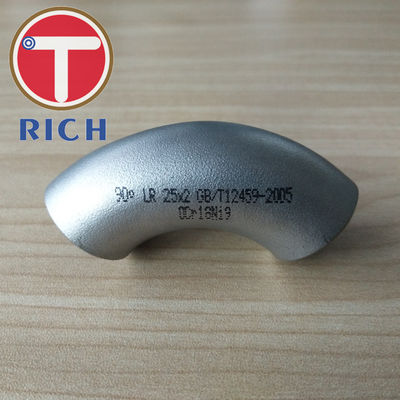

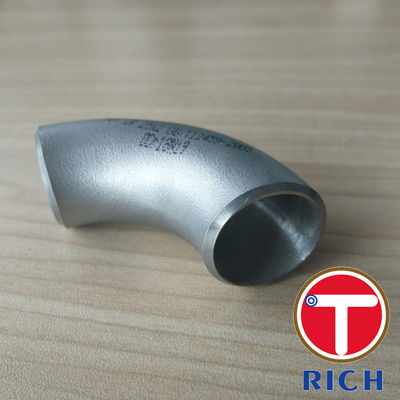

ASME B16.9 316L 304L Baja tahan karat 90 derajat LR siku
Ukuran:tanpa jahitan1/2'~12' (DN15-DN600)
dilas1/2'~12' (DN15~DN1200)
Standar:ASME B16.9 DIN2605 JIS
Ketebalan:SCH5S-SCH160
Bahan:317/L; 304/L;316/L;310/S;309/S;347/H;321/321/H;904/L
Aplikasi:Susu, makanan, bir, minuman, farmasi, kosmetik, dll.
| DN | NPS | OD | Pusat sampai akhir | Pusat ke Pusat |
| 25 | 1 | 32 33.4 | 25 | 50 |
| 32 | 1 1/4 | 38 42.2 | 32 | 64 |
| 40 | 1 | 45 48.3 | 38 | 76 |
| 50 | 2 | 57 60.3 | 51 | 102 |
| 65 | 2 1/2 | 76 73 | 64 | 128 |
| 80 | 3 | 89 | 76 | 152 |
| 90 | 3 1/2 | 101.6 | 89 | 178 |
| 100 | 4 | 108 114 | 102 | 204 |
| 125 | 5 | 133 141.3 139.7 | 127 | 254 |
| 150 | 6 | 168.3 159 165 | 152 | 304 |
| 200 | 8 | 219 216 | 203 | 406 |
Bagaimana cara mendapatkan sampelnya?
1. Anda diminta untuk membayar biaya sampel dan biaya kurir dari Cina ke negara Anda; dan sampel gratis adalah sesuai dengan produk seperti ukuran, kelas baja dan kuantitas,Silakan konsultasikan penjualan kami untuk rincian
2Biaya sampel akan dikembalikan ketika pesanan ditempatkan.
Berapa jangka waktu pembayaranmu?
1T/T: 30% deposit di muka, saldo 70% dibayar sebelum pengiriman
2. 30% uang muka, saldo 70% dibayarkan terhadap L/C pada saat melihat
3Setelah negosiasi.
Siapa pelangganmu?
1Pemasok, Distributor, Grosir, Agen, Pedagang, Pengguna Akhir, dll.
Berapa lama kau akan bereaksi terhadap permintaan kami?
1Permintaan Anda akan ditangani dalam waktu 24 jam pada hari kerja.
Kutipan akan dikirim setelah rincian teknis dikonfirmasi oleh pelanggan!
Jika ada pertanyaan tentang keraguan Anda, jangan ragu untuk mengirim email Anda atau hubungi kami!
-
