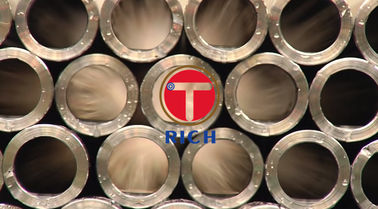

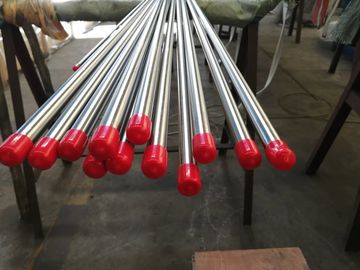

80mm 12mm Hidrolik 1,5 Inch A269 Stainless Steel Tube
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001
Nomor Model:
ASTM A213, ASTM A269, EN10216-5
Properti Perdagangan
Jumlah Pesanan Minimum:
1000kg
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L / C, T / T
Kemampuan Penyediaan:
5000kgs per satu tahun
Ringkasan Produk
1.5 inci 28mm 22mm 80mm 12mm Stainless Steel Tube Steel Precision Tubes Toleransi: D4/T3 NDT:Eddy Current atau Hydraulic Test atau UT Pengolahan panas:Cerah Annealed Penjaminan Mutu: SayaSO 9001&PED 97/23/EC bersertifikat dengan 100% pelacakan pada semua tabung instrumen dan laporan uji bahan ((EN ...
Rincian produk
Menyoroti:
A269 Tabung Baja Stainless
,Tabung Baja Stainless 12mm
Certification:
ISO
Steel Grade:
300 Seri
Application:
鎮ㄨ鎵剧殑璧勬簮宸茶鍒犻櫎銆佸凡鏇村悕鎴栨殏鏃朵笉鍙敤銆
Type:
Mulus
Standard:
GB, ASTM, DIN, AISI, JIS
Thickness:
0.4-30mm
Deskripsi Produk
1.5 inci 28mm 22mm 80mm 12mm Stainless Steel Tube Steel Precision Tubes
Toleransi: D4/T3
NDT:Eddy Current atau Hydraulic Test atau UT
Pengolahan panas:Cerah Annealed
Penjaminan Mutu: SayaSO 9001&PED 97/23/EC bersertifikat dengan 100% pelacakan pada semua tabung instrumen dan laporan uji bahan ((EN 10204/3.1B) mengiringi setiap pengiriman atas permintaan.
Jenis apa?tidak stabilpipa yang bisa kita produksi?
Satuan: mm
| OD 4.76 | WT 0,71 0,89 1.24 |
| OD 6 | WT 11.5 |
| OD 6.35 | WT 0,71 0,89 1,24 1.65 |
| OD 7.94 | WT 0,71 0,89 1,24 1.65 |
| OD 9.53 | WT 0,71 0,89 1,24 1.65 |
| OD 10 | WT 11.5 |
| OD 12 | WT 1 1.5 2 |
| OD 12.7 | WT 0,71 0,89 1,24 1,65 2.11 |
| OD 14 | WT 1 1.5 2 |
| OD 15.88 | WT 0,89 1,24 1,65 2.11 |
| OD 16 | WT 1 1.5 2 |
| OD 19.05 | WT 0,89 1,24 1,65 2.11 |
| OD 25.4 | WT 0,89 1,24 1,65 2.11 |
Aplikasi:
Saluran kontrol pipa di sumur minyak dan gas.
Tabung Instrumen
Jalur Injeksi Tabung Kimia
Saluran pipa pemanasan listrik atau pemanasan uap
Saluran pipa pemanas
