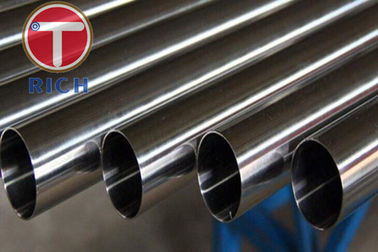

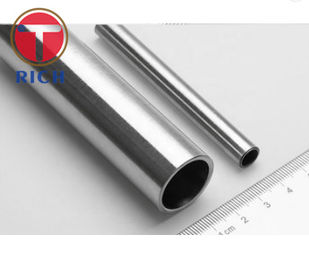

OD 219mm Dipoles Dekoratif 201 Ss Seamless Pipe
Rincian produk
201 Ss Seamless Pipe
,OD 219mm Ss Seamless Pipe
,6m Decorative Stainless Steel Pipe
| Bahan | 3040cr18ni9, 0cr17ni8 201Aku tidak tahu apa yang terjadi. 316:0cr17ni12 atau sesuai permintaan pelanggan |
| Ukuran (pipa bulat) | 9.5, 12.7, 15.9, 17, 18, 19.1, 20, 21, 22.2, 23, 25.4, 28, 318, 35, 60, 63.5, 73, 76.2, 88.9, 101.6,114.3, 127, 133, 159, 168, 219 mm atau disesuaikan |
| Ukuran (pipa persegi) | 10×10,12×12,18×18,23×23,38×38,50×50,70×70,100×100,20×10,23×10, 24 x 12, 25 × 13,36 × 23,40 × 20,50 × 20,60 × 15,75 × 45,80 × 60,95 × 45,100 × 60, 150×100 mm atau disesuaikan |
| Ukuran (pipa oval) | 30 x 15,80×40 mm os disesuaikan |
| Metode proses | Kode yang ditarik, dipanaskan dengan perlindungan nitrogen, ultrasonik,bentuk otomatis, dipoles |
| Penutup | A: diblas B: 400#-600# cermin C: garis rambut disikat D: TIN titanlum E: HL disikat & cermin (dua jenis finishing untuk satu pipa) |
| Pengujian dan Inspeksi | - Tes Mekanis - Tes ketegangan - Tes perataan - Tes Kekerasan - Tes lentur - Uji hidrostatik - Tes listrik non-destructive |
| Bahan | C | Ya. | Mn | P | S | Cr | Tidak |
| 201 | ≤ 0.12 | ≤ 0.75 | 9.5-12.5 | ≤ 0.045 | ≤ 0.03 | 13-16 | 0.8-1.5 |
| 304 | ≤ 0.08 | ≤ 0.75 | ≤ 2.0 | ≤ 0.045 | ≤ 0.03 | 18-19 | 8-10 |
| 316 | ≤ 0.08 | ≤ 1.00 | ≤ 2.0 | ≤ 0.035 | ≤ 0.03 | 10-14 | 16.0-18.5 |
| 430 | ≤ 0.12 | ≤ 0.75 | ≤ 2.0 | ≤ 0.04 | ≤ 0.03 | 16-18 | ≤ 0.6 |
KONTROL KUALITAS:
1. Inspeksi bahan baku yang masuk
2. Pengelompokan bahan baku untuk menghindari campuran kelas baja
3. Pemanasan dan Hammering End untuk Cold Drawing
4. Menggambar dingin dan penggulung dingin, pemeriksaan di jalur
5Pengolahan panas, +A, +SRA, +LC, +N, Q+T
6. Straightening-Motong ke panjang yang ditentukan-Selesai Pengukuran Inspeksi
7. Pengujian mekanik di laboratorium sendiri dengan kekuatan tarik, kekuatan hasil, elongasi, kekerasan, dampak, mikrostruktur dll
8Pengemasan dan Pengepakan
100% dari tabung baja kami diperiksa dimensi
100% tabung baja kami diperiksa secara visual untuk memastikan mereka memiliki kondisi permukaan yang sempurna dan tidak ada cacat permukaan.
Uji arus pusaran 100% dan uji ultrasonik untuk menghilangkan cacat longitudinal dan transversal.
-
