DIN2391 ST 37.4 nbk Tabung Boiler
Properti Dasar
Tempat Asal:
Zhejiang, Cina
Nama merek:
TORICH
Sertifikasi:
ISO
Nomor Model:
DIN2391
Properti Perdagangan
Jumlah Pesanan Minimum:
5 Ton
Ketentuan Pembayaran:
L / C, D / P, T / T, Serikat Barat, MoneyGram
Kemampuan Penyediaan:
3000 Ton / Ton per Bulan dapat menyesuaikan
Ringkasan Produk
DIN2391 ST 37.4 nbk Boiler Tube Spesifikasi yang ditawarkan untuk tabung baja injeksi bahan bakar DIN 2391 st37.4 Standar:DIN 2391 Kelas baja:ST35, ST37, ST37.4, ST45, ST52, ST52.4 Ukuran:OD (4-190mm) x WT (0,5-15mm) Kondisi pengiriman:NBK ((+N), GBK ((+A), BK ((+C), BKW ((+LC), BKS ((+SR). Aplikasi...
Rincian produk
Menyoroti:
DIN2391 Seamless Mechanical Tubing
,ST52 Seamless Mechanical Tubing
,20mm Seamless Steel Tube
Model Number:
DIN 2391
Grade:
ST35-ST52, St52, St37, St35.8, ST45
Application:
Pipa hidrolik
Alloy Or No:
Non-Paduan
Technique:
Canai dingin
Surface Treatment:
hitam / cerah
Thickness:
0,5-20mm
Section Shape:
Bulat
Material:
ST37 / ST52 / CK45 / AISI4140
Special Pipe:
Lain
Deskripsi Produk
DIN2391 ST 37.4 nbk Boiler Tube
Spesifikasi yang ditawarkan untuk tabung baja injeksi bahan bakar DIN 2391 st37.4
- Standar:DIN 2391
- Kelas baja:ST35, ST37, ST37.4, ST45, ST52, ST52.4
- Ukuran:OD (4-190mm) x WT (0,5-15mm)
- Kondisi pengiriman:NBK ((+N), GBK ((+A), BK ((+C), BKW ((+LC), BKS ((+SR).
- Aplikasi:Digunakan dalam sistem hidrolik, otomotif, lokomotif dan industri militer.
Komposisi Kimia
| Kelas | Komposisi kimia ((%): | ||||
| C max | Si max | Mn | P max | S max | |
| St 35 | 0.17 | 0.35 | ≥ 0.40 | 0.025 | 0.025 |
| St 45 | 0.21 | 0.35 | ≥ 0.40 | 0.025 | 0.025 |
| St 52 | 0.22 | 0.55 | ≤ 1.60 | 0.025 | 0.025 |
| Besi kelas | Komposisi kimia ((%): | ||||||
| Nama baja | Nomor baja | C max | Si max | Mn | P max | S max | Minimal |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
Sifat Mekanis ((Mpa):
| Besi kelas | BK | BKW | BKS | GBK | NBK | |||||||
| RmN/mm menit | menit | RmN/mm menit | menit | N/mm menit | ReH N/mm menit | menit | N/mm menit | menit | N/mm menit | ReH N/mm menit | menit | |
| St35 | 480 | 6 | 420 | 10 | 420 | 315 | 14 | 315 | 25 | 340-470 | 235 | 25 |
| St45 | 580 | 5 | 520 | 8 | 520 | 375 | 12 | 390 | 21 | 440-570 | 235 | 21 |
| St52 | 640 | 4 | 580 | 7 | 580 | 420 | 10 | 490 | 22 | 490-630 | 355 | 22 |
| Besi kelas | Nilai minimum untuk kondisi pengiriman | ||||||||||||
| Nama baja | Nomor baja | + C | + LC | + SR | + A | + N | |||||||
| Rm Mpa | A% | Rm Mpa | A% | Rm Mpa | ReH Mpa | A% | ReH Mpa | A% | Rm Mpa | ReH Mpa | A% | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490-630 | 355 | 22 |
Aplikasi:
- Silinder pneumatik
- Silinder hidraulik
- Pipa mesin presisi
- Mesin pertanian Konstruksi boiler

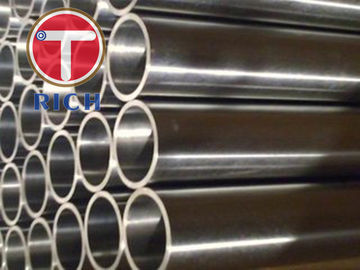

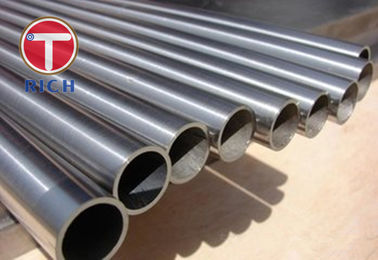

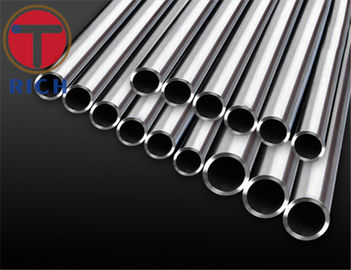

Gambar produk:
Kemasan dan Pengiriman:
FAQ:
T: Apakah Anda perusahaan dagang atau produsen?
A: Penemu profesional pipa baja, produsen dan penyedia solusi
T: Berapa lama waktu pengiriman Anda?
A: Umumnya adalah 7-14 hari jika barang ada di stok. atau 30-60 hari jika barang tidak ada di stok, tergantung pada kuantitas.
T: Apakah Anda menyediakan sampel tabung baja tahan karat? apakah itu gratis atau tambahan?
A: Ya, kami bisa menawarkan sampel gratis tetapi perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A: Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
