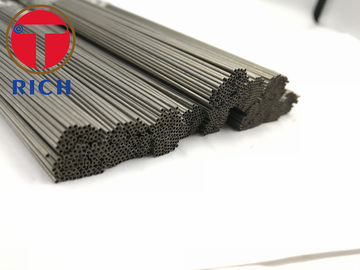

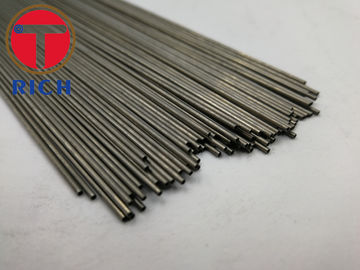

Tabung Hidraulik Seamless Kapiler 316L yang Dipoles
Rincian produk
Tabung Hidrolik Seamless Kapiler
,Tabung Hidrolik Seamless 316L
,Tabung Baja Presisi ASME
304 304L 316 316L Kapiler Precision Stainless Tubing
| Bahan | SBaja tahan karat | |
|
Kelas | 201 (1Cr17Mn6Ni5N) 202 ((1Cr18Mn8Ni5N) 304 ((0Cr18Ni9) 304L ((00Cr18Ni10) 306 ((0Cr17Ni12Mo2) 316L ((0Cr17Ni14Mo2) 321, 409, 409L, 430 | |
| standar | ASTM, ASME, EN, JIS, DIN, GB/T dll | |
|
Ukuran | Diameter luar:0.2mm-10mm | |
| Ketebalan dinding: 0.01mm-2mm | ||
| Panjang: 10mm -6000mm | ||
| Pengolahan permukaan | Polishing, permukaan cermin, terang, acar | |
| Jenis | Tersald, ERW, tanpa jahitan | |
| Metode pembuatan | Digulung panas, Ekstrusi, Digulung dingin, Digulung dingin | |
| Bentuk | Bulat, persegiTidak teratur. | |
|
Aplikasi | Arsitek/Teknisi Sipil | HKereta api, aksesoris pintu dan jendela, furnitur baja, bagian struktural dll. |
| Transportasi | ESistem exhaust, trim mobil, tanker jalan, kontainer kapal, kapal tanker kimia dll | |
| Kimia/Pharmaceutical | Pkapal resure, pipa proses dll | |
| Minyak & Gas | PAkomodasi latform, tray kabel, pipa bawah laut dll | |
| Air | WPengolahan air dan limbah, pipa air, tangki air panas dll | |
| Medis | SInstrumen darurat, implan bedah, pemindai MRI dll. | |
| Makanan & Minuman | Peralatan katering, pembuatan bir, pengolahan makanan dll | |
Aplikasi
1: Industri peralatan medis, tabung jarum suntikan, tabung jarum tusukan, tabung industri medis.
2: tabung pemanasan listrik industri, tabung minyak industri
3: tabung sensor suhu, tabung sensor, tabung barbekyu, tabung termometer, tabung termometer, tabung instrumen, tabung baja tahan karat termometer.
4Pen membuat pena, inti tabung, tabung pena.
5: Semua jenis tabung mikro elektronik, aksesoris serat optik, mixer ringan, kapiler baja tahan karat diameter kecil
6: industri jam tangan dan jam tangan, ibu-ke-anak, tiang telinga mentah, aksesori tali jam tangan, jarum tusuk perhiasan
7: semua jenis tabung antena, tabung antena ekor mobil, tabung antena tali, penunjuk peregangan, tabung antena peregangan ponsel, tabung antena mikro,antena komputer portabel antena baja tahan karat.
8: pipa stainless steel untuk peralatan laser engraving.
9: pipa untuk peralatan memancing, pipa untuk menjatuhkan tongkat memancing
10: pipa untuk berbagai industri makanan, pipa untuk mengangkut bahan
-
Auto Parts ASTM A513 Cold Rolling Tabung Baja Dilas dengan Produksi DOM
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
25mm Diameter Bright Annealing Tabung Baja Mulus untuk Sistem Hidrolik
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
Tabung Baja Hitam Fosfat Seamless Presisi untuk Sistem Hidraulik
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
Tabung Baja Galvanis Mulus Presisi DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
