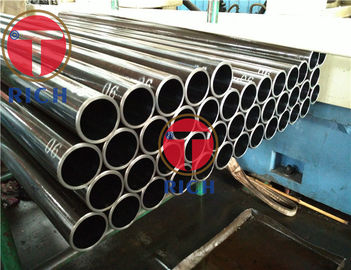

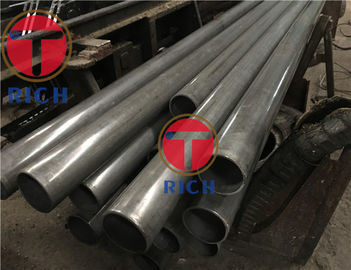

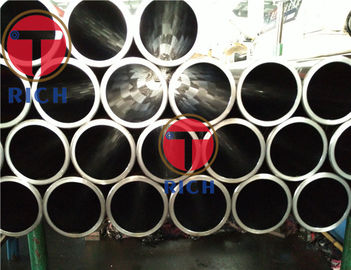

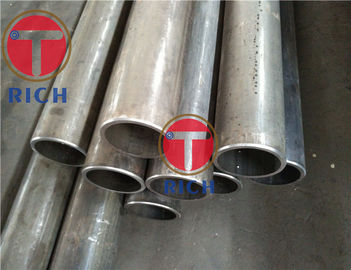

Dingin Diambil OD 420mm WT 50mm ASTM A179 Tabung Baja Seamless
Properti Dasar
Tempat Asal:
Zhejiang, Cina
Nama merek:
TORICH
Sertifikasi:
ISO14001:2008,TS16949
Nomor Model:
ASTM A179
Properti Perdagangan
Jumlah Pesanan Minimum:
5 Ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Kemampuan Penyediaan:
60000 Ton per tahun
Ringkasan Produk
ASTM A179 Tabung baja karbon rendah yang ditarik dingin tanpa jahitan untuk penukar panas dan kondensor Aplikasi: Untuk pembuatan pipa boiler Peralatan kapal Jangkauan ukuran: O.D. 5-420mm W.T. 0.5-50mm Panjang max12000mm Kelas Baja, Komposisi Kimia dan Sifat Mekanis: Standar Kelas Komposisi Kimia ...
Rincian produk
Menyoroti:
ASTM A179 Seamless Steel Tube
,WT 50mm Seamless Steel Tube
,OD 420mm Seamless Steel Pipe
Standard:
ASTM A179
Application:
Untuk Boiler, Superheater, Heat-Exchanger, Kondensor
Alloy Or Not:
Non-Paduan
Technique:
Tertarik dingin
Secondary Or Not:
Non-sekunder
Grade:
195GH P235GH P265GH 20MnNb6 16Mo3 St35.8 St45.8 15Mo3
O.D.:
5-420mm
W.T.:
0,5-50mm
Length:
Sesuai dengan kebutuhan pelanggan
Section Shape:
Bulat
Usage:
Pipa Boiler
Surface Treatment:
Mabuk
Deskripsi Produk
ASTM A179 Tabung baja karbon rendah yang ditarik dingin tanpa jahitan untuk penukar panas dan kondensor
Aplikasi:
- Untuk pembuatan pipa boiler
- Peralatan kapal
Jangkauan ukuran:
| O.D. | 5-420mm |
| W.T. | 0.5-50mm |
| Panjang | max12000mm |
Kelas Baja, Komposisi Kimia dan Sifat Mekanis:
| Standar | Kelas | Komposisi Kimia | Sifat Mekanis | |||||||||
| C | Ya. | Mn | P | S | Cr | Mo | MPa | MPa | L | T | ||
| EN10216-2 | 195GH | ≤ 0.13 | ≤ 0.35 | ≤ 0.70 | ≤ 0.025 | ≤ 0.020 | ≤ 0.30 | ≤ 0.08 | 320-440 | ≥195 | ≥27 | ≥ 25 |
| P235GH | ≤ 0.16 | ≤ 0.35 | ≤ 1.20 | ≤ 0.025 | ≤ 0.020 | ≤ 0.30 | ≤ 0.08 | 360-500 | ≥235 | ≥ 25 | ≥ 21 | |
| P265GH | ≤ 0.20 | ≤ 0.40 | ≤ 1.40 | ≤ 0.025 | ≤ 0.020 | ≤ 0.30 | ≤ 0.08 | 410-570 | ≥265 | ≥23 | ≥ 20 | |
| 20MnNb6 | ≤ 0.22 | 0.15-0.35 | 1.00-1.50 | ≤ 0.025 | ≤ 0.020 | 500-650 | ≥355 | ≥ 22 | ≥ 20 | |||
| 16Mo3 | 0.12-0.20 | ≤ 0.35 | 0.40-0.90 | ≤ 0.025 | ≤ 0.020 | ≤ 0.30 | 0.25-0.35 | 450-600 | ≥ 280 | ≥ 22 | ≥ 20 | |
| DIN17175 | St35.8 | ≤ 0.17 | 0.10-0.35 | 0.40-0.80 | ≤ 0.030 | ≤ 0.030 | / | / | 360-480 | ≥235 | ≥ 25 | |
| St45.8 | ≤ 0.21 | 0.10-0.35 | 0.40-1.20 | ≤ 0.030 | ≤ 0.030 | / | / | 410-530 | ≥255 | ≥ 21 | ||
| 15Mo3 | 0.12-0.20 | 0.10-0.35 | 0.40-0.80 | ≤ 0.030 | ≤ 0.030 | / | 0.25-0.35 | 460-600 | ≥ 270 | ≥ 20 | ||
Tampilkan Produk
FAQ
Berapa jangka waktu pembayaranmu?
1.T/T: 30% deposit di muka, saldo 70% dibayarkan sebelum pengiriman
2.30% uang muka, saldo 70% dibayarkan terhadap L / C pada saat melihat
3Setelah negosiasi.
Siapa pelangganmu?
1Pemasok, Distributor, Penjual grosir, Agen, Pedagang, Pengguna Akhir, dll
Berapa lama kau akan bereaksi terhadap permintaan kami?
1.Permintaan Anda akan diproses dalam waktu 24 jam pada hari kerja. Kutipan akan dikirim setelah rincian teknis dikonfirmasi oleh pelanggan!
Jika ada pertanyaan tentang keraguan Anda, jangan ragu untuk mengirim email Anda atau hubungi kami!
