42X18 33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Rincian produk
AISI 1045 Precision Ground Tubing
,400mm Ground Tubing Presisi
,ASTM A519 Precision Ground Shafting

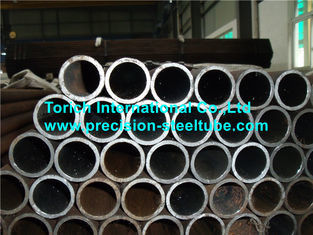

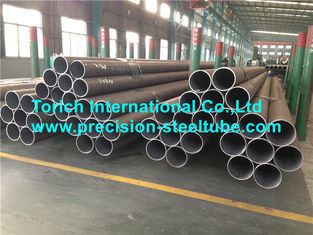

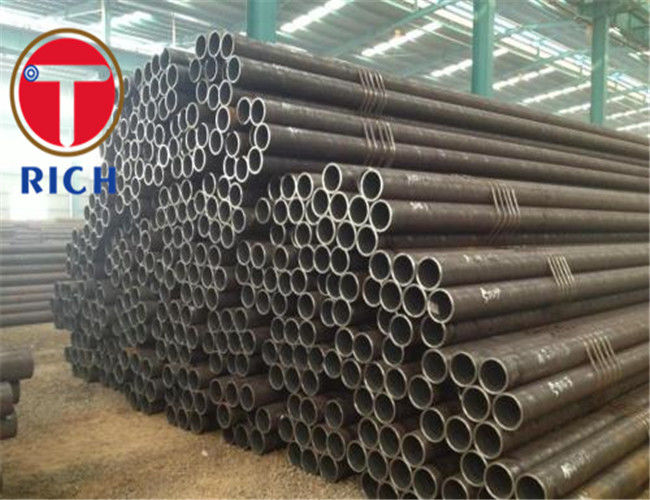

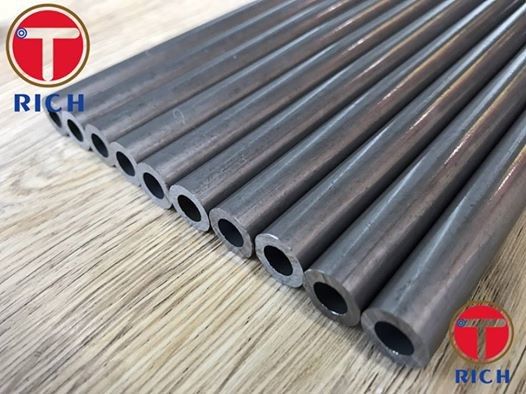

42X18 AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Torich adalah produsen profesional untuk presisi ground shafting, bahannya adalah baja karbon tinggi keras
1045,1020.1010 dll, digunakan secara luas di Pengolahan
Torich dapat memproduksi tabung logam presisi sesuai dengan standar dan bahan di bawah ini:
|
danard & Material | Baja karbon | Standar ASTM A519 | MT1010, MT1020, 1008, 1010, 1018, 1020, 1025, 1030, 1045, 1518 | |
| Standar JIS G3445 | STKM11A STKM12A STKM12B STKM12C STKM13A STKM13B STKM13C STKM14A STKM14B STKM14C STKM15A STKM15C STKM16A STKM16C STKM17A STKM17C STKM18A STKM18B STKM18C STKM19A STKM19C STKM20A | |||
| Standar JIS G3473 | STC370, STC440, STC510A, STC510, STC540, STC590A, STC590B | |||
| Standar DIN 2391 | St 35, St 45, St 52 | |||
| Standar EN 10297-1 | E235, E275, E315, E355, E470 | |||
| Standar EN 10305-1 | E215, E235, E355 | |||
| Standar EN 10305-4 | E215, E235, E355 | |||
| Standar BS 6323-3 | HFS 3, HFS 4, HFS 5, HFS 8 | |||
| NF A49-311 | TU 37-b, TU 52-b, TU 56-b, TU XC35 | |||
| Baja paduan | Standar ASTM A519 | 1345, 3140, 4130, 4135, 4140, 4150, 4320, 4340, 5120, 5130 | ||
| Standar JIS G3429 | STH11, 12 STH21, 122 STH31 | |||
| Standar JIS G3441 | SCR420TK, SCM415TK, SCM418TK, SCM420TK, SCM430TK, SCM440TK | |||
|
Ukuran | Jangkauan Ukuran | Toleransi | ||
| OD | 10-80 mm | -0,035 -- +0,045mm | ||
| ID | 5-74mm | ± 0,035mm | ||
| WT | 1-14mm | tergantung pada ukuran | ||
| Panjang | panjang acak atau tetap | +0-3,5mm | ||
| Kejujuran | 0.15:1000, 0.4:1000, 0.51000:1000 atau disesuaikan | |||
| Keropositas permukaan | Ra 0,02 ‰ 0,4 μm | |||
1045 bahanJuga disebut 45 Steel di Cina, disebut S45C di Jepang.1045 di Amerika, Jerman nama adalah 1.1192.
Hal ini digunakan untuk membuat bagian-bagian kecil yang dimurnikan dan dipanaskan dengan beban besar dan bagian-bagian normalisasi skala besar dengan
tegangan kecil,serta bagian-bagian yang keras di permukaan yang tidak memerlukan kekuatan inti yang tinggi, seperti pin, tiang panduan,
Perhatikan tangan
dan komponen lainnya.
Pengolahan panas
Rekomendasi suhu pengolahan panas: normalisasi 850°C, pemadam 840°C, tempering 600°C.
Baja 1045 adalah baja struktural karbon, dengan kekerasan rendah dan pemesinan mudah.
batang, tiang panduan, dll.,
tapi membutuhkan perawatan panas.
Baja 1045 memenuhi syarat jika kekerasan lebih besar dari HRC55 (hingga HRC62) setelah pemutihan dan sebelum tempering.
Kekerasan praktis yang tinggi adalah HRC55 (induksi quenching HRC58).
Penguji:
Mesin pengujian ketegangan, penguji kekerasan Rockwell, deteksi cacat eddy current, detektor komposisi kimia, magnetik
detektor cacat partikel, instrumen analisis metalografi, instrumen pengukuran kasar permukaan, mikrometer luar,
Indikator dial diameter dalam putih, kaliper vernier
-
