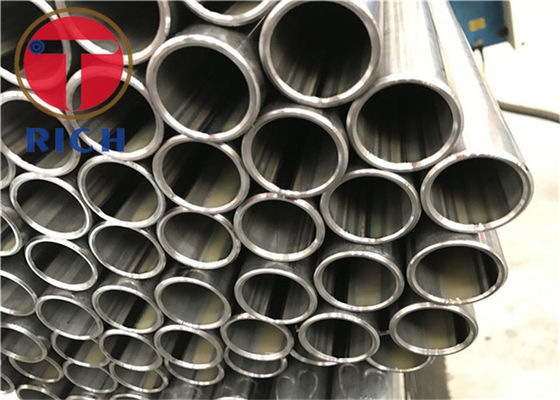

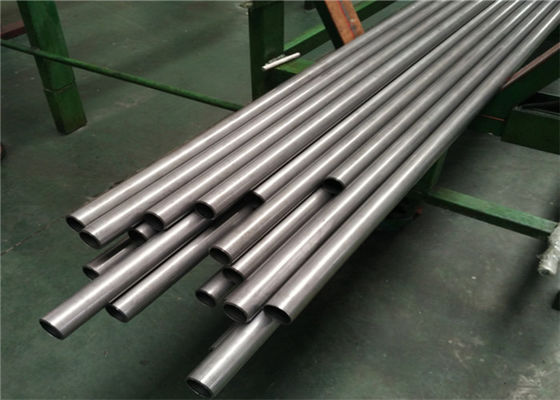

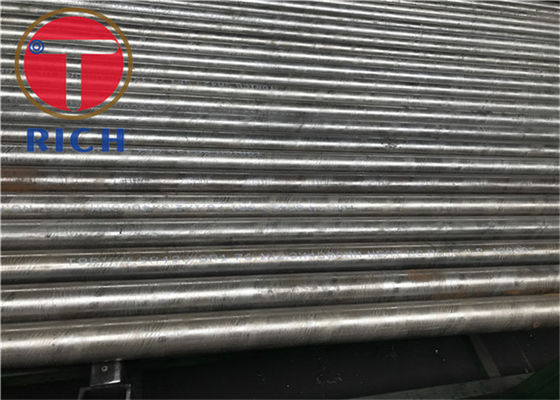

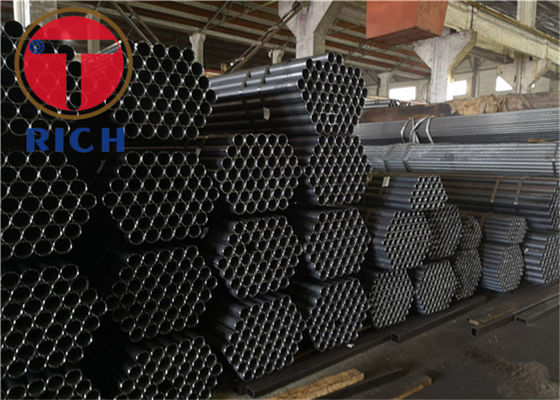

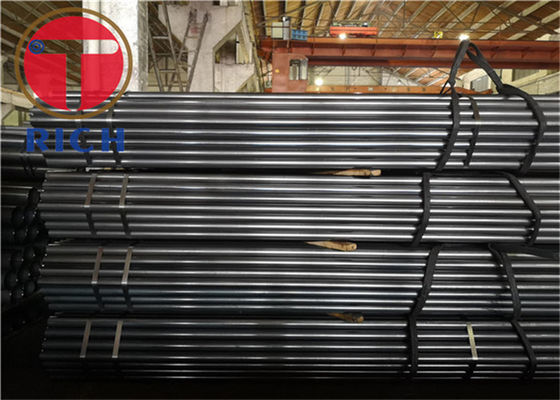

Penukar Panas OD 420mm ASTM A178 ERW Welded Steel Tube
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO9001 ISO14001
Nomor Model:
ASTMA178
Properti Perdagangan
Jumlah Pesanan Minimum:
5 Ton
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Ringkasan Produk
ASTM A178 ERW Boiler baja karbon las dan tabung superheater Aplikasi:untuk Boiler, Superheater, Heat Exchanger, Condenser, Boiler Flues, Flues Superheater dan ujungnya Produksi:Pengelasan Resistensi Listrik Jangkauan ukuran:O.D.:6-127mm W.T.:0.9-9.1mm L: sesuai dengan kebutuhan pelanggan Kelas baja ...
Rincian produk
Menyoroti:
ERW Welded Steel Tube
,ASTM A178 Welded Steel Tube
,OD 420mm Welded Steel Pipe
Product Name:
ASTM A178 ERW Welded Carbon Steel Boiler dan Super Heater Tubes
Key Word:
Tabung Baja Boiler
Technique:
ERW
Thickness:
0,5 - 50 mm
Outer Diameter:
5 - 420 mm
Section Shape:
Bulat
Surface Treatment:
Minyak
Alloy Or Not:
Non-Paduan
Deskripsi Produk
ASTM A178 ERW Boiler baja karbon las dan tabung superheater
Aplikasi:untuk Boiler, Superheater, Heat Exchanger, Condenser, Boiler Flues, Flues Superheater dan ujungnya
Produksi:Pengelasan Resistensi Listrik
Jangkauan ukuran:O.D.:6-127mm W.T.:0.9-9.1mm L: sesuai dengan kebutuhan pelanggan
Kelas baja dan komposisi kimia
| Elemen | Kelas A | Kelas C | Kelas D |
| C | 00.06 - 0.18 | ≤ 0.35 | ≤ 0.27 |
| Mn | 0.27 - 0.63 | ≤ 0.80 | 1.00 - 1.50 |
| P | ≤ 0.035 | ≤ 0.035 | ≤ 0.030 |
| S | ≤ 0.035 | ≤ 0.035 | ≤ 0.015 |
| Ya. | Aku tidak tahu. | Aku tidak tahu. | ≥ 0.10 |
| Sifat Mekanis | Kelas A | Kelas C | Kelas D |
| Kekuatan tegangan: min ksi[Mpa] | 47[325] | 47[415] | 70[485] |
| Titik Hasil: min ksi[Mpa] | 26[180] | 37[255] | 40[275] |
| Perpanjangan: | ≥ 35% | ≥ 30% | ≥ 30% |
Keuntungan Kompetitif:
100% kualitas dan harga yang baik
Layanan terbaik di bidang baja... termasuk layanan purna jual
Harga yang wajar, kami hanya ingin berbisnis dengan pembeli yang jujur.
Kita bisa memproduksi pipa ini sesuai standar Amerika.
Kami juga produsen, jadi kami dapat menyediakan produk sesuai dengan kebutuhan Anda
dengan cepat Perusahaan kami memiliki kekuatan teknis yang kaya dan peralatan produksi canggih dan dikoordinasikan
peralatan dan metode pengujian canggih.
ASTM A178 ERW Boiler baja karbon las dan tabung superheater
