Hidrolik ASTM A312 Cold Worked Seamless Welded Stainless Steel Tubes
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO14001:2008,TS16949
Nomor Model:
ASTM A312
Properti Perdagangan
Jumlah Pesanan Minimum:
1 TON
Harga:
USD 3800 - 5000 per Ton
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Kemampuan Penyediaan:
5000 Ton per Tahun
Ringkasan Produk
Hidraulik ASTM A312 Cold Worked Seamless Welded Stainless Steel Tubes Toleransi: D4/T3 NDT:Eddy Current atau Hydraulic Test atau UT Pengolahan panas:Cerah Annealed Penjaminan Mutu: ISO 9001&PED 97/23/EC bersertifikat dengan 100% pelacakan pada semua tabung instrumen dan laporan uji bahan ((EN 10204...
Rincian produk
Menyoroti:
ASTM A312 tabung baja las
,Tabung baja las yang diproses dingin
,Tabung baja las hidraulik
Product Name:
Hidrolik ASTM A312 Cold Worked Seamless Welded Stainless Steel Tubes
Technique:
Canai dingin
Section Shape:
Bulat
Length:
Sesuai permintaan pelanggan
Surface Treatment:
Terang anil, acar, diledakkan atau dipasivasi.
Alloy Or Not:
Apakah Alloy
Application:
Pipa Fluida, Pipa Gas Minyak
Standard:
ASTM A312 A213 A554 A249 A269
Deskripsi Produk
Hidraulik ASTM A312 Cold Worked Seamless Welded Stainless Steel Tubes
Toleransi: D4/T3
NDT:Eddy Current atau Hydraulic Test atau UT
Pengolahan panas:Cerah Annealed
Penjaminan Mutu: ISO 9001&PED 97/23/EC bersertifikat dengan 100% pelacakan pada semua tabung instrumen dan laporan uji bahan ((EN 10204/3.1B) mengiringi setiap pengiriman atas permintaan.
Aplikasi:
Saluran kontrol pipa di sumur minyak dan gas.
Tabung Instrumen
Jalur Injeksi Tabung Kimia
Saluran pipa pemanasan listrik atau pemanasan uap
Saluran pipa pemanas
Jangkauan ukuran (Unit:mm)
| OD 4.76 | WT 0,71 0,89 1.24 |
| OD 6 | WT 11.5 |
| OD 6.35 | WT 0,71 0,89 1,24 1.65 |
| OD 7.94 | WT 0,71 0,89 1,24 1.65 |
| OD 9.53 | WT 0,71 0,89 1,24 1.65 |
| OD 10 | WT 11.5 |
| OD 12 | WT 1 1.5 2 |
| OD 12.7 | WT 0,71 0,89 1,24 1,65 2.11 |
| OD 14 | WT 1 1.5 2 |
| OD 15.88 | WT 0,89 1,24 1,65 2.11 |
| OD 16 | WT 1 1.5 2 |
| OD 19.05 | WT 0,89 1,24 1,65 2.11 |
| OD 25.4 | WT 0,89 1,24 1,65 2.11 |

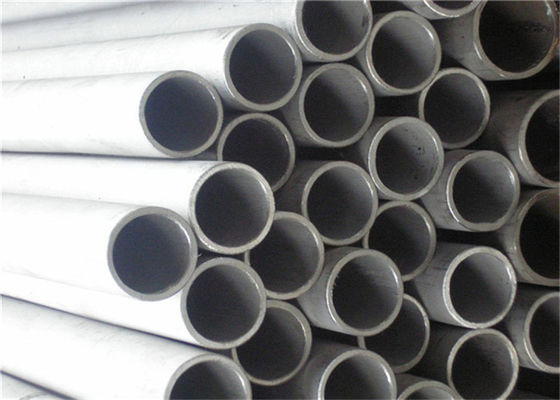

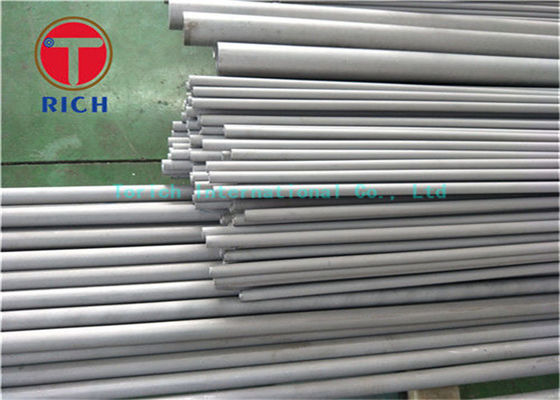

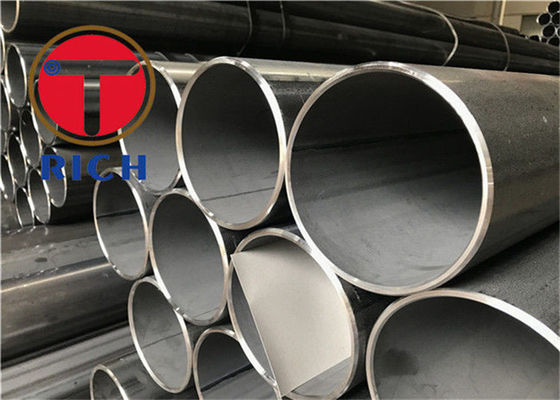

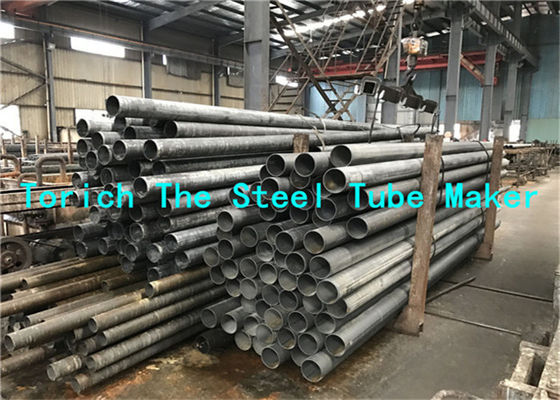

Pameran Produk
