ASTM A210 Seamless Carbon Steam Boiler Tubes untuk Boiler dan Superheater
Rincian produk
Superheater tabung ketel uap karbon tanpa jahitan
,Boiler tabung boiler uap karbon tanpa jahitan
,Pipa baja karbon tanpa jahitan ASTM A210
Aku tidak tahu.ASTM A210 tabung ketel uap karbon tanpa jahitan untuk boiler dan superheater
Aplikasi: Untuk boiler, superheater, pipa uap boiler
Teknik:Ditarik dingin
Kelas baja/bahan baja:A-1, C
Jangkauan ukuran:
| O.D. | 6-168mm |
| W.T. | 1-15mm |
| Panjang | maksimal 12000mm |
Karakteristik:
Konsentrisitas yang baik
Toleransi OD dan ID yang baik
Keakuratan Tinggi
Kualitas stabil
Kerontokan yang halus
TORICH Jaminan Kualitas
Komposisi Kimia:
| Kelas baja dan komposisi kimia: | |||||
| Kelas | C | Mn | P | S | Ya. |
| A-1 | ≤ 0.27 | ≤ 0.93 | ≤ 0.035 | ≤ 0.035 | ≥ 0.10 |
| C | ≤ 0.35 | 0.29-1.06 | ≤ 0.035 | ≤ 0.035 | ≥ 0.10 |
Proporsi mekanik:
| Kelas | Kekuatan tarik Mpa ((ksi) | Titik Yield Mpa ((ksi) | Perpanjangan |
| A-1 | ≥255 ((37) | ≥415 ((60) | ≥ 30% |
| C | ≥275 ((40) | ≥485 (70) | ≥ 30% |
| Toleransi untuk OD dan WT ((SA-450/SA-450M) | |||||
| OD dalam ((mm) | + | - | WT dalam mm) | + | - |
| <1''(25.4) | 0.10 | 0.10 | ≤1,1/2'(38.1) | 20% | 0 |
| 1'''1'1'1'25.4'38.1 | 0.15 | 0.15 | >1.1/2'(38.2) | 22% | 0 |
| > 1,1/2' ′ < 2' ′8 | 0.20 | 0.20 | |||
| 2' ′ < 2.1/2 ′ ((50.8 ′ 63.5) | 0.25 | 0.25 | |||
| 2.1/2''<3'(63.5'76.2) | 0.30 | 0.30 | |||
| 3''?? < 4' ((76.2 ️ 101.6) | 0.38 | 0.38 | |||
| 4' ′ < 7.1/2' ((101.6 ′ 190.5) | 0.38 | 0.64 | |||
| > 7.1/2 ′9′(190.5 ′228.6) | 0.38 | 1.14 | |||

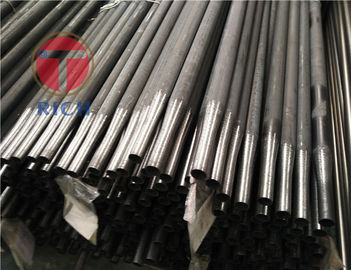

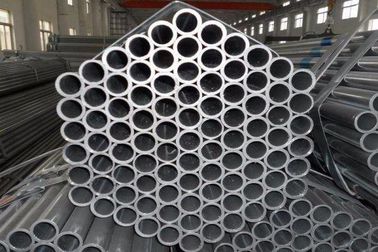

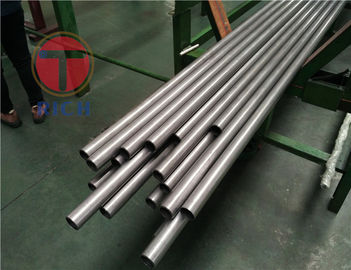

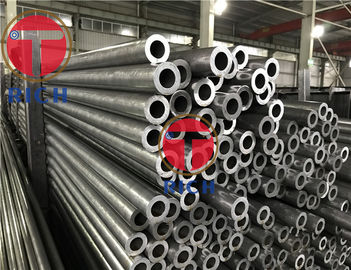

Pameran Produk:
FAQ
Berapa jangka waktu pembayaranmu?
1.T/T: 30% deposit di muka, saldo 70% dibayarkan sebelum pengiriman
2.30% uang muka, saldo 70% dibayarkan terhadap L / C pada saat melihat
3Setelah negosiasi.
Siapa pelangganmu?
1Pemasok, Distributor, Penjual grosir, Agen, Pedagang, Pengguna Akhir, dll
Berapa lama kau akan bereaksi terhadap permintaan kami?
1.Permintaan Anda akan diproses dalam waktu 24 jam pada hari kerja. Kutipan akan dikirim setelah rincian teknis dikonfirmasi oleh pelanggan!
Jika ada pertanyaan tentang keraguan Anda, jangan ragu untuk mengirim email Anda atau hubungi kami!
