SUS316L Kondensator Industri Makanan Medis Stainless Seamless Precision Capillary Steel Tubes
Rincian produk
Tabung baja kapiler presisi tanpa jahitan medis
,SUS316L tabung baja kapiler presisi tanpa jahitan
,SUS316L tabung kapiler baja tahan karat
SUS316L Kondensator Industri medis dan makanan Stainless Steel Tubes Kapiler Precision Seamless
Aplikasi: Untuk industri medis, industri makanan, kondensor
Teknik:Ditarik dingin
Kelas baja/bahan baja:U20103 U20203 L03451
Jangkauan ukuran:
| O.D. | 0.4-8.0mm |
| W.T. | 0.05-0.9mm |
| Panjang | Menurut kebutuhan pelanggan |
Karakteristik:
Konsentrisitas yang baik
Toleransi OD dan ID yang baik
Keakuratan Tinggi
Kualitas stabil
Kerontokan yang halus
TORICH Jaminan Kualitas
Komposisi Kimia:
| Kode digital tunggal | Kelas | Komponen Kimia (Fraksi Kualitas) /% | |||||||
| C | Ya. | Mn | P | S | Cr | Tidak | Cu | ||
| Tidak lebih dari | |||||||||
| U20103 | 10A | 0.07 ~ 0.13 | 0.17 ~ 0.37 | 0.35 ~ 0.65 | 0.030 | 0.030 | 0.15 | 0.30 | 0.20 |
| U20203 | 20A | 0.17 ~ 0.23 | 0.17 ~ 0.37 | 0.35 ~ 0.65 | 0.030 | 0.030 | 0.25 | 0.30 | 0.20 |
| L03451 | Q345A | ≤ 0.20 | ≤ 0.55 | 1.00 ~ 1.60 | 0.030 | 0.030 | 0.30 | 0.30 | 0.20 |
Proporsi mekanik:
| Kelas | Kekuatan perpanjangan MPa | Titik Yield MPa | Perpanjangan % |
| Tidak lebih dari | |||
| 10A | 335 ~ 470 | 205 | 30 |
| 20A | 390 ~ 540 | 245 | 25 |
| Q345A | 470 ~ 630 | 345 | 22 |

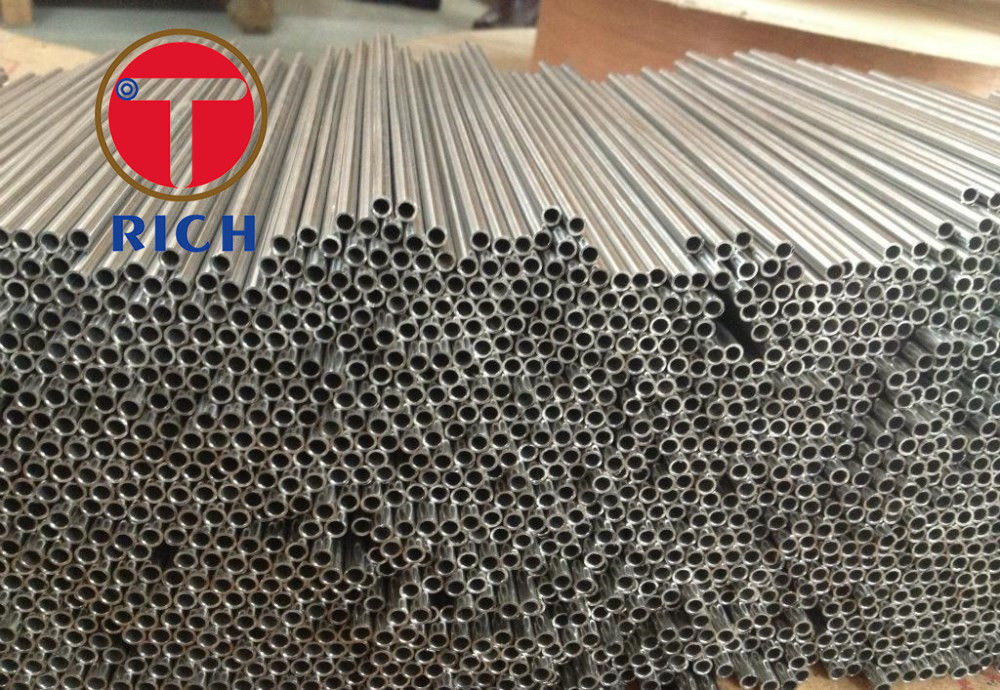

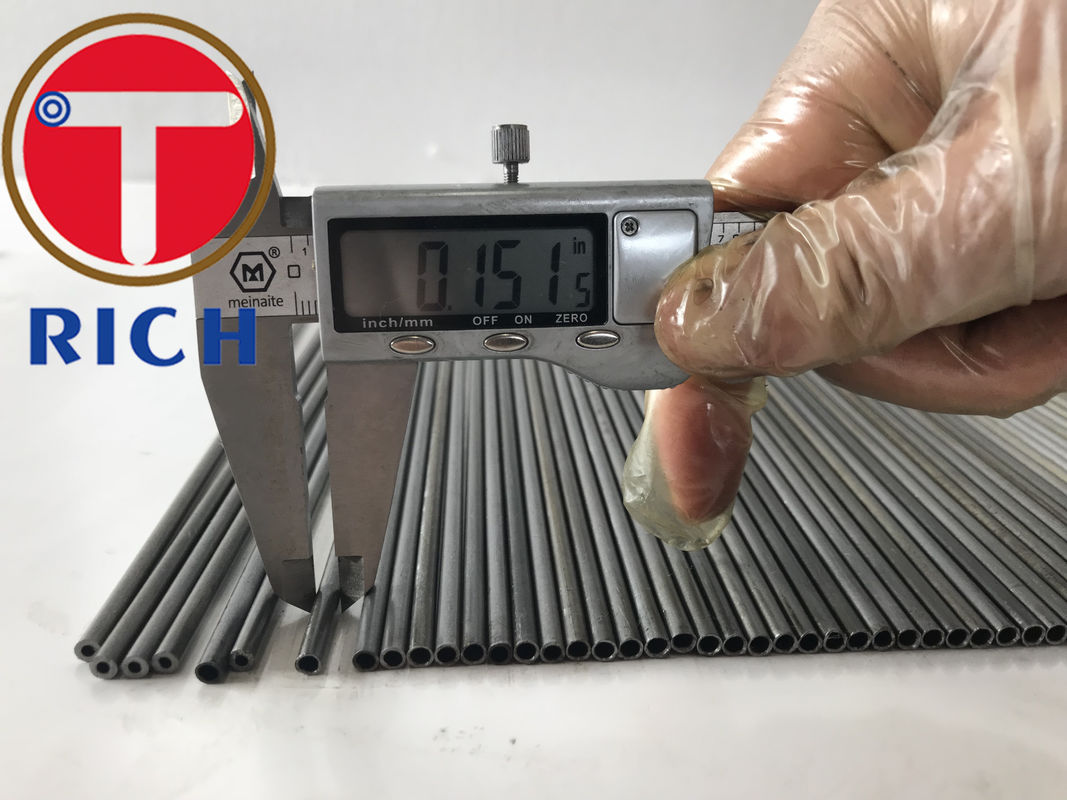

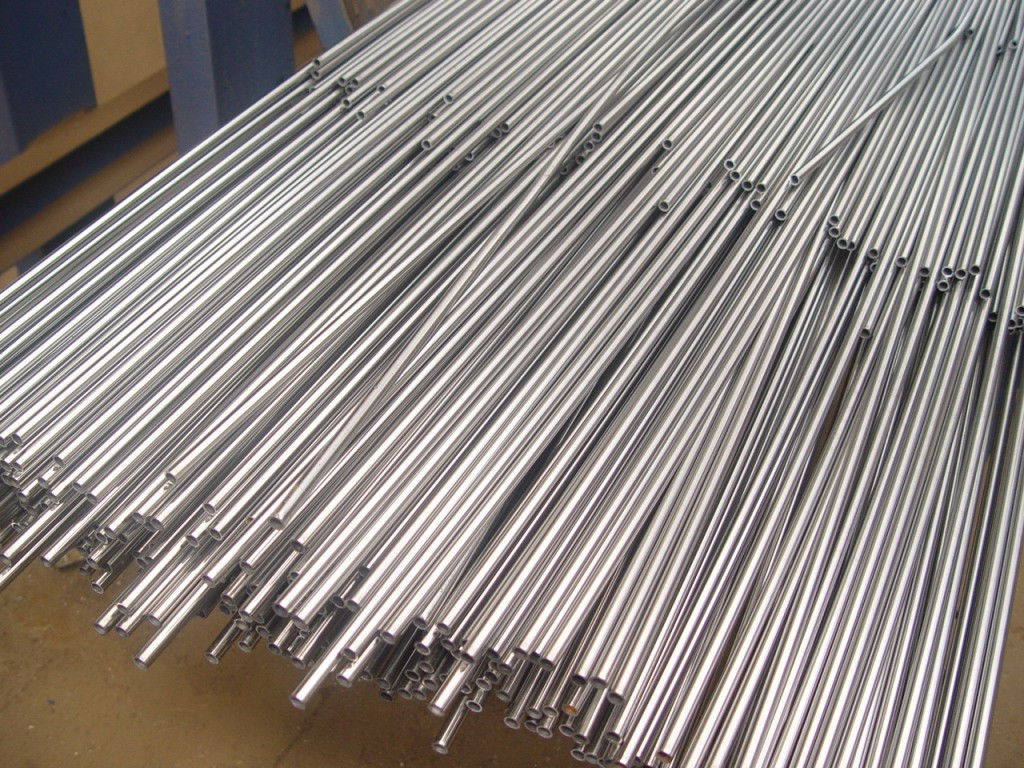

Pameran Produk:
FAQ
Berapa jangka waktu pembayaranmu?
1.T/T: 30% deposit di muka, saldo 70% dibayarkan sebelum pengiriman
2.30% uang muka, saldo 70% dibayarkan terhadap L / C pada saat melihat
3Setelah negosiasi.
Siapa pelangganmu?
1Pemasok, Distributor, Penjual grosir, Agen, Pedagang, Pengguna Akhir, dll
Berapa lama kau akan bereaksi terhadap permintaan kami?
1.Permintaan Anda akan diproses dalam waktu 24 jam pada hari kerja. Kutipan akan dikirim setelah rincian teknis dikonfirmasi oleh pelanggan!
Jika ada pertanyaan tentang keraguan Anda, jangan ragu untuk mengirim email Anda atau hubungi kami!
