Tabung Boiler Astm A192 Baja Karbon Seamless
Rincian produk
Steel Astm A192 Boiler Tubes
,Seamless Astm A192 Boiler Tubes
,Carbon Astm A192 Boiler Tubes
ASTM A192 tabung boiler baja karbon tanpa jahitan untuk layanan tekanan tinggi
Aplikasi: Untuk boiler, superheater, pipa uap boiler
Teknik:Ditarik dingin
Kelas baja/bahan baja:SA-450/SA-450M
Jangkauan ukuran:
| O.D. | 6-168mm |
| W.T. | 1-15mm |
| Panjang | maksimal 12000mm |
Karakteristik:
Konsentrisitas yang baik
Toleransi OD dan ID yang baik
Keakuratan Tinggi
Kualitas stabil
Kerontokan yang halus
TORICH Jaminan Kualitas
Komposisi Kimia:
| C | 0.06-0.18 |
| Mn | 0.27-0.63 |
| P | ≤ 0.035 |
| S | ≤ 0.035 |
| Ya. | ≤ 0.25 |
Proporsi mekanik:
| Stretch Stretch | min ksi[Mpa] 47[325] |
| Titik Yield | Min ksi[Mpa] 26[180] |
| Perpanjangan | ≥ 35% |
Kekerasan:
| Kekerasan Brinell | Nomor Kekerasan Rockwell | |
| WT≥0,200in ((5,1mm) | WT<0,200in ((5,1mm) | |
| 137HRB | 77HRB | |
| Toleransi untuk OD dan WT ((SA-450/SA-450M) | |||||
| OD dalam ((mm) | + | - | WT dalam mm) | + | - |
| <1''(25.4) | 0.10 | 0.10 | ≤1,1/2'(38.1) | 20% | 0 |
| 1'''1'1'1'25.4'38.1 | 0.15 | 0.15 | >1.1/2'(38.2) | 22% | 0 |
| > 1,1/2' ′ < 2' ′8 | 0.20 | 0.20 | |||
| 2' ′ < 2.1/2 ′ ((50.8 ′ 63.5) | 0.25 | 0.25 | |||
| 2.1/2''<3'(63.5'76.2) | 0.30 | 0.30 | |||
| 3''?? < 4' ((76.2 ️ 101.6) | 0.38 | 0.38 | |||
| 4' ′ < 7.1/2' ((101.6 ′ 190.5) | 0.38 | 0.64 | |||
| > 7.1/2 ′9′(190.5 ′228.6) | 0.38 | 1.14 | |||

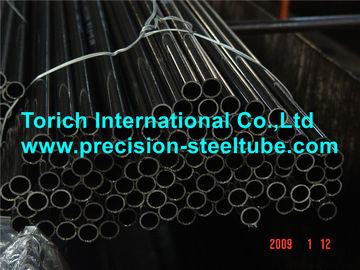

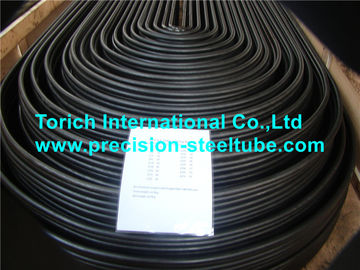

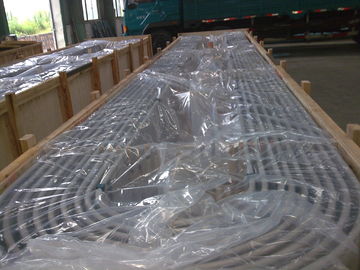

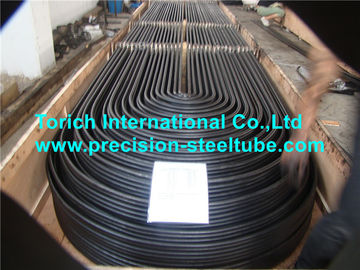

Pameran Produk:
FAQ
Berapa jangka waktu pembayaranmu?
1.T/T: 30% deposit di muka, saldo 70% dibayarkan sebelum pengiriman
2.30% uang muka, saldo 70% dibayarkan terhadap L / C pada saat melihat
3Setelah negosiasi.
Siapa pelangganmu?
1Pemasok, Distributor, Penjual grosir, Agen, Pedagang, Pengguna Akhir, dll
Berapa lama kau akan bereaksi terhadap permintaan kami?
1.Permintaan Anda akan diproses dalam waktu 24 jam pada hari kerja. Kutipan akan dikirim setelah rincian teknis dikonfirmasi oleh pelanggan!
Jika ada pertanyaan tentang keraguan Anda, jangan ragu untuk mengirim email Anda atau hubungi kami!
