Food Grade Tubing ASTM A270 Sanitary Stainless Steel Welded Tubes
Rincian produk
Tabung las baja tahan karat sanitasi
Tabung kelas makanan ASTM A270 Tabung las baja tahan karat sanitasi
Deskripsi produk:
Spesifikasi ini mencakup kelas dari seamless, welded,dan tabung sanitasi austenit dan ferritic/austenitic stainless steel yang dilas keras dan dilas dingin yang dimaksudkan untuk digunakan dalam industri susu dan makanan dan memiliki finishing permukaan khususKualitas farmasi dapat diminta, sebagai persyaratan tambahan.
Standar:ASTM A270
Bahan:TP304/304L, TP316/316L bahan lain juga tersedia.
Jangkauan ukuran:O.D.: 25 - 300 mm W.T.: 5 - 40 mm Panjang: Sesuai permintaan klien.
Komposisi Kimia
| Elemen | TP304 | TP304L | TP316 | TP316L | 2205 |
| C, maksimal | 0.08 | 0.035 | 0.08 | 0.035 | 0.030 |
| Mn, maksimal | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
| P, maksimal | 0.045 | 0.045 | 0.045 | 0.045 | 0.030 |
| S, maksimal | 0.030 | 0.030 | 0.030 | 0.030 | 0.020 |
| Ya, maksimal. | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Tidak | 8.0-11.0 | 8.0-12.0 | 10.0-14.0 | 10.0-14.0 | 4.5-6.5 |
| Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 22.0-23.0 |
| Mo | | | 2.0-3.0 | 2.0-3.0 | 3.0-3.5 |
| N | | | | | 0.14-0.20 |
| Cu | | | | | |
Persyaratan ketegangan dan kekerasan
| Kelas | Penunjukan UNS | Kekuatan tarik min, ksi [MPa] | Kekuatan yield min, ksi [MPa] | Elongasi dalam 2 in Min, % | Jumlah Kekerasan Rockwell, maksimal |
| TP304 | S30400 | 75 [515] | 30 [205] | 35 | B90 |
| TP304L | S30403 | 70 [485] | 25 [170] | 35 | B90 |
| TP316 | S31600 | 75 [515] | 30 [205] | 35 | B90 |
| TP316L | S31603 | 70 [485] | 25 [170] | 35 | B90 |
| 2205 | S32205 | 95 [655] | 70 [485] | 25 | C30.5 |

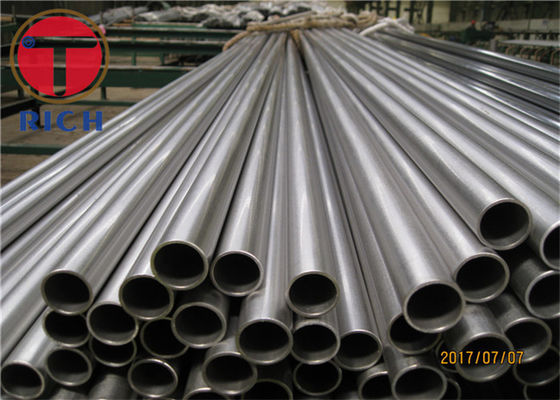

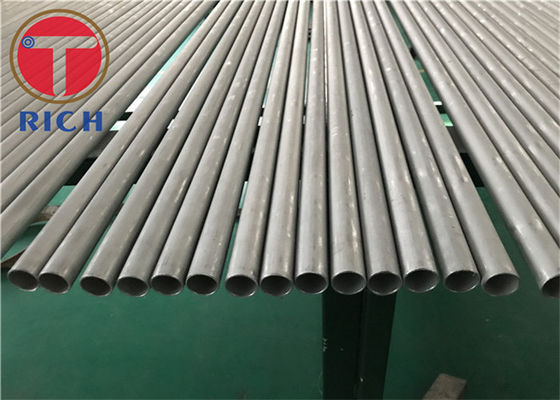

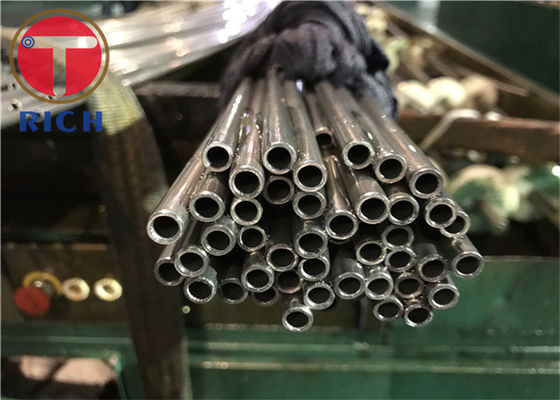

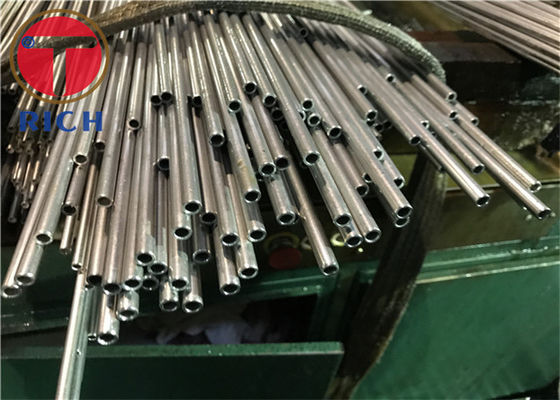

Pameran Produk
Kemasan dan Pengiriman:
FAQ:
P:Apakah Anda perusahaan dagang atau produsen?
A: Penemu profesional pipa baja, produsen dan penyedia solusi
T: Berapa lama waktu pengiriman Anda?
A: Umumnya adalah 7-14 hari jika barang ada di stok. atau 30-60 hari jika barang tidak ada di stok, tergantung pada kuantitas.
T: Apakah Anda menyediakan sampel? apakah gratis atau tambahan?
A: Ya, kami bisa menawarkan sampel gratis tetapi perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A: Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, pls merasa bebas untuk menghubungi kami.
