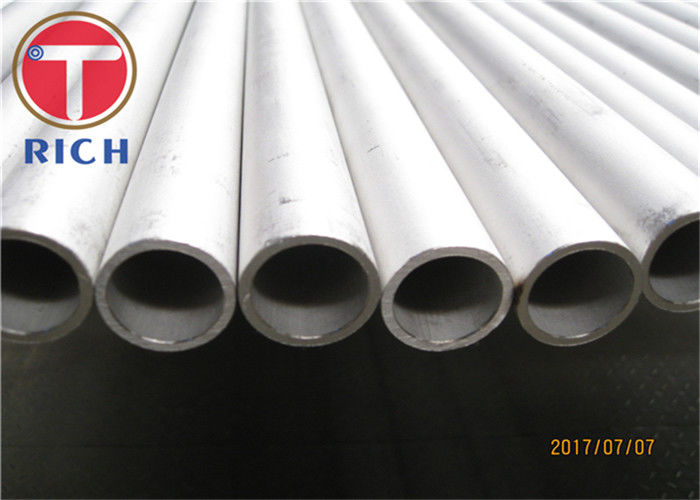

Tabung Feritik Seamless And Welded ASTM A268 TP410 Stainless Steel Tube
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO9001, ISO14001, TS16949
Nomor Model:
ASTM A268
Properti Perdagangan
Jumlah Pesanan Minimum:
2 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union,
Kemampuan Penyediaan:
5000 Ton per Tahun
Ringkasan Produk
Ferritic Seamless And Welded Tubing ASTM A268 TP410 Stainless Steel Tube Deskripsi Produk Standar ASTM A268 Bahan TP405, TP410, TP430, TP446-1, TP446-2,bahan lain juga tersedia O.D. 3.2 - 200 mm W.T. 0.5 - 30 mm Panjang Maksimal 12000 mm Komposisi Kimia Kelas UNS C Mn P S Tidak Cr Mo N TP410 S41000 ...
Rincian produk
Menyoroti:
Tabung baja tahan karat ferritik
,ASTM A268 tabung baja tahan karat
Product Name:
Tabung Feritik Seamless And Welded ASTM A268 TP410 Stainless Steel Tube
Certification:
ISO
Standard:
ASTM
Type:
MUDAH DAN DILAS
Steel Grade:
TP405, TP410, TP409, TP410S, TP430, dll.
Shape:
Bulat
Surface:
Mabuk
Finish:
object(Yaf_Exception_LoadFailed_Controller)#14 (8) {
["string":"Exception":private]=>
string(0)
Deskripsi Produk
Ferritic Seamless And Welded Tubing ASTM A268 TP410 Stainless Steel Tube
Deskripsi Produk
| Standar | ASTM A268 |
| Bahan | TP405, TP410, TP430, TP446-1, TP446-2,bahan lain juga tersedia |
| O.D. | 3.2 - 200 mm |
| W.T. | 0.5 - 30 mm |
| Panjang | Maksimal 12000 mm |
Komposisi Kimia
| Kelas | UNS | C | Mn | P | S | Tidak | Cr | Mo | N |
| TP410 | S41000 | 0.15 maksimal | 1.00 maksimal | 0.040 maksimal | 0.030 maksimal | --- | 11.5-13.5 | --- | --- |
| | S42035 | 0.08 maksimal | 1.00 maksimal | 0.045 maksimal | 0.030 maksimal | 1.0-2.5 | 13.5-15.5 | --- | 0.30-0.50 |
| TP430 | S43000 | 0.12 maksimal | 1.00 maksimal | 0.040 maksimal | 0.030 maksimal | --- | 16.0-18.0 | --- | --- |
| TP446-1 | S44600 | 0.025 maksimal | 1.50 maksimal | 0.040 maksimal | 0.030 maksimal | ≤ 0.75 | 23-27 | --- | 0.025 maksimal |
| TP446-2 | S44600 | 0.012 maksimal | 1.50 maksimal | 0.040 maksimal | 0.030 maksimal | ≤ 0.50 | 23-27 | --- | 0.025 maksimal |
| 26-3-3 | S44660 | 0.030 maksimal | 1.50 maksimal | 0.040 maksimal | 0.030 maksimal | 1.0-3.5 | 25-28 | --- | 0.040 maksimal |
Persyaratan ketegangan dan kekerasan
| Kelas | UNS | Kekuatan tarik, min ksi MPa | Kekuatan peledak, min ksi MPa | Perpanjangan dalam 2 inci atau 50 mm, min % | Skala Kekerasan Rockwell B |
| TP410 | S41000 | 60 (415) | 30 (205) | 20 | 95 |
| | S42035 | 80 (550) | 55 (380) | 16 | 88 |
| TP430 | S43000 | 60 (415) | 35 (240) | 20 | 90 |
| TP446-1 | S44600 | 70 (485) | 40 (275) | 18 | 95 |
| TP446-2 | S44600 | 65 (450) | 40 (275) | 20 | 95 |
| 26-3-3 | S44660 | 85 (585) | 65 (450) | 20 | 25 |
Karakteristik:
Konsentrisitas yang baik
Kualitas permukaan yang baik
Toleransi OD dan ID yang baik
Keakuratan Tinggi
Kualitas stabil
Lempar
Pengiriman & Kemasan
FAQ
T: Apakah Anda perusahaan dagang atau produsen?
A: Penemu profesional pipa baja, produsen dan penyedia solusi
T: Berapa lama waktu pengiriman Anda?
A: Umumnya adalah 7-14 hari jika barang ada di stok. atau 30-60 hari jika barang tidak ada di stok, tergantung pada kuantitas.
T: Apakah Anda menyediakan sampel? apakah gratis atau tambahan?
A: Ya, kami bisa menawarkan sampel gratis tetapi perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A: Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, pls merasa bebas untuk menghubungi kami.
