Industri 8.4g / cm3 ASTM B444 Inconel 625 Pipa Seamless
Rincian produk

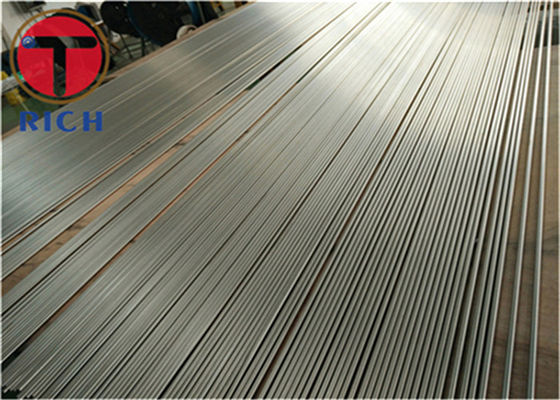

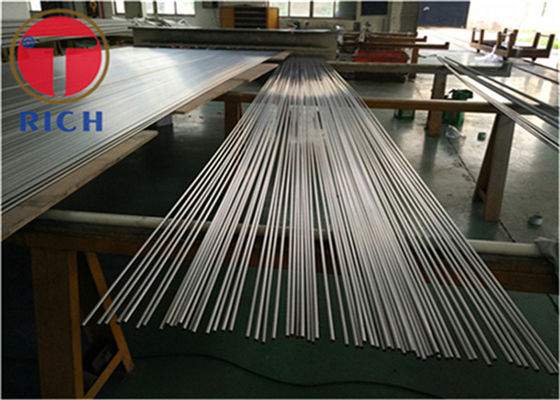

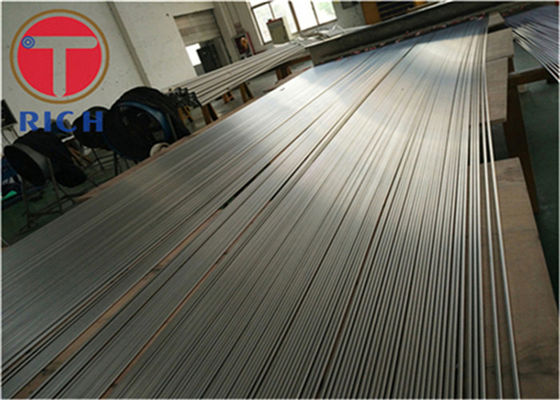

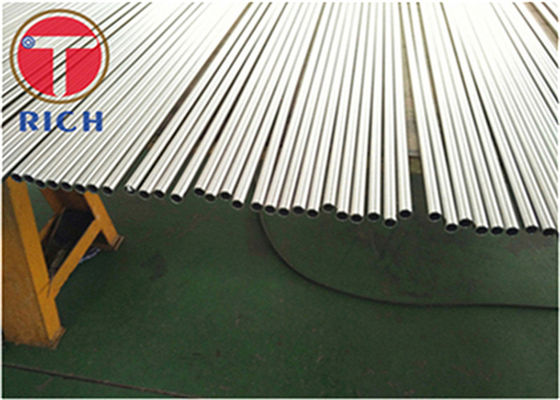

ASTM B444 Inconel 625 Seamless Pipe
,8.4g / Cm3 Inconel 625 Seamless Pipe
,8.4g / Cm3 Inconel 625 tubing
ASTM B444 Inconel Alloy 625 Pipa dan Tabung Tanpa Jahit
Inconel 625adalah paduan nikel tahan korosi dan oksidasi karena kekuatan tinggi dan ketahanan korosi berbasis air yang sangat baik. Kekuatan dan ketahanan yang sangat baik disebabkan oleh penambahan niobium,yang bersama dengan molibdenum mengeraskan matriks paduan.
Inconel 625adalah jenis paduan dengan kepadatan 8,4 g / cm3, titik leleh 1290-1350 °C, ketahanan yang sangat baik terhadap korosi asam anorganik,dan ketahanan korosi yang sangat baik terhadap berbagai media korosif dalam lingkungan oksidasi dan reduksi.
Paduan 625 menunjukkan ketahanan korosi yang sangat baik dalam banyak media.
Aplikasi:
- Proses suhu tinggi
- Bidang kimia dan petrokimia
- Bidang makanan
- Pembangkit listrik
Daftar bahan:
Incoloy 800, Incoloy 800H, Incoloy 825, Inconel 600, Hastelloy B, Hastelloy B2, Hastelloy C, Hastelloy C276,
Hastelloy C4, Hastelloy C22, Inconel 625, Inconel 718, Monel 400, Nikel 200
Kelas yang setara
| GB/T | UNS | NB/T47047 | JIS | W.Nr |
| GH3625 | N06625 | NS3306 | NCF625 | 2.4856 |
Kimia
| Cr | Mo | Co. | Nb+Ta | Al | Ti | C | Fe | Mn | Ya. | P | S | Tidak | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 20 | 8 | ... | 3.15 | ... | ... | ... | ... | ... | ... | ... | ... | Saldo |
| Maksimal | 23 | 10 | 1 | 4.15 | .4 | .4 | .1 | 5 | .5 | .5 | .015 | .015 | Saldo |
ASTM (American Society for Testing and Materials) untuk berbagai produk yang dibuat
| Tabung Las | Lembar/Plat | Bar | Mempertukarkan | Pasang | Kawat | |||
|---|---|---|---|---|---|---|---|---|
| B444 | B705 | B444 | B704 | B443 | B446 | ️ | ️ | ️ |
-
