ASTM A335 Pipa Boiler Baja Alloy Ferritik Tanpa Jajar
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Nomor Model:
ASTM A335
Properti Perdagangan
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Ringkasan Produk
ASTM A335 Pipa Boiler Baja Ferit-Alloy Tanpa Jajar Aplikasi:Untuk boiler, superheater, pipa uap boiler Teknik:Ditarik dingin Paduan atau tidak: Paduan Sekunder atau tidak: Non-Sekunder Kelas baja/bahan baja:P5 P9 P11 P12 P21 P22 P91 Jangkauan ukuran: O.D. 6-420mm W.T. 1-50 mm Panjang maksimal ...
Rincian produk
Menyoroti:
Pipa Boiler Ferritic Alloy-Steel yang Tidak Berurutan
,ASTM A335 pipa boiler baja paduan
,Pipa Boiler Baja Alloy Tanpa Sambungan
Product Name:
Pipa Boiler Baja Paduan Feritik ASTM A335 Seamless
Model No:
ASTM A335
Technique:
Dingin Diambil
Surface Treatment:
Mabuk
Type:
Mulus
Alloy Or Not:
Paduan
Section Shape:
Bulat
Application:
Pipa Boiler, Pipa Boiler
Grade:
P5 P9 P11 P12 P21 P22 P91 P92
Keyword:
Tabung Baja Karbon Seamless
Deskripsi Produk
ASTM A335 Pipa Boiler Baja Ferit-Alloy Tanpa Jajar
Aplikasi:Untuk boiler, superheater, pipa uap boiler
Teknik:Ditarik dingin
Paduan atau tidak: Paduan
Sekunder atau tidak: Non-Sekunder
Kelas baja/bahan baja:P5 P9 P11 P12 P21 P22 P91
Jangkauan ukuran:
| O.D. | 6-420mm |
| W.T. | 1-50 mm |
| Panjang | maksimal 12000mm |
Karakteristik:
Konsentrisitas yang baik
Toleransi OD dan ID yang baik
Keakuratan Tinggi
Kualitas stabil
Kerontokan yang halus
TORICH Jaminan Kualitas
Komposisi Kimia:
| Kelas baja dan komposisi kimia: | |||||||
| Kelas baja | C | Mn | P | S | Ya. | Cr | Mo |
| maksimal | maksimal | maksimal | maksimal | maksimal | menit | ||
| P5 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 4.00-6.00 | 0.45-0.65 |
| P9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.90-1.10 |
| P11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0 .65 |
| P12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 | 0.80-1.25 | 0.44-0.65 |
| P21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 2.65-3.35 | 0.80-1.06 |
| P22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 1.90-2.60 | 0.87-1.13 |
| P91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | 0.20-0.50 | 8.00-9.50 | 0.85-1.05 |
| P92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | 0.50 | 8.50-9.50 | 0.30-0.60 |
Proporsi mekanik:
| Kelas baja | Kekuatan tarik | Kekuatan Hasil | Perpanjangan | Kekerasan.Max. | ||
| Min.ksi [Mpa] | Min.ksi [Mpa] | % | Brinell/Vickers | Rockwell | ||
| P1, P2 | 55[380] | 30[205] | 20 | |||
| P12 | 60[415] | 32[220] | 20 | |||
| P23 | 74[510] | 58[400] | 20 | |||
| P91 | 85[585] | 60[415] | 30 | 250 HB/265 HV | 25 HRC | |
| P92, P911 | 90[620] | 64[440] | 30 | 250 HB/265 HV | 25 HRC | |
| P122 | 90[620] | 58[400] | 30 | 250 HB/265 HV | 25 HRC | |

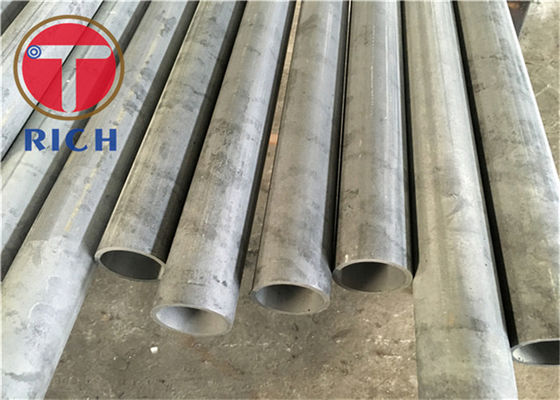

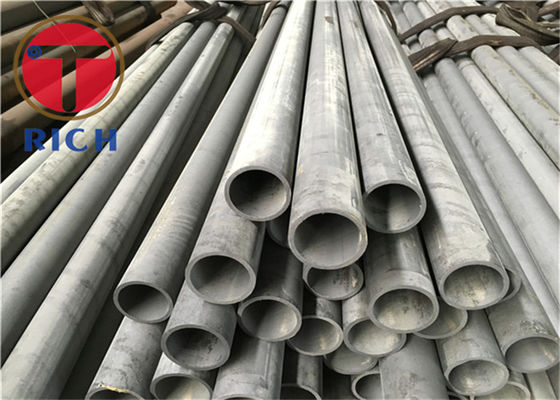

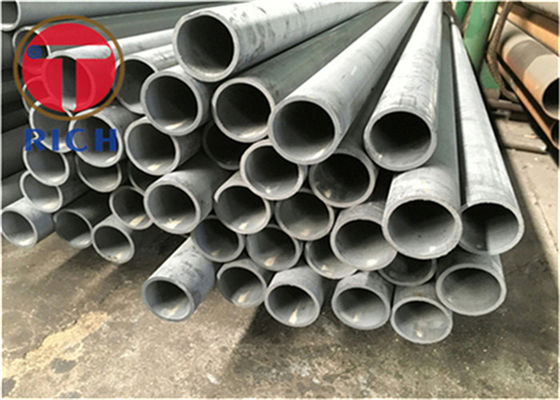

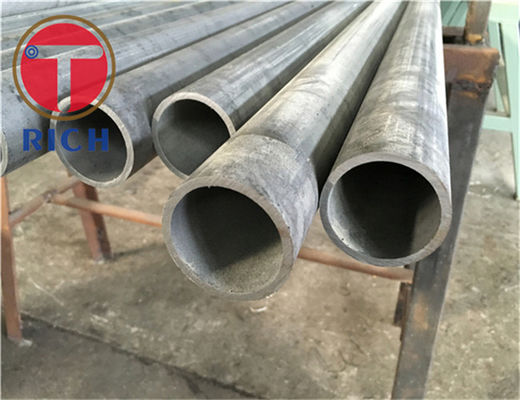

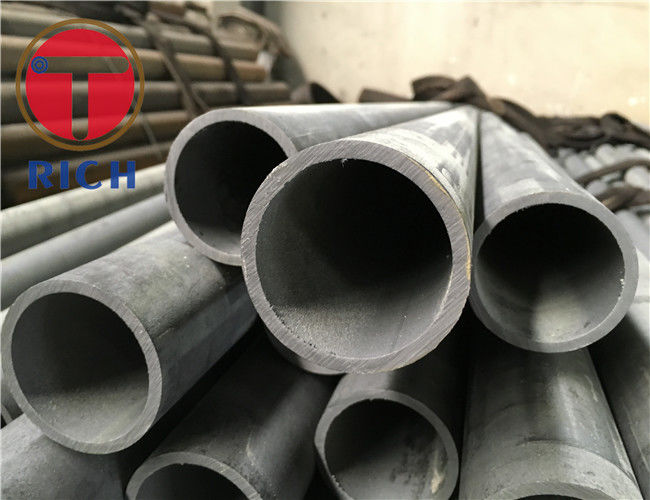

Gambar produk:
Pengantar Perusahaan:
Kemasan dan Pengiriman:
FAQ:
T: Apakah Anda perusahaan dagang atau produsen?
A: Kami adalah produsen pipa baja profesional.
T: Berapa lama waktu pengiriman Anda?
A: Umumnya dibutuhkan 7-14 hari jika barang ada di stok atau 30-60 hari jika tidak ada stok, ini terutama tergantung pada kuantitas.
Q: Apakah Anda menyediakan sampel gratis?
A: Ya,kami bisa menawarkan sampel gratis tetapi perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A:Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, pls merasa bebas untuk menghubungi kami.
