Pipa dan Tubing ASTM A790 Super Duplex 2507
Properti Dasar
Tempat Asal:
Zhejiang, Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001 ISO14001 TS16949
Nomor Model:
ASTM A790
Properti Perdagangan
Jumlah Pesanan Minimum:
500 KG
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
3000 ton per bulan
Ringkasan Produk
ASTM A790 Super Duplex 2507 Pipa dan Tabung 2507 adalah baja tahan karat austenit ferritik (duplex) dengan ketahanan yang sangat baik terhadap korosi lubang, korosi celah dan korosi seragam. Diameter 6mm ~ 860mm Ketebalan dinding 0.5mm~80mm Panjang Setiap panjang antara 1 ~ 15 meter, akan disesuaika...
Rincian produk
Menyoroti:
2507 Super Duplex Pipe
,ASTM A790 Super Duplex Pipe
,ASTM A790 Super Duplex Tubing
Product Name:
Pipa dan Tubing ASTM A790 Super Duplex 2507
Keyword:
Pipa duplex 2507
Application:
High-pressure steam boiler, Heat exchanger, liquid-transportation, Condensator, electric power, a
Material:
SS201 / 301/302/321/304 / 304L / 314/316 / 316L / 310 / 310S / 430 Duplex UNS S31803 / S32205 / S327
Type:
Mulus atau dilas
Shape:
Bulat
Surface:
Permukaan acar, atau permukaan anil cerah, akan disesuaikan
Length:
Panjang apapun antara 1 ~ 15 meter, akan disesuaikan
OD:
6mm ~ 860mm
WT:
0.5mm ~ 80mm
Deskripsi Produk
ASTM A790 Super Duplex 2507 Pipa dan Tabung
2507 adalah baja tahan karat austenit ferritik (duplex) dengan ketahanan yang sangat baik terhadap korosi lubang, korosi celah dan korosi seragam.
| Diameter | 6mm ~ 860mm |
| Ketebalan dinding | 0.5mm~80mm |
| Panjang | Setiap panjang antara 1 ~ 15 meter, akan disesuaikan |
| Standar | ASME SA213, A312, A269, A688, A789, A790, EN 10216-5 dll. |
| Permukaan | Permukaan acar, atau permukaan annealed cerah akan disesuaikan |
| Bahan Lainnya | 304, 304L, 316, 316L, 317, 317L, 321, 321H, 310, s31803, s32205, s32750 |
Aplikasi:
- industri minyak bumi dan gas alam;
- platform minyak pemecahan batuan lepas pantai (tabung penukar panas,
- sistem pengolahan air dan pasokan air,
- sistem perlindungan kebakaran,
- sistem semprot air,
- sistem stabilisasi air;
- peralatan petrokimia;
- peralatan desalinasi (dan pipa tekanan tinggi dan pipa air laut dalam peralatan);
- dibutuhkan bagian-bagian mekanis dan struktural dengan kekuatan tinggi dan ketahanan korosi yang tinggi;
- Peralatan pemurnian gas (limbah)
Komposisi Kimia:
C≤0,03,Si≤0,80,Mn≤1,2,Cr:24-26,Ni:6-8,S≤0,02,P≤0,035,Mo:3-5,N:0.24-0.32

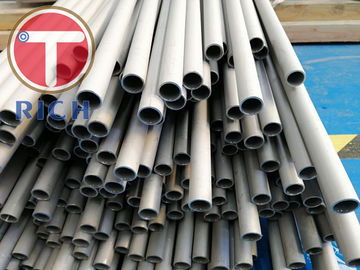

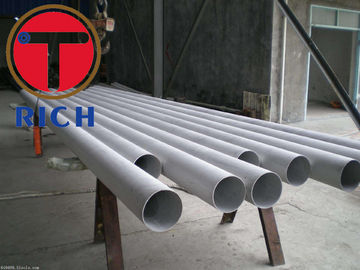

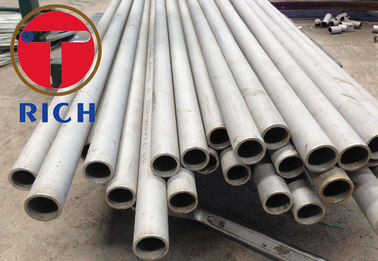

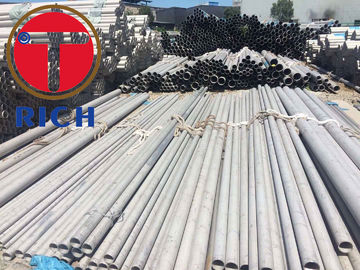

Gambar produk
