Pemasok Pipa Seamless Duplex S31803
Rincian produk
S31803 Pipa tanpa jahitan
,Pipa Mulus Dupleks
,Duplex S31803 Pipa tanpa jahitan
Duplex S31803 Pipa tanpa jahitan
Tabung ASTM A789 UNS S31803 mengacu pada tabung tanpa jahitan dan las yang diproduksi sesuai dengan ASTM A789/ASTM A1789M, yang mengandung sekitar 50% ferrit dan 50% austenit.Ketahanan korosi tegangan ASTM A789 dalam larutan klorida netral dan H2S lebih baik daripada 304L, 316L austenit stainless steel, dan 18-5mo tipe duplex stainless steel.sangat cocok untuk kisaran suhu -50°F/+600°F.juga dipertimbangkan untuk aplikasi di luar kisaran suhu ini, tetapi ada beberapa keterbatasan, terutama ketika diterapkan pada struktur las.
Persyaratan komposisi kimia
| Komposisi kimia untuk tabung ASTM A789 UNS S31803, % | |
|---|---|
| C | ≤ 0.030 |
| Mn | ≤ 2.00 |
| P | ≤ 0.030 |
| S | ≤ 0.020 |
| Ya. | ≤ 1.00 |
| Tidak | 4.5-6.5 |
| Cr | 21.0-23.0 |
| Mo | 2.5-3.5 |
| N | 0.08-0.20 |
Sifat Mekanis
| Kekuatan tarik, minimal. | Berikan Kekuatan, Min. | Elongasi, menit. | Kekerasan Brinell, maksimal |
|---|---|---|---|
| MPa | MPa | % | HB |
| 620 | 450 | 25 | 290 |

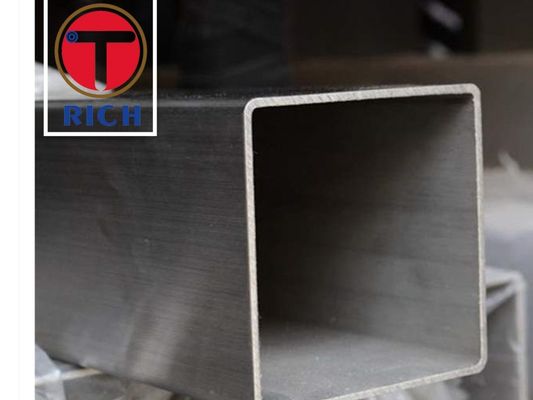

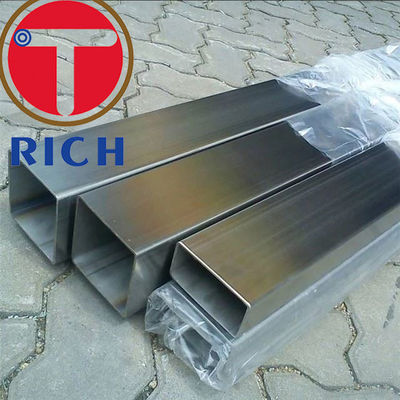

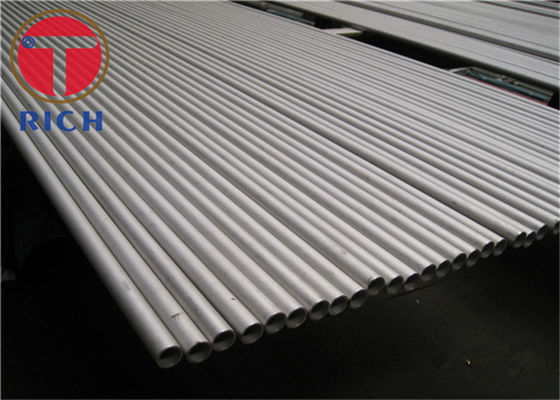

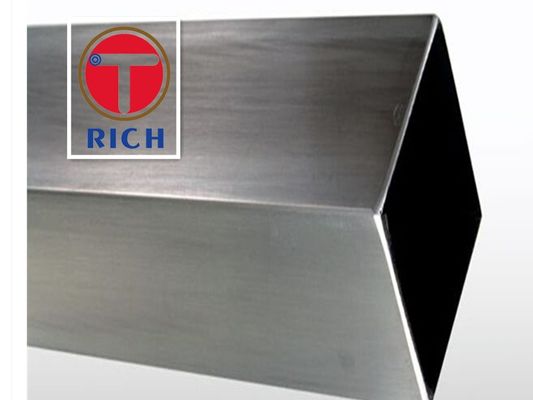

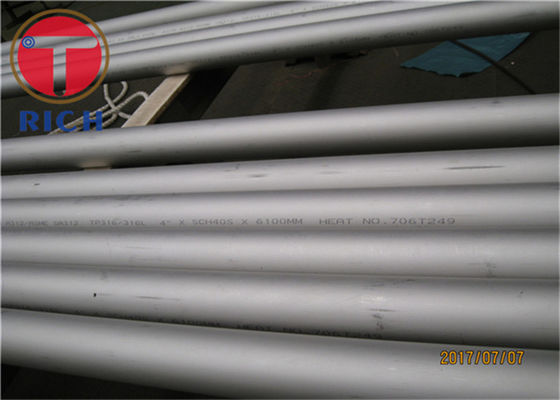

Gambar produk:
Pengantar Perusahaan:
Kemasan dan Pengiriman:
FAQ:
T: Apakah Anda perusahaan dagang atau produsen?
A: Kami adalah produsen pipa baja profesional.
T: Berapa lama waktu pengiriman Anda?
A: Umumnya dibutuhkan 7-14 hari jika barang ada di stok atau 30-60 hari jika tidak ada stok, ini terutama tergantung pada kuantitas.
Q: Apakah Anda menyediakan sampel gratis?
A: Ya,kami bisa menawarkan sampel gratis tetapi perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A:Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, pls merasa bebas untuk menghubungi kami.
-
