JIS G3445 OD 19.05mm Cold Drawn Seamless Steel Tube
Rincian produk
JIS G3445 Cold Drawn Seamless Steel Tube
,tabung mulus ditarik dingin TORICH
,19.05mm Cold Drawn Seamless Steel Tube
Spesifikasi JIS G 3445 Kelas STKM 11A
JIS G 3445 Tabung baja karbondiproduksi sesuai dengan spesifikasi JIS.JIS G 3445 Tabung tanpa jahitansifat mekanik dapat sangat bervariasi dengan pengolahan panas.Spesifikasi JIS G3445 STKM Mencakup tabung baja karbon untuk tujuan struktur mesin. Kami menawarkan JIS G3445 tersedia kelas STKM11A, STKM12(A,B,C), STKM13(A,B,C), STKM14(A,B,C), STKM15, STKM16 STKM17, STKM18, STKM19, STKM20.dan berbagai pilihan akhir untuk memenuhi persyaratan kinerja dan penampilan untuk sebagian besar aplikasi.
Spesifikasi standar
| Standar | JIS G3445 |
| Kelas | STKM11, STKM12, STKM13, STKM14, STKM15, STKM16, STKM17, STKM18, STKM19, STKM20 |
| Dimensi Luar | 19.05mm 114.3mm |
| Ketebalan dinding | 2.0mm 14 mm |
| Panjang | maksimum 16000mm |
Komposisi Kimia
| Kelas | Pengangkatan | Komposisi Kimia | |||||
|---|---|---|---|---|---|---|---|
| C | SI | MN | P | S | |||
| 11 | A | STKM 11A | 0.12 maksimal. | 0.35 maksimal. | 0.60 maksimal. | 0.040 maksimal | 0.040 maksimal |
| A | STKM 12A | ||||||
| 12 | B | STKM 12B | 0.20 maksimal. | 0.35 maksimal. | 0.60 maksimal. | 0.040 maksimal | 0.040 maksimal |
| C | STKM 12C | ||||||
| A | STKM 13A | ||||||
| 13 | B | STKM 13B | 0.25 maksimal. | 0.35 maksimal. | 0.30 ~ 0.90 | 0.040 maksimal | 0.040 maksimal |
| C | STKM 13C | ||||||
| A | STKM 14A | ||||||
| 14 | B | STKM 14B | 0..30 max. | 0.35 maksimal. | 0.30 ~ 1.00 | 0.040 maksimal | 0.040 maksimal |
| C | STKM 14C | ||||||
| 15 | A | STKM 15A | 0.25 ~ 0.35 | 0.35 maksimal. | 0.30 ~ 1.00 | 0.040 maksimal | 0.040 maksimal |
| B | STKM 15B | ||||||
| 16 | A | STKM 16A | 0.35 ~ 0.45 | 0.40 maksimal. | 0.40 ~ 1.00 | 0.040 maksimal | 0.040 maksimal |
| B | STKM 16B | ||||||
| 17 | A | STKM 17A | 0.45 ~ 0.55 | 0.40 maksimal. | 0.40 ~ 1.00 | 0.040 maksimal | 0.040 maksimal |
| B | STKM 17B | ||||||
| A | STKM 18A | ||||||
| 18 | B | STKM 18B | 0.18 maksimal. | 0.55 maksimal. | 1.50 maksimal | 0.040 maksimal | 0.040 maksimal |
| C | STKM 18C | ||||||

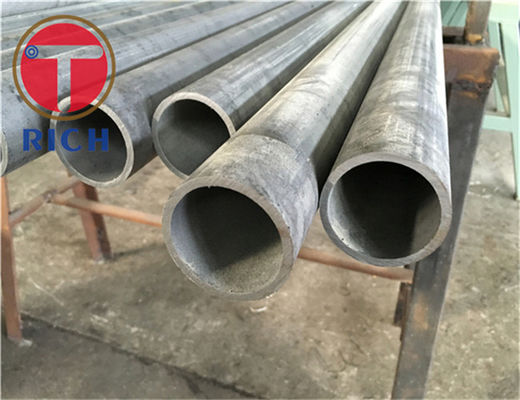

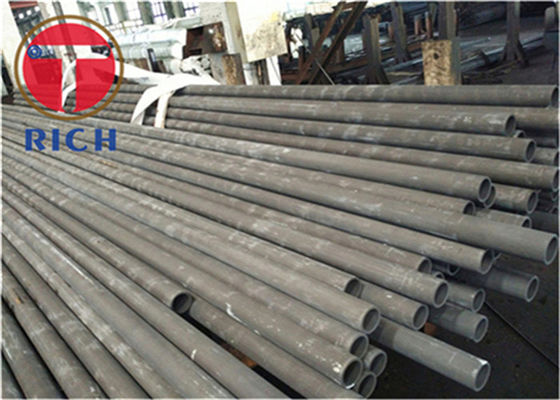

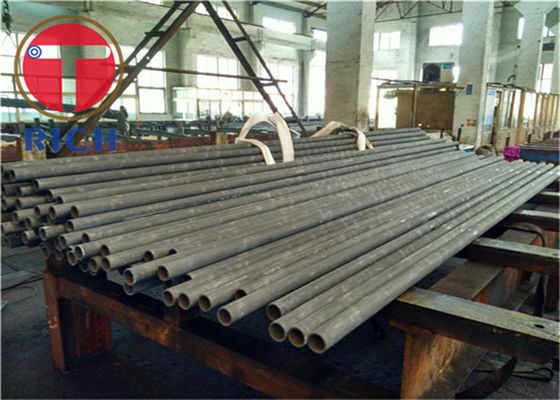

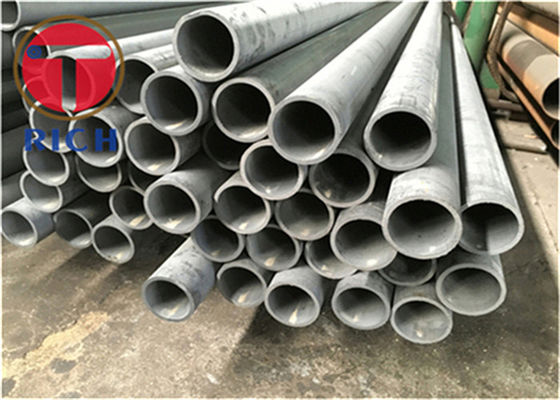

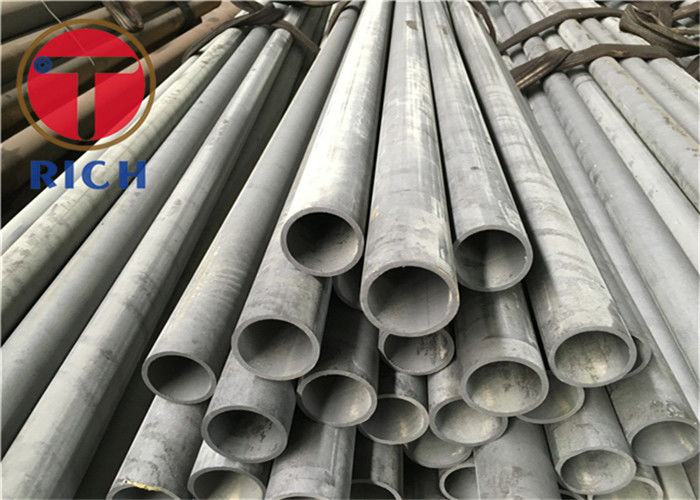

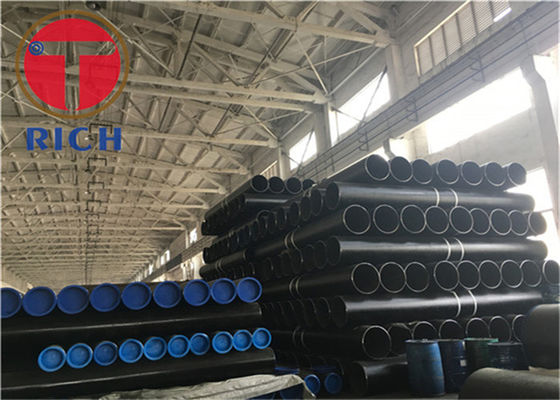

Gambar produk:
Pengantar Perusahaan:
Kemasan dan Pengiriman:
FAQ:
T: Apakah Anda perusahaan dagang atau produsen?
A: Kami adalah produsen pipa baja profesional.
T: Berapa lama waktu pengiriman Anda?
A: Umumnya dibutuhkan 7-14 hari jika barang ada di stok atau 30-60 hari jika tidak ada stok, ini terutama tergantung pada kuantitas.
Q: Apakah Anda menyediakan sampel gratis?
A: Ya,kami bisa menawarkan sampel gratis tetapi perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A:Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, pls merasa bebas untuk menghubungi kami.
-
