TORICH JIS G3459 Tabung Baja Tahan Karat Dilas dan Dilas
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO9001,ISO14001,TS16949
Nomor Model:
JIS G3459
Properti Perdagangan
Jumlah Pesanan Minimum:
2 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L / C, T / T
Kemampuan Penyediaan:
5000 ton per tahun
Ringkasan Produk
TORICH JIS G3459 Tabung stainless steel tanpa jahitan dan las Tabung tanpa jahitan dan las austenit dan ferit Bahan:SUS 304 TP,SUS 304 HTP, SUS 304 LTP, SUS 316 TP, SUS 316 HTP, SUS 316 LTP,materi lain juga tersedia. Jangkauan ukuran:O.D.: 3.2 - 200 mm W.T.: 0.5 - 30 mm Panjang: Sesuai permintaan ...
Rincian produk
Menyoroti:
JIS G3459 Tabung baja tahan karat
Material:
300 seri, 400 seri
Standard:
JIS G3459
Surface:
Anil & Acar
End:
object(Yaf_Exception_LoadFailed_Controller)#14 (8) {
["string":"Exception":private]=>
string(0)
OD:
3,2 - 200 mm
WT:
0,5 - 30 mm
Deskripsi Produk

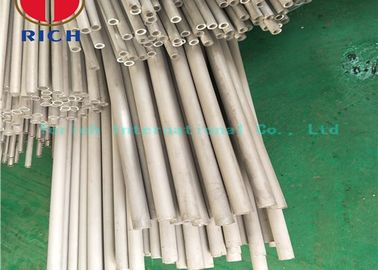

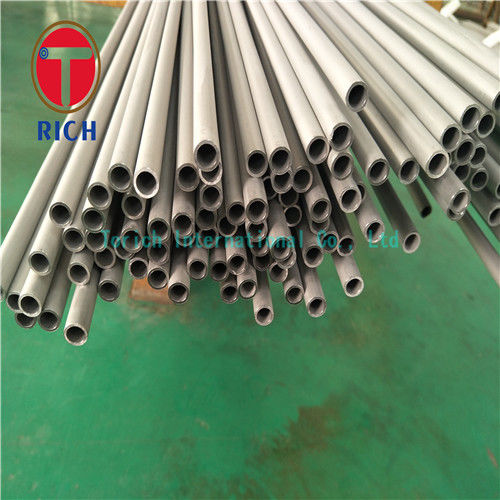

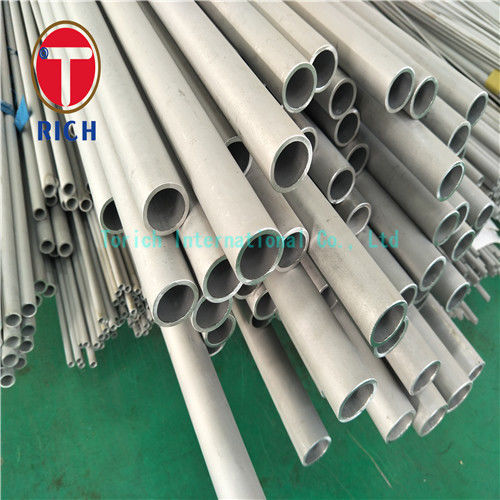

TORICH JIS G3459 Tabung stainless steel tanpa jahitan dan las
Tabung tanpa jahitan dan las austenit dan ferit
Bahan:SUS 304 TP,SUS 304 HTP, SUS 304 LTP, SUS 316 TP, SUS 316 HTP, SUS 316 LTP,materi lain juga tersedia.
Jangkauan ukuran:O.D.: 3.2 - 200 mm W.T.: 0.5 - 30 mm Panjang: Sesuai permintaan klien.
Komposisi Kimia
| Kelas | C | Ya. | Mn | P | S | Tidak | Cr | Mo |
| SUS 304 TP | 0.08 maksimal | 1.00 maksimal | 2.00 maksimal | 0.040 maksimal | 0.030 maksimal | 8.00-11.00 | 18.00-20.00 | --- |
| SUS 304 HTP | 0.04-0.10 | 0.75 maksimal | 2.00 maksimal | 0.040 maksimal | 0.030 maksimal | 8.00-11.00 | 18.00-20.00 | --- |
| SUS 304 LTP | 0.03 maksimal | 1.00 maksimal | 2.00 maksimal | 0.040 maksimal | 0.030 maksimal | 9.00-13.00 | 18.00-20.00 | --- |
| SUS 316 TP | 0.08 maksimal | 1.00 maksimal | 2.00 maksimal | 0.040 maksimal | 0.030 maksimal | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 |
| SUS 316 HTP | 0.04-0.10 | 0.75 maksimal | 2.00 maksimal | 0.040 maksimal | 0.030 maksimal | 11.00-14.00 | 16.00-18.00 | 2.00-3.00 |
| SUS 316 LTP | 0.03 maksimal | 1.00 maksimal | 2.0 maksimal | 0.030 maksimal | 0.030 maksimal | 12.00-16.00 | 16.00-18.00 | 2.00-3.00 |
Persyaratan ketegangan dan kekerasan
| Kelas | Kekuatan tarik N/mm2 menit | Membangun Kekuatan N/mm2 menit | Elongasi% menit | |||
| No.11 bagian uji No.12 bagian uji | Bagian uji no.5 | Bagian uji no.4 | ||||
| Arah bujur | Arah melintang | Arah bujur | Arah melintang | |||
| SUS 304 TP | 520 | 205 | 35 | 25 | 30 | 22 |
| SUS 304 HTP | 520 | 205 | 35 | 25 | 30 | 22 |
| SUS 304 LTP | 480 | 175 | 35 | 25 | 30 | 22 |
| SUS 316 TP | 520 | 205 | 35 | 25 | 30 | 22 |
| SUS 316 HTP | 520 | 205 | 35 | 25 | 30 | 22 |
| SUS 316 LTP | 480 | 175 | 35 | 25 | 30 | 22 |
Toleransi:
Hot selesai:
OD<50mm, ±0,5mm WT< 4 mm, ± 0,5 mm
OD≥50mm, ±1% WT≥4mm, ± 12,5%
Dilengkapi dingin:
OD<50mm, ±0,5mm WT< 4 mm, ± 0,5 mm
OD≥50mm, ±1% WT≥4mm, ± 12,5%
