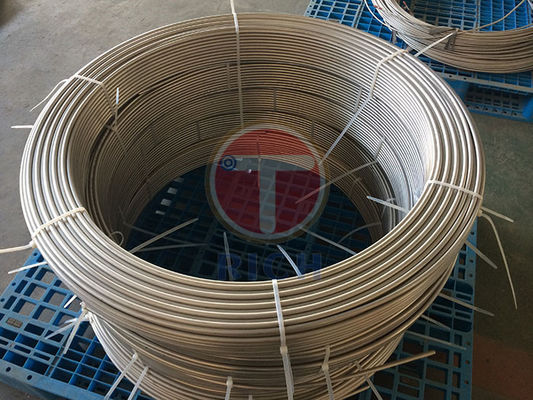

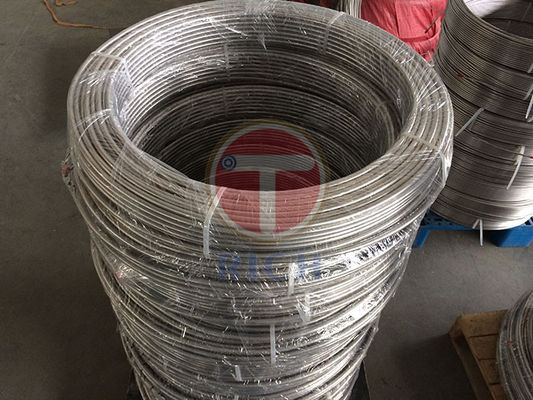

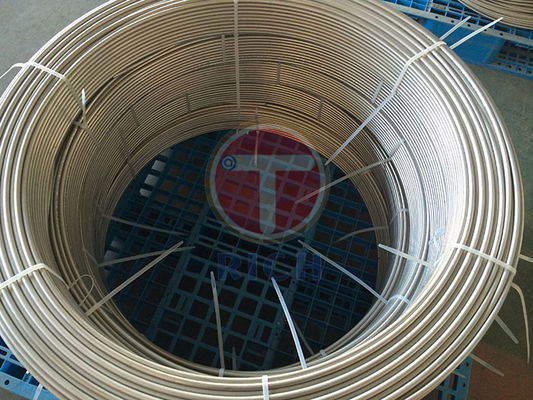

ASTM 304L 316L 2205 2507825625 Tabung Coil Stainless Steel
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO9001,ISO14001,TS16949
Nomor Model:
ASME A789
Properti Perdagangan
Jumlah Pesanan Minimum:
0,5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L / C, T / T
Kemampuan Penyediaan:
5000 ton per tahun
Ringkasan Produk
ASTM 304L316 316L 2205 2507 825 625 Lini Kontrol Tabung Kabel Stainless Steel Presisi Tinggi Kinerja Tinggi Nama produk:ASTM 304L316 316L 2205 2507 825 625 Lini Kontrol Tabung Kabel Stainless Steel Presisi Tinggi Kinerja Tinggi Standar:ASTM A789; ASTM A790; EN 10216-5 ect. Bahan: S32205, S31803, ...
Rincian produk
Menyoroti:
Tabung Coil Stainless Steel 304L
,Tabung Coil Stainless Steel ASTM 625
Material:
Super Duplex 2507
Standard:
ASME A789
Surface:
Anil & Acar
Length:
Maksimal 12000mm
Delivery Time:
30-40 hari
End:
object(Yaf_Exception_LoadFailed_Controller)#14 (8) {
["string":"Exception":private]=>
string(0)
Deskripsi Produk
ASTM 304L316 316L 2205 2507 825 625 Lini Kontrol Tabung Kabel Stainless Steel Presisi Tinggi Kinerja Tinggi
Nama produk:ASTM 304L316 316L 2205 2507 825 625 Lini Kontrol Tabung Kabel Stainless Steel Presisi Tinggi Kinerja Tinggi
Standar:ASTM A789; ASTM A790; EN 10216-5 ect.
Bahan: S32205, S31803, S32304, S32750, 2205, 2507, dll.
Jangkauan ukuran:
- Diameter luar (OD): 3 mm (0,118 ′′) hingga 25,4 mm (1,00 ′′)
- Ketebalan dinding (WT): 0,5 mm (0,020 ′′) hingga 3 mm (0,118 ′′)
- Toleransi OD +/- 0,005 ‰ (0,13 mm), toleransi lain tersedia atas permintaan
- Toleransi WT +/- 10%, toleransi lain tersedia atas permintaan
- Panjang gulungan hingga 6.000 m (20.000 kaki) tanpa sendi orbital tergantung pada dimensi produk dan bentuknya (tabung tanpa jahitan atau tabung las).
- Panjang kumparan hingga 13.500m (45.000 kaki) dengan sendi orbital
Aplikasi:Jalur kontrol hidraulik lubang bawah
Saluran pengendalian kimia bawah lubang
Saluran kontrol bawah laut untuk tenaga hidrolik dan saluran injeksi kimia
Kontrol aliran
Tabung instrumen
Tabung saluran kontrol permukaan dalam yang halus yang digunakan dalam aplikasi serat optik
lainnya
| Artikel | bahan | Ukuran Panjang | Panjang ((m) / pcs | Tekanan (Mpa) |
| 1 | 316L,304L,304 | 1/8 "x 0,025" | 3200 | 80 |
| 2 | 316L,304L,304 | 1/8 "× 0,035" | 3200 | 100 |
| 3 | 316L,304L,304 | 1/4 "x 0,035" | 2000 | 100 |
| 4 | 316L,304L,304 | 1/4 "x 0.049" | 2000 | 100 |
| 5 | 316L,304L,304 | 3/8 "× 0,035" | 1500 | 80 |
| 6 | 316L,304L,304 | 3/8 "x 0,049" | 1500 | 100 |
| 7 | 316L,304L,304 | 1/2 "x 0.049" | 1000 | 80 |
| 8 | 316L,304L,304 | 1/2 "x 0.065" | 1000 | 100 |
| 9 | 316L,304L,304 | φ3mm × 0,7mm | 3200 | 80 |
| 10 | 316L,304L,304 | φ3mm × 0,9mm | 3200 | 100 |
| 11 | 316L,304L,304 | φ4mm × 0,9mm | 3000 | 100 |
| 12 | 316L,304L,304 | φ4mm×1.1mm | 3000 | 100 |
| 13 | 316L,304L,304 | φ6mm × 0,9mm | 2000 | 100 |
| 14 | 316L,304L,304 | φ6mm×1.1mm | 2000 | 100 |
| 15 | 316L,304L,304 | φ8mm×1mm | 1800 | 80 |
| 16 | 316L,304L,304 | φ8mm×1.2mm | 1800 | 100 |
| 17 | 316L,304L,304 | φ10mm × 1mm | 1500 | 70 |
| 18 | 316L,304L,304 | φ10mm × 1,2mm | 1500 | 70 |
| 19 | 316L,304L,304 | φ10mm × 2mm | 500 | 100 |
| 20 | 316L,304L,304 | φ12mm × 1,5mm | 500 | 80 |
