JIS G3429 pipa baja seamless untuk tabung gas
Rincian produk
JIS G3429 Seamless Steel Tubing
,Steel Tubing Untuk Tabung Gas
JIS G3429 tabung baja tanpa jahitan untuk tabung gas
JIS G3429, spesifikasi untuk tabung baja tanpa jahitan untuk wadah atau wadah gas bertekanan tinggi.
Kelas: STH11, STH12, STH21, STH22
Dimensi luar: 19.05mm ~ 114.3mm
Ketebalan dinding:2.0mm ~ 14 mm
Panjang: maksimal 16000mm
Aplikasi:silinder gas bertekanan tinggi dengan ketahanan hancur yang sangat baik, tabung asli untuk wadah gas cair.
| Klasifikasi | Simbol dari |
| Pipa baja | STH 11, STH 12 |
| Tabung baja Cr-Mo | STH21, STH22 |
| Pipa baja Ni-Cr-Mo | STH 31 |
JIS G3429 tabung Komposisi kimia: ((%)
| Kelas | C | Ya. | Mn | P | S | Tidak | Cr | Mo |
| STH11 | ≤ 0.50 | 0.10-0.35 | ≤ 1.80 | ≤ 0.035 | ≤ 0.035 | / | / | / |
| STH12 | 0.30-0.41 | 0.10-0.35 | 1.35-1.70 | ≤ 0.030 | ≤ 0.030 | / | / | / |
| STH21 | 0.25-0.35 | 0.15-0.35 | 0.40-0.90 | ≤ 0.030 | ≤ 0.030 | ≤ 0.25 | 0.8-1.2 | 0.15-0.30 |
| STH22 | 0.33-0.38 | 0.15-0.35 | 0.40-0.90 | ≤ 0.030 | ≤ 0.030 | ≤ 0.25 | 0.8-1.2 | 0.15-0.30 |
| STH31 | 0.35-0.40 | 0.10-0.50 | 1.20-1.50 | ≤ 0.030 | ≤ 0.030 | 0.5-1.0 | 0.3-0.6 | 0.15-0.25 |
Toleransi pipa JIS G3429:
| Diameter luar | Ketebalan dinding | Panjang | Perbedaan ketebalan dinding |
| 1% | +30% | >+30mm | Dalam 20% dari ketebalan dinding nominal |

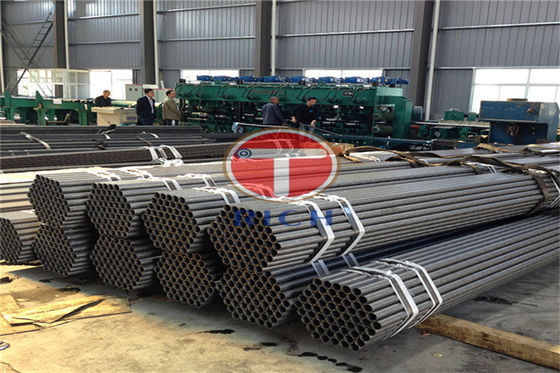

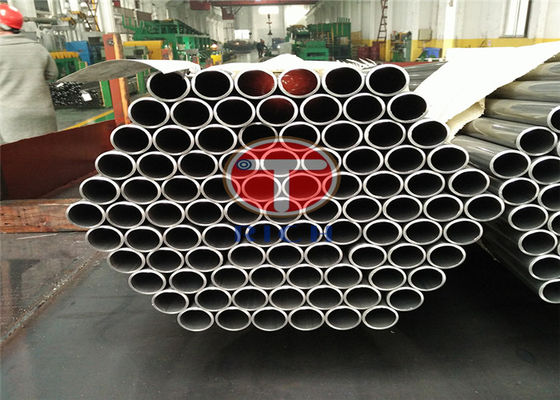

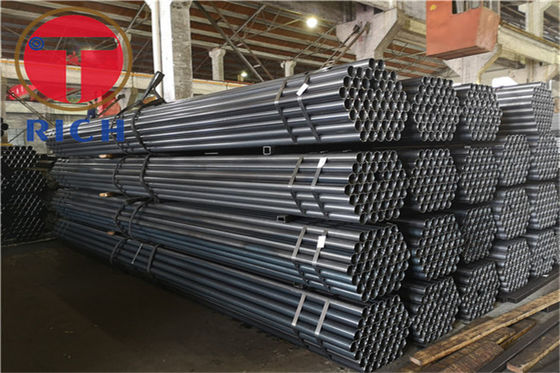

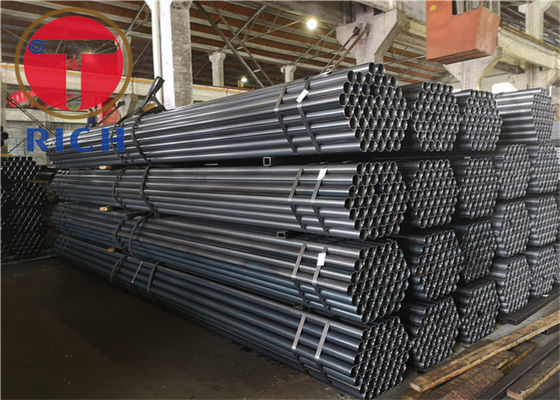

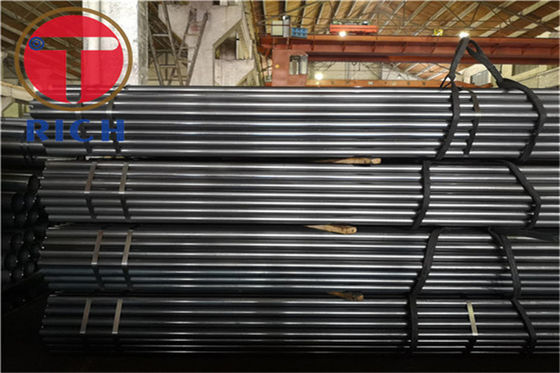

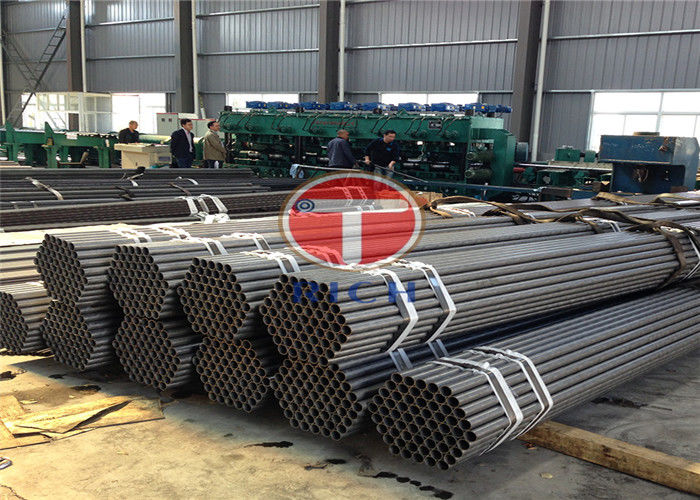

Gambar produk:
Pengantar Perusahaan:
Kemasan dan Pengiriman:
FAQ:
T: Apakah Anda perusahaan dagang atau produsen?
A: Kami adalah produsen pipa baja profesional.
T: Berapa lama waktu pengiriman Anda?
A: Umumnya dibutuhkan 7-14 hari jika barang ada di stok atau 30-60 hari jika tidak ada stok, ini terutama tergantung pada kuantitas.
Q: Apakah Anda menyediakan sampel gratis?
A: Ya,kami bisa menawarkan sampel gratis tetapi perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A:Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, pls merasa bebas untuk menghubungi kami.
-
