JIS G3473 Tabung Baja Struktural Standar Untuk Penggunaan Mekanis
Rincian produk
Tabung Baja Struktural Standar JIS G3473
,Tabung Silinder Hidraulik JIS G 3473
JIS G 3473 Tabung Silinder Hidraulik
JIS G 3473 adalah standar produksi Torich mengikuti untuk memproduksi Silinder Hidraulik Tabung baja karbon untukCyLinder Barrel
JIS G 3473 Tabung baja karbon untuk tong silinder
Standar:
JIS G 3473
Ukuran:
ID 5-420mm WT0.5-50mm L maksimal 12000mm
Kelas:
STC 370, STC 440, STC 510 A, STC 510 B, STC 540, STC 590 A, STC 590 B
Komposisi kimia danSifat mekanikdari JIS G3473:
| Kelas baja | C max | Si max | Mn max | P max | S max |
| STC 370 | 0.25 | 0.35 | 0.3-0.90 | 0.04 | 0.04 |
| STC 440 | 0.25 | 0.35 | 0.30-0.90 | 0.04 | 0.04 |
| STC 510 A | 0.25 | 0.35 | 0.30-0.90 | 0.04 | 0.04 |
| STC 510 B | 0.18 | 0.55 | 1.5 | 0.04 | 0.04 |
| STC 540 | 0.25 | 0.55 | 1.6 | 0.04 | 0.04 |
| STC 590 A | 0.25 | 0.35 | 0.30-0.90 | 0.04 | 0.04 |
| STC 590 B | 0.25 | 0.35 | 1.5 | 0.04 | 0.04 |
| Properti Mekanis Min | |||
| Besi kelas | Kekuatan tarik Mpa | Titik hasil atau prodari tegangan Mpa | Elongasi % |
| STC 370 | 370 | 251 | 30 |
| STC 440 | 440 | 305 | 10 |
| STC 510 A | 510 | 380 | 10 |
| STC 510 B | 510 | 380 | 15 |
| STC 540 | 540 | 390 | 20 |
| STC 590 A | 590 | 490 | 10 |
| STC 590 B | 590 | 490 | 15 |

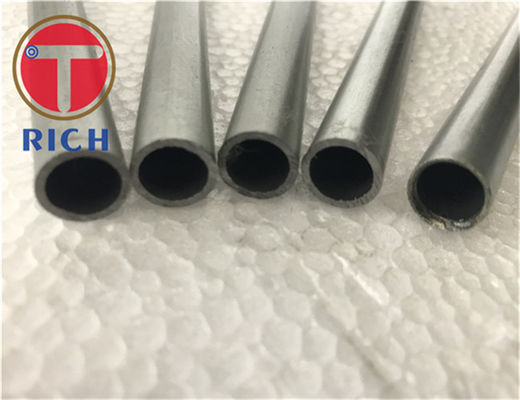

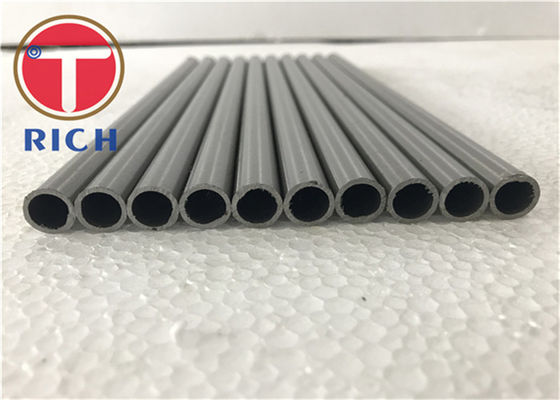

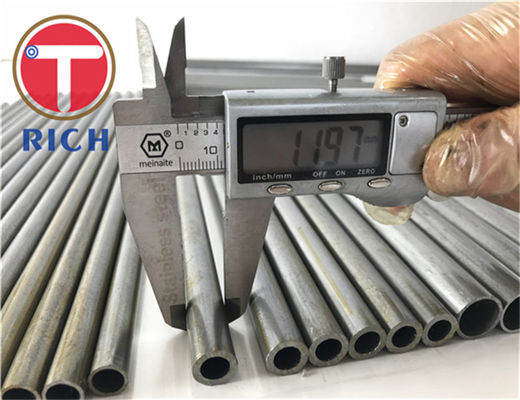

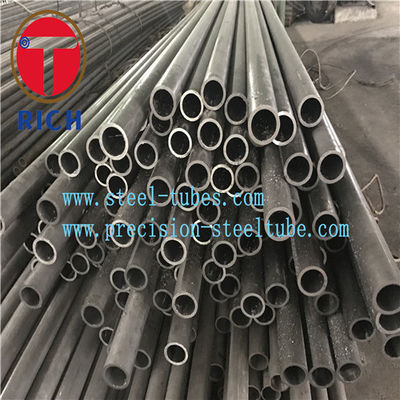

Gambar produk:
Pengantar Perusahaan:
Kemasan dan Pengiriman:
FAQ:
T: Apakah Anda perusahaan dagang atau produsen?
A: Kami adalah produsen pipa baja profesional.
T: Berapa lama waktu pengiriman Anda?
A: Umumnya dibutuhkan 7-14 hari jika barang ada di stok atau 30-60 hari jika tidak ada stok, ini terutama tergantung pada kuantitas.
Q: Apakah Anda menyediakan sampel gratis?
A: Ya,kami bisa menawarkan sampel gratis tetapi perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A:Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, pls merasa bebas untuk menghubungi kami.
-
