ASME SB163 UNS N08825 Nickel Alloy Seamless Steel Tube Untuk Kondensor
Rincian produk
UNS N08825 Tabung Baja Seamless
,Tabung Kondensor Nikel Paduan Seamless
,Tabung Baja Seamless ASME SB163
ASME SB163 UNS N08825 Nickel Allot Seamless Steel Tube
Spesifikasi untuk kondensor paduan nikel dan nikel tanpa sambungan serta tabung penukar panas.
Persyaratan kimia:
| Paduan | Ni | Cu | Mo | Besi | M N | C (A) | Si (A) | S | Kr | Al |
| UNS N02200 | 99 mnt (B) | 0,25 maks | ... | 0,40 maks | 0,35 maks | 0,15 maks | 0.35 | 0,01 maks | ... | ... |
| UNS N02201 | 99 mnt (B) | 0,25 maks | ... | 0,40 maks | 0,35 maks | 0,02 maks | 0.35 | 0,01 maks | ... | ... |
| UNS N04400 | 63 mnt (B) | 28.0-34.0 | ... | 2,5 maks | 2.0 maks | 0,3 maks | 0,5 | 0,024 maks | ... | ... |
| UNS N06600 | 72 mnt (B) | 0,5 maks | ... | 6.0-10.0 | 1.0 maks | 0,15 maks | 0,5 | 0,015 maks | 14.0-17.0 | ... |
| UNS N06601 | 58.0-63.0 | 1.0 maks | ... | sisa (A) | 1.0 maks | 0.1 | 0,5 | 0,015 maks | 21.0-25.0 | 1.0-1.7 |
| UNS N06690 | 58 mnt (B) | 0,5 maks | ... | 7.0-11.0 | 0,05 maks | 0,05 maks | 0,5 | 0,015 maks | 27.0-31.0 | ... |
| ....... |
Peralatan mekanis:
| Bahan dan Kondisi | Tensile Strenth, min, ksi (MPa) | Kekuatan Hasil (0,2% offset), min, psi (MPa) | Perpanjangan dalam 2 inci atau 50 mm (atau 4 D) min, % | Kekerasan Rockwell (atau setara) untuk ujung anil (A) |
UNS N02200 Anil Menghilangkan stres |
55 (379) 65 (448) |
15 (103) 40 (276) |
40 15 |
... B65 maks |
UNS N02201 Anil Menghilangkan stres | | | | |
UNS N04400 Anil Menghilangkan stres | | | |
... B75 maks |
| UNS N06600 | 80 (552) | 35 (241) | 30 | ... |
| UNS N06601 | 80 (552) | 30 (207) | 30 | ... |
| UNS N06690 | 85 (586) | 35 (241) | 30 | ... |
| ...... | ... | ... | ... | ... |

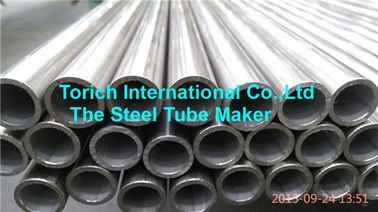

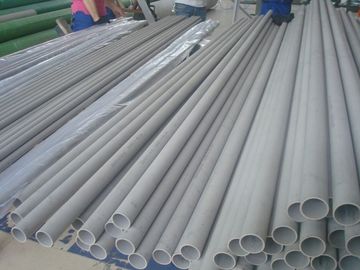

Gambar produk:
Standar ASTM yang Dirujuk:
B 829 Spesifikasi persyaratan umum untuk pipa dan tabung tanpa sambungan Nikel dan Paduan Nikel.
B 880 Spesifikasi persyaratan umum untuk Batas analisis pemeriksaan kimiawi untuk paduan Nikel, Nikel, dan Kobalt.
E 8 Metode pengujian untuk pengujian tegangan bahan logam.
E 18 Metode pengujian untuk kekerasan rockwell dan kekerasan superfisial rockwell untuk bahan logam.
E 29 Praktik menggunakan angka signifikan dalam data uji untuk menentukan kesesuaian dengan spesifikasi.
E 76 Metode pengujian untuk analisis kimia paduan Nikel-Tembaga.
E 112 Metode Uji untuk menentukan ukuran butir rata-rata.
E140 Tabel konversi kekerasan untuk logam.
E 1473 Metode uji untuk analisis kimia paduan Nikel, Kobalt dan suhu tinggi.
Kata kunci:
Tabung mulus;UNS N02200;UNS N02201;UNS N04400;UNS N06025;UNS N06045;UNS N06600;
UNS N06601;UNS N06603;UNS N06686;UNS N06690;UNS N08120;UNS N08800;UNS N08801;
UNS N08810;UNS N08811;UNS N08825
-
