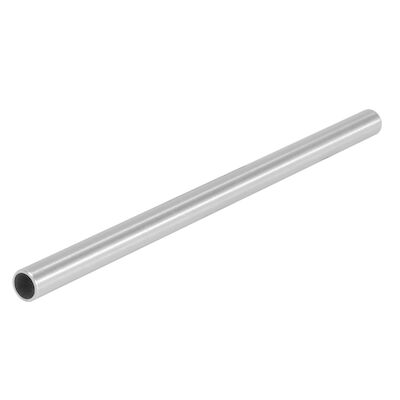

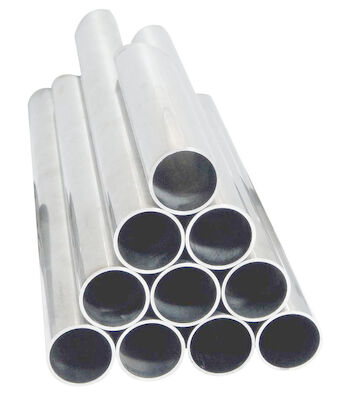

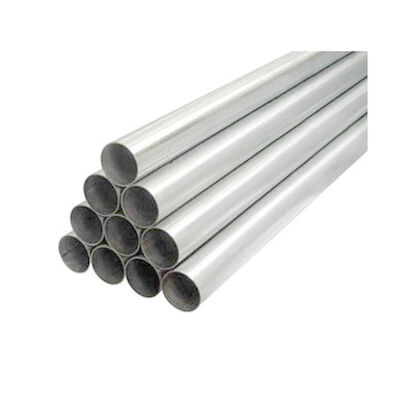

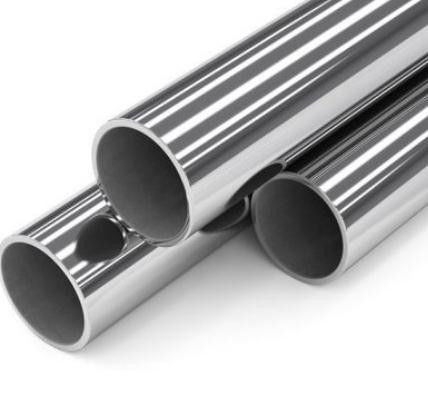

WT1.5mm ASTM B407 Nickel Alloy Tube Untuk Heat Exchanger
Rincian produk
ASTM B407 Tabung Paduan Nikel
,Tabung Paduan Nikel WT1.5mm
Tabung paduan nikel ASTM B407 untuk penukar panas
Aplikasi:
1) Tangki penguapan, mesin industri asam dan alkali dalam produksi petrokimia, regenerator katalitik, penukar panas.
2) Produksi dan penggunaan logam alkali korosif, terutama di lingkungan di mana sulfida digunakan,
3) Komponen mesin jet, komponen tambahan mesin turbojet, dll
Inconel 600paduan ini adalah paduan dasar ni - cr - besi pengukuhan larutan padat, memiliki ketahanan yang baik terhadap korosi suhu tinggi dan ketahanan oksidasi, pengolahan panas dan dingin yang sangat baik dan kinerja las,di bawah 700 °C memiliki intensitas panas yang memuaskan dan plastisitas yang tinggi.Alloy dapat diperkuat melalui kerja dingin, juga dapat menggunakan pengelasan resistansi, pengelasan atau sambungan pengelasan.
| Sifat fisik | |||||
| | -150°C | 21°C | 100°C | 500°C | 1000°C |
| Modulus elastisitas (Gpa) | 12.5 | | 15.9 | 22.1 | |
| Rata-rata koefisien ekspansi termal | | 210 | 210 | 187 | 143 |
| Koefisien konduksi panas (w/m°C) | 10.9 | 10.4 | 13.3 | 14.9 | |
| Kapasitas panas spesifik (j/kg°C) | 310 | 444 | 465 | 536 | |
| Lebih dari resistensi (Ωmm2/m) | | 1.03 | 1.04 | 1.12 | |
ASTM B407
Standar referensi:
B829 Spesifikasi untuk persyaratan umum untuk pipa dan tabung nirkabel dan paduan nikel.
E140 Tabel percakapan kekerasan untuk hubungan material antara kekerasan brinell, kekerasan vickers, kekerasan rockwell, kekerasan permukaan, kekerasan knop, kekerasan skleroskop, dan kekerasan leeb.
Kata kunci: pipa tanpa jahitan; tabung tanpa jahitan; UNS N08120; UNS N08800; UNS N08801; UNS N08810; UNS N08811; UNS N08890; UNS N06811
-
