OD300mm ASTM A270 Tabung Baja Tahan Karat
Properti Dasar
Tempat Asal:
Zhejiang, Cina
Nama merek:
Torich
Nomor Model:
ASTM A270
Properti Perdagangan
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Ringkasan Produk
ASTM A270 Saluran stainless sanitary Nama produk Tabung sanitasi austenit dan ferrit/austenit dari stainless steel Standar ASTM A270 Standar Referensi ASTM A262, A480/A480M, A923, A967, A1060/A1060M, E527, ASME B46.1 Ukuran OD: 25-300mm WT: 5-40mm Panjang: 1-12m Jenis Tanpa jahitan dan dilas Bahan ...
Rincian produk
Menyoroti:
Tabung Stainless Steel ASTM A270
,Tabung Stainless Steel OD300mm
,pipa bundar stainless steel OD300mm
Product Name:
ASTM A270 Sanitary Stainless Tubing
Technique:
Canai dingin
Surface Treatment:
Dipoles
Section Shape:
Bulat
Model Number:
ASTM A270
Material:
TP304, TP304L, TP316, TP316L, 2205
WT:
5 - 40mm
OD:
25 - 300mm
Usage:
Industri Peralatan Medis
Brand:
UNTUK KAYA
Deskripsi Produk
ASTM A270 Saluran stainless sanitary
| Nama produk | Tabung sanitasi austenit dan ferrit/austenit dari stainless steel |
| Standar | ASTM A270 |
| Standar Referensi | ASTM A262, A480/A480M, A923, A967, A1060/A1060M, E527, ASME B46.1 |
| Ukuran | OD: 25-300mm WT: 5-40mm Panjang: 1-12m |
| Jenis | Tanpa jahitan dan dilas |
| Bahan | TP304, TP304L, TP316, TP316L, 2205 |
| Tes | Uji perataan terbalik, uji listrik hidrostatik atau tidak merusak |
| Aplikasi | Penggunaan dalam industri susu dan makanan |
Komposisi Kimia
| Elemen | TP304 | TP304L | TP316 | TP316L | 2205 |
| C, maksimal | 0.08 | 0.035 | 0.08 | 0.035 | 0.030 |
| Mn, maksimal | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
| P, maksimal | 0.045 | 0.045 | 0.045 | 0.045 | 0.030 |
| S, maksimal | 0.030 | 0.030 | 0.030 | 0.030 | 0.020 |
| Ya, maksimal. | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Tidak | 8.0-11.0 | 8.0-12.0 | 10.0-14.0 | 10.0-14.0 | 4.5-6.5 |
| Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 22.0-23.0 |
| Mo | | | 2.0-3.0 | 2.0-3.0 | 3.0-3.5 |
| N | | | | | 0.14-0.20 |
| Cu | | | | | |
Persyaratan ketegangan dan kekerasan
| Kelas | Penunjukan UNS | Kekuatan tarik min, ksi [MPa] | Kekuatan yield min, ksi [MPa] | Elongasi dalam 2 in Min, % | Jumlah Kekerasan Rockwell, maksimal |
| TP304 | S30400 | 75 [515] | 30 [205] | 35 | B90 |
| TP304L | S30403 | 70 [485] | 25 [170] | 35 | B90 |
| TP316 | S31600 | 75 [515] | 30 [205] | 35 | B90 |
| TP316L | S31603 | 70 [485] | 25 [170] | 35 | B90 |
| 2205 | S32205 | 95 [655] | 70 [485] | 25 | C30.5 |

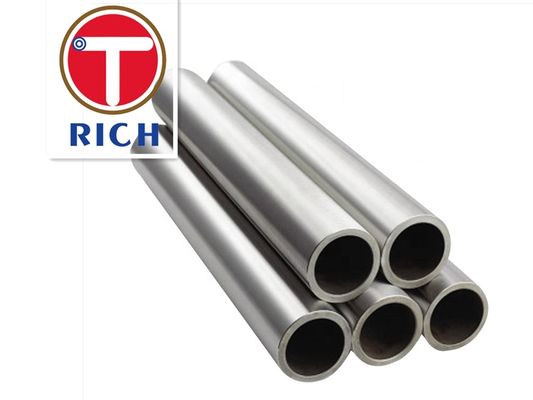

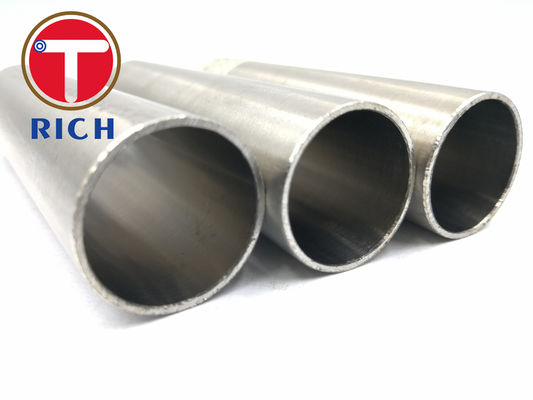

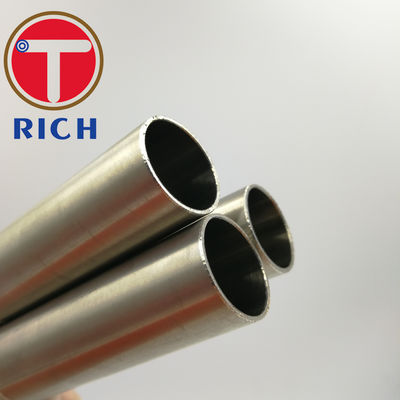

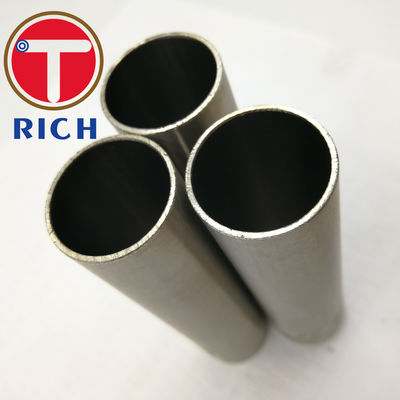

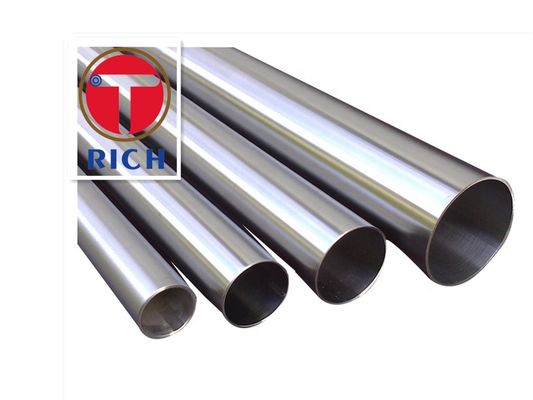

Gambar Produk
Pengantar Perusahaan
KONTROL KUALITAS
1. Inspeksi bahan baku yang masuk
2. Pengelompokan bahan baku untuk menghindari campuran kelas baja
3. Pemanasan dan Hammering End untuk Cold Drawing
4. Menggambar dingin dan penggulung dingin, pemeriksaan di jalur
5Pengolahan panas, +A, +SRA, +LC, +N, Q+T
6. Straightening-Motong ke panjang yang ditentukan-Selesai Pengukuran Inspeksi
7. Pengujian mekanik di laboratorium sendiri dengan kekuatan tarik, kekuatan hasil, elongasi, kekerasan, dampak, mikrostruktur dll
8Pengemasan dan Pengepakan
100% dari tabung baja kami diperiksa dimensi
100% tabung baja kami diperiksa secara visual untuk memastikan mereka memiliki kondisi permukaan yang sempurna dan tidak ada cacat permukaan.
Uji arus pusaran 100% dan uji ultrasonik untuk menghilangkan cacat longitudinal dan transversal
