incoloy 825 tubing Pipa Nikel Alloy Pipe
Rincian produk
ASME SB163 Pipa Paduan Nikel
,Pipa Paduan Nikel Panjang 12m

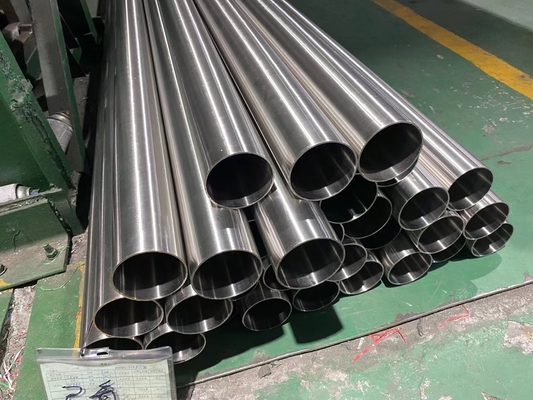

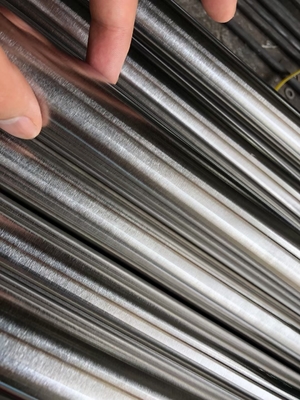

Incoloy 825 Tubing Pipe Nickel Alloy Pipe
Detil cepat:
OD:3.18-114.3mm
WT:0.5-12mm
Standar:ASME SB163
Dokumen referensi:
ASTMB829
ASTMB880
Bahan:N08825
Kondisi pengiriman:Berwarna hitam
Komposisi Kimia:
| Paduan | Nikel | Cu | Mo | Fe | Mn Maksimal | C
| Ya. Maksimal | S Maksimal | Cr | Al | Ti |
| UNS N08825 | 38-46 | 1.5-3.0 | 2.5-3.5 | 22 menit | 1 | 0.05max
| 0.5 | 0.03 | 19.5-23.5 | 0.2 maksimal | 0.6-1.2 |
Paduan nikel-besi-kromium-molibdenum-tembaga UNS N08825
Tabung baja khusus yang dipanaskan
Sifat mekanik
| Kekuatan tarik min ksi ((Mpa) | Kekuatan Hasil Min psi ((Mpa) | Perpanjangan Min% | |
| Paduan nikel-besi-kromium-molibdenum-tembaga UNS N08825
| 85 ((586) | 35(241) | 30 |
ASTM B163
Referensi standar ASTM:
B 829 Spesifikasi untuk persyaratan umum untuk pipa dan tabung nirkabel dan paduan nikel.
B 880 Spesifikasi untuk persyaratan umum untuk batas analisis pemeriksaan kimia untuk Nikel, paduan Nikel dan paduan Kobalt.
E 8 Metode uji untuk pengujian tegangan bahan logam.
E 18 Metode pengujian untuk kekerasan rockwell dan kekerasan permukaan rockwell dari bahan logam.
E 29 Praktek untuk menggunakan angka signifikan dalam data uji untuk menentukan kesesuaian dengan spesifikasi.
E 76 Metode pengujian untuk analisis kimia paduan Nikel-Tembaga.
E 112 Metode pengujian untuk menentukan ukuran butir rata-rata.
Tabel konversi kekerasan untuk logam.
E 1473 Metode pengujian untuk analisis kimia Nikel, Kobalt dan paduan suhu tinggi.
Kata kunci:
Tabung tanpa jahitan; UNS N02200; UNS N02201; UNS N04400; UNS N06025; UNS N06045; UNS N06600; UNS N06601; UNS N06603; UNS N06686; UNS N06690; UNS N08120; UNS N08800; UNS N08801; UNS N08810; UNS N08811;UNS N08825
-
