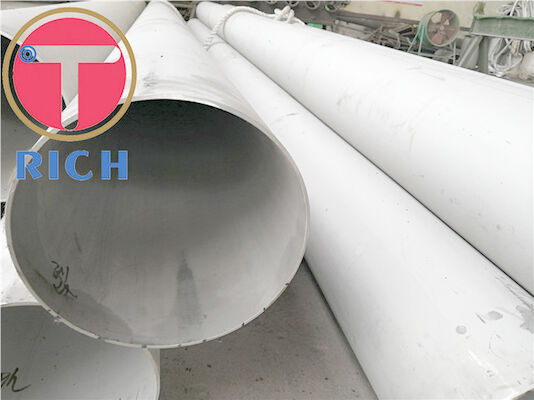

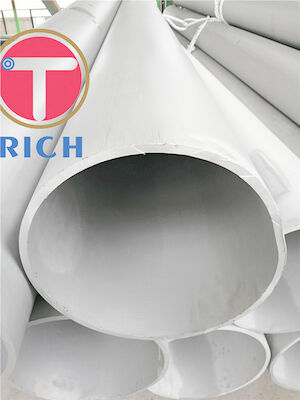

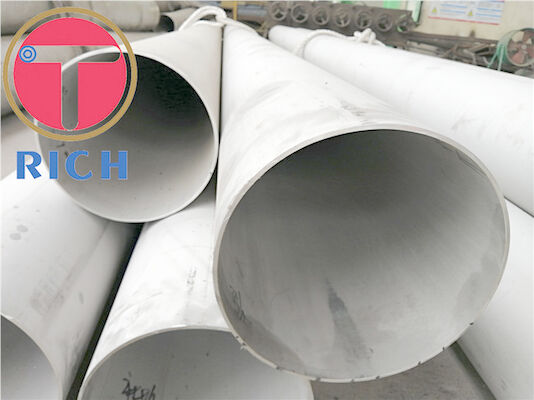

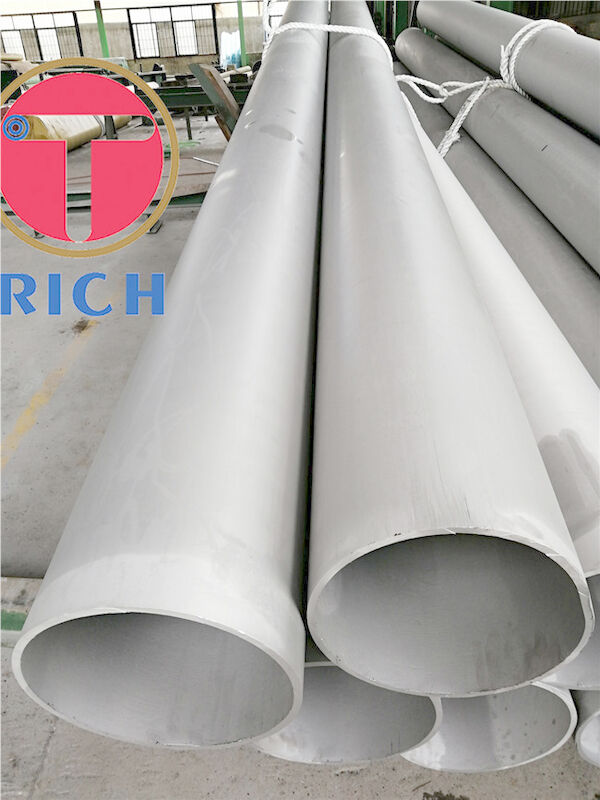

TORICH 316L OD25mm Steel Dan Tube Stainless
Properti Dasar
Tempat Asal:
Zhejiang
Nama merek:
TORICH
Sertifikasi:
ISO
Nomor Model:
ASTM A213
Properti Perdagangan
Jumlah Pesanan Minimum:
1 TON
Harga:
USD 2500 - USD 3000 Per Ton
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Kemampuan Penyediaan:
500 Ton per Bulan
Ringkasan Produk
TORICH ASTM A312 Besar Besar Diameter Industrial Stainless Steel Pipe dan Pipe Proses produksi pipa las jahitan lurus JCOE berdiameter besar: Steel Coil→ Re-test→ Flat Open and Transverse Shear→ Shear (Longitudinal Shear)→ Perencanaan tepi dan penggilingan→ Pengelasan Butt of Plate→ Membentuk ...
Rincian produk
Menyoroti:
TORICH baja dan tabung stainless
,316L Baja Dan Tabung Stainless
,OD25mm Baja Dan Tabung Stainless
Deskripsi Produk
TORICH ASTM A312 Besar Besar Diameter Industrial Stainless Steel Pipe dan Pipe
Proses produksi pipa las jahitan lurus JCOE berdiameter besar:
Steel Coil→ Re-test→ Flat Open and Transverse Shear→ Shear (Longitudinal Shear)→ Perencanaan tepi dan penggilingan→
Pengelasan Butt of Plate→ Membentuk (Melengkung/Ruling)→ End Squaring&Tack Welding→ Pengelasan Jahit Pengelasan→
Pengelasan Otomatis→ Pengujian Radiografi→ Pengolahan Larutan→ Pengelompokan→ Perataan→ Pengolahan Menghadap Ujung→
Uji hidrostatik→ Passifasi pickling→ Cuci dan kering→ Uji radiografi→ Uji produk jadi→ Penandaan→
Pengemasan→ Pergudangan Produk Selesai→ Pengiriman
Bahan yang Tersedia
| Bahan | Kelas |
| Baja tahan karat austenit | 310S, 309S, 316L, 321, 304, 304L |
| Duplex | S32750, S32760, S31803, S32205 |
| Paduan berbasis nikel | N08904, N06600, N08825 |
| Paduan Tembaga Nikel | C70600, C70620 |
| Ferrit | 430, 409L |
| Bahan Khusus Lain | 254SMO, 253MA |
| Bahan Temporasi Tinggi | 310S, 309S, S30815 |
| Paduan titanium | TA2, TA10, TC4 |
Kepadatan
| Kelas | ρ (kg/dm3) | Rumus Perhitungan | |
| 0Cr18Ni9 (06Cr19Ni10) SUS304 TP304 | 00Cr19Ni10 (022Cr19Ni10) SUS304L TP304L | 7.93 7.9 | W=0,02491 t(D-t) W=0,02482 t(D-t) |
| 0Cr17Ni12Mo2 SUS316 TP316 | 00Cr17Ni14Mo2 SUS316L TP316L | 8.0 | W=0,02513 t(D-t) |
Ukuran
| Jenis jahitan | OD | WT |
| Jambatan tunggal | 6-914mm | 0.5-60mm |
| Tembaga ganda | 630-1524 mm | 2-80mm |
| Jambatan Bulat | lebih dari 630mm | 2-100mm |
