Diameter Besar 201 Tabung Baja Tahan Karat Dilas Anil
Rincian produk
Tabung ss201 dilas
,Tabung Baja Tahan Karat Dilas Anil
,Tabung Baja Tahan Karat TORICH Dilas
SejarahLarge Large Diameter 201 304 316 Pipa stainless steel untuk penggunaan industri

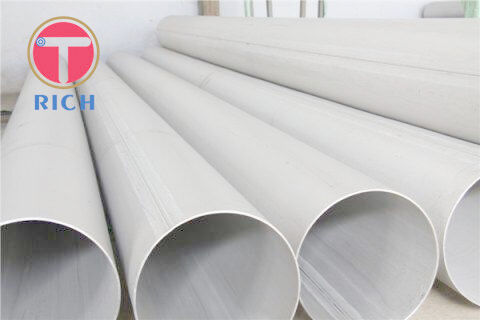

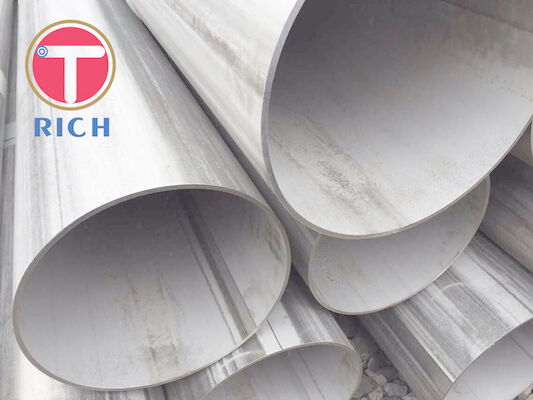

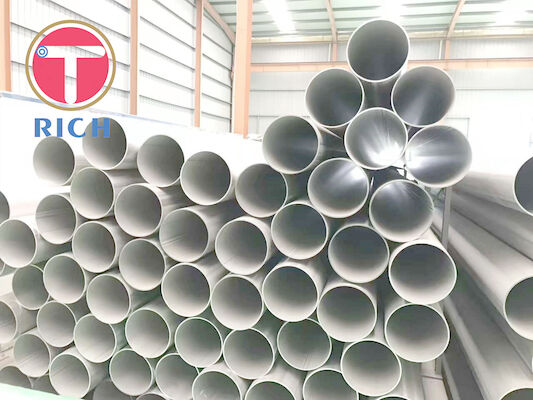

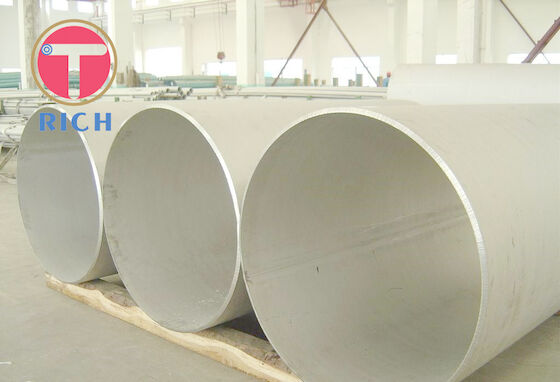

Deskripsi produk: diameter besartabung stainless steel
Aplikasi:Untuk tenaga listrik, penyulingan minyak, tenaga nuklir, konstruksi
Kelas baja/bahan baja:304, 304L, 316, 316L, 310S, 2205, 2507
Jangkauan ukuran:OD: 6-1524mmWT: 0,5-100mmPanjang: Menurut kebutuhan pelanggan
Proses Produksi:jahitan tunggal, jahitan ganda, jahitan melingkar
Bahan yang Tersedia
| Bahan | Kelas |
| Baja tahan karat austenit | 310S, 309S, 316L, 321, 304, 304L |
| Duplex | S32750, S32760, S31803, S32205 |
| Paduan berbasis nikel | N08904, N06600, N08825 |
| Paduan Tembaga Nikel | C70600, C70620 |
| Ferrit | 430, 409L |
| Bahan Khusus Lain | 254SMO, 253MA |
| Bahan Temporasi Tinggi | 310S, 309S, S30815 |
| Paduan titanium | TA2, TA10, TC4 |
Komposisi Kimia
| Komposisi kimia | |||||
| Kelas | C | Ya. | Mn | Cr | Tidak |
| 304 | ≤ 0.07 | ≤ 1.00 | ≤ 2.0 | 18.00 ~ 20.00 | 8.00 ~ 10.50 |
| 304L | ≤ 0.030 | ≤ 1.00 | ≤ 2.0 | 18.00 ~ 20.00 | 9.00 ~ 13.00 |
| 310S | ≤ 0.08 | ≤ 1.00 | ≤ 2.0 | 24.00~26.00 | 19.00 ~ 22.00 |
| 316 | ≤ 0.08 | ≤ 1.00 | ≤ 2.0 | 16.00 ~ 18.00 | 10.00 ~ 14.00 |
| 316L | ≤ 0.03 | ≤ 1.00 | ≤ 2.0 | 16.00 ~ 18.00 | 12.00 ~ 15.00 |
| 321 | ≤ 0.08 | ≤ 1.00 | ≤ 2.0 | 17.00~19.00 | 9.00 ~ 13.00 |
| 904L | ≤ 0.02 | ≤ 1.00 | ≤ 2.0 | 19.00 ~ 23.00 | 23.00 ~ 28.00 |
| 2205 | ≤ 0.03 | ≤ 1.00 | ≤ 2.0 | 22.00 ~ 23.00 | 4.5 ~ 6.5 |
| 2507 | ≤ 0.03 | ≤ 0.08 | ≤ 1.20 | 24.00~26.00 | 6.00 ~ 8.00 |
Ukuran
| Jenis jahitan | OD | WT |
| Jambatan tunggal | 6-914mm | 0.5-60mm |
| Tembaga ganda | 630-1524 mm | 2-80mm |
| Jambatan Bulat | lebih dari 630mm | 2-100mm |
Kepadatan
| Kelas | ρ (kg/dm3) | Rumus Perhitungan | |
| 0Cr18Ni9 (06Cr19Ni10) SUS304 TP304 | 00Cr19Ni10 (022Cr19Ni10) SUS304L TP304L | 7.93 7.9 | W=0,02491 t(D-t) W=0,02482 t(D-t) |
| 0Cr17Ni12Mo2 SUS316 TP316 | 00Cr17Ni14Mo2 SUS316L TP316L | 8.0 | W=0,02513 t(D-t) |
Proses produksi pipa las jahitan lurus JCOE berdiameter besar:
Steel Coil→ Re-test→ Flat Open and Transverse Shear→ Shear (Longitudinal Shear)→ Perencanaan tepi dan penggilingan→
Pengelasan Butt of Plate→ Membentuk (Melengkung/Ruling)→ End Squaring&Tack Welding→ Pengelasan Jahit Pengelasan→
Pengelasan Otomatis→ Pengujian Radiografi→ Pengolahan Larutan→ Pengelompokan→ Perataan→ Pengolahan Menghadap Ujung→
Uji hidrostatik→ Passifasi pickling→ Cuci dan kering→ Uji radiografi→ Uji produk jadi→ Penandaan→
Pengemasan→ Pergudangan Produk Selesai→ Pengiriman
Aplikasi:
Tenaga Listrik, Pemurnian Minyak, Tenaga Nuklir, Air Minum, Teknik & Pembangunan Kapal Offshore, Gas Alam,
Pembuatan Kertas, Konstruksi
Karakteristik:
Konsentrisitas yang baik
Toleransi OD dan ID yang baik
Keakuratan Tinggi
Kualitas stabil
Kerontokan yang halus
TORICH Jaminan Kualitas
