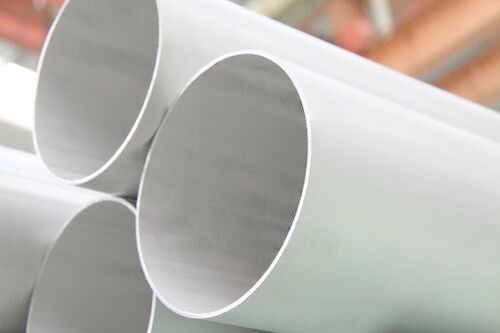

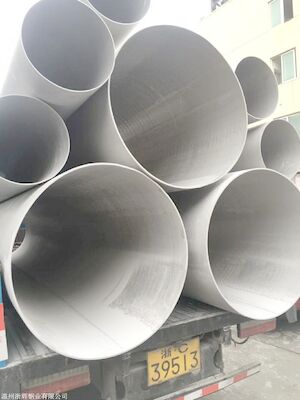

Super Duplex 2507 600mm Longitudinal Welded Pipe
Rincian produk
Super Duplex 2507 Pipe
,2507 Longitudinal Welded Pipe
,600mm Longitudinal Welded Pipe
Super duplex 2507 600mm pengelasan lingkar Double Seam longitudinal welded ERW Stainless Steel Pipe / SS Tube
Detil cepat:
Bahan Super Duplex 2507
Ukuran :600mm
Metode Produksi: Double Seam,Circumferential Weld,Double Seam Longitudinal Weld
Nama produk: Pipa baja tahan karat SS Tube
Bahan
Super duplex 2507
Komposisi kimia:
| Kelas baja | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Tidak | Mo | Cu≤ | N |
| S32750 ((2507) 00Cr25Ni7Mo4N | 0.03 | 1.2 | 0.8 | 0.02 | 0.035 | 24 jam sehari. 26 | 6.0/ 8.0 | 3.0/ 5.0 | 0.5 | 0.24/ 0.32 |
| S31803 ((2205) 00Cr22Ni5Mo3N | 0.03 | 2.0 | 1.0 | 0.02 | 0.03 | 21/ 23 | 4.5/ 6.5 | 2.5/ 3.5 | 0.08/ 0.20 | |
| S31500(3RE60) 00Cr18Ni5Mo3Si2 | 0.03 | 1.2/ 2.0 | 1.4/ 2.0 | 0.03 | 0.03 | 18/ 19 | 4.25 5.25 | 2.5/ 3.0 | 0.05/ 0.10 |
Super duplex 2507 600mm pengelasan lingkar Double Seam longitudinal welded ERW Stainless Steel Pipe / SS Tube
Listrik
Pengolahan Minyak
Energi Nuklir
Air Minum
Offshore Engineering & Shipbuilding
Gas alam
Pembuatan kertas
Konstruksi
Deskripsi:
Pipa dengan diameter besar Bahan yang tersedia
| Bahan | |
| Baja tahan karat austenit | 310S, 309S, 316L,321,304L,304 |
| Duplex | S,32750,S32760,S31803,S32205 |
| Alloy berbasis nikel | N08904,N06600,N08825 |
| Paduan Tembaga Nikel | C70600,C70620 |
| Ferrit | 430,409L |
| Bahan Khusus Lain | 254SMO, 253MA |
| Bahan Temporasi Tinggi | 310S,309S,S30815 |
| Paduan titanium | TA2,TA10,TC4 |
Pengolahan panas tersedia
Toleransi Torich bisa bertemu:
| Standar | Artikel | Diameter luar | Ketebalan | Kebulatan
| Kejujuran | Panjang | ||
| GB/T 12771 | Pengolahan panas | Kelas Tinggi | Umum | |||||
| < 50 | ± 0.20 | ± 0.3 | > 0,5-1.0, ± 0.15 > 1,0-2.0 ± 0.20 > 2,0-4.0 ± 0.3 ± 10% | Tidak melebihi toleransi OD t/D≤3% ≤1,5%D | OD ≤ 108 mm,≤ 1,5 mm/m > 108-325 mm ≤ 2,0 mm/m > 325mm ≤ 2,5 mm/m
| 3000-9000mm, Toleransi panjang adalah 0, + 20mm
| ||
| ≥40-<65 | ± 0.30 | ± 0.40 | ||||||
| ≥ 65-< 90 | ± 0.40 | ± 0.50 | ||||||
| ≥ 90-< 168.3 | ± 0.80 | ± 1.0 | ||||||
| > 168,3-< 325 | ± 0,75% D | ± 1% D | ||||||
| ≥325-<610 | ± 0,6% D | ± 1% D | ||||||
| > 610 | ± 0,6% D | ± 0,7% atau ± 10 Chose nilai min | ||||||
| Pemasangan | Semua ukuran | ± 0,5% D atau ± 0,20 memilih yang lebih besar | ± 0,75% D atau ± 0,30 memilih yang lebih besar | |||||
Lebih banyak:
Proses produksi:
Koil baja
Uji ulang
Pemotong terbuka dan melintang datar
Gunting Gunting longitudinal
Perencanaan dan Penggilingan Tepi
Pengelasan plat but
Membentuk ((Mengelilingi/Mengguling)
End Square&Tack Welding
Pembersihan jahitan las
Pengelasan otomatis
Tes radiografi
Pengobatan dengan larutan
Pengelompokan
Perataan
Menghadapi Pengobatan Akhir
Uji hidrostatik
Passifikasi Penggorengan
Cuci dan keringkan
Tes radiografi
Pengujian Produksi Selesai
Penandaan
Pengemasan
Penyimpanan Produk Selesai
Pengangkutan
-
