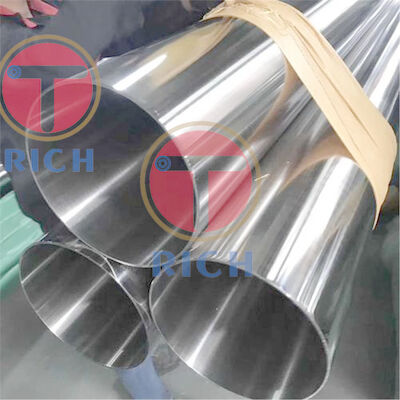

ASTM A312 304 Mirror Finish 8K Welded Stainless Steel Tube
Rincian produk
8K Welded Stainless Steel Tube
,Torich Welded Stainless Steel Tube
,pipa baja tahan karat astm a312
ASTM A312 304 316 8K Mirror Finish welded stainless steel tube
Deskripsi produk:8K Mirror Finish Stainless Steel Tube
Aplikasi:Untuk dekorasi interior
Kelas baja/bahan baja:304, 304L, 316, 316L, 310S, 2205, 2507
Jangkauan ukuran:OD: 6-420mmWT: 1-50mmPanjang: Menurut kebutuhan pelanggan
Bentuk Bagian:Bulat atau berbentuk
Karakteristik:
Konsentrisitas yang baik
Toleransi OD dan ID yang baik
Keakuratan Tinggi
Kualitas stabil
Kerontokan yang halus
TORICH Jaminan Kualitas
Proses Produksi:
Pemasangan
Komposisi Kimia:
| Komposisi kimia | |||||
| Kelas | C | Ya. | Mn | Cr | Tidak |
| 304 | ≤ 0.07 | ≤ 1.00 | ≤ 2.0 | 18.00 ~ 20.00 | 8.00 ~ 10.50 |
| 304L | ≤ 0.030 | ≤ 1.00 | ≤ 2.0 | 18.00 ~ 20.00 | 9.00 ~ 13.00 |
| 310S | ≤ 0.08 | ≤ 1.00 | ≤ 2.0 | 24.00~26.00 | 19.00 ~ 22.00 |
| 316 | ≤ 0.08 | ≤ 1.00 | ≤ 2.0 | 16.00 ~ 18.00 | 10.00 ~ 14.00 |
| 316L | ≤ 0.03 | ≤ 1.00 | ≤ 2.0 | 16.00 ~ 18.00 | 12.00 ~ 15.00 |
| 321 | ≤ 0.08 | ≤ 1.00 | ≤ 2.0 | 17.00~19.00 | 9.00 ~ 13.00 |
| 904L | ≤ 0.02 | ≤ 1.00 | ≤ 2.0 | 19.00 ~ 23.00 | 23.00 ~ 28.00 |
| 2205 | ≤ 0.03 | ≤ 1.00 | ≤ 2.0 | 22.00 ~ 23.00 | 4.5 ~ 6.5 |
| 2507 | ≤ 0.03 | ≤ 0.08 | ≤ 1.20 | 24.00~26.00 | 6.00 ~ 8.00 |
Gambar Produk
Pengantar Perusahaan
KONTROL KUALITAS
1. Inspeksi bahan baku yang masuk
2. Pengelompokan bahan baku untuk menghindari campuran kelas baja
3. Pemanasan dan Hammering End untuk Cold Drawing
4. Menggambar dingin dan penggulung dingin, pemeriksaan di jalur
5Pengolahan panas, +A, +SRA, +LC, +N, Q+T
6. Straightening-Motong ke panjang yang ditentukan-Selesai Pengukuran Inspeksi
7. Pengujian mekanik di laboratorium sendiri dengan kekuatan tarik, kekuatan hasil, elongasi, kekerasan, dampak, mikrostruktur dll
8Pengemasan dan Pengepakan
100% dari tabung baja kami diperiksa dimensi
100% tabung baja kami diperiksa secara visual untuk memastikan mereka memiliki kondisi permukaan yang sempurna dan tidak ada cacat permukaan.
Uji arus pusaran 100% dan uji ultrasonik untuk menghilangkan cacat longitudinal dan transversal
-
