ASME B16.5 Non Alloy Welding Neck Flange Baja Karbon
Rincian produk
Flensa Leher Las Baja Karbon
,Flensa Leher Las Non Alloy
,Flensa Pipa Leher Las ASME B16.5
Flang leher pengelasan ASME B16.5
Flange leher las ASME B16.5 harus dilengkapi dengan ujung persegi dipotong jika ketebalan dinding kurang dari 5 mm, ujung miring polos jika ketebalan dinding antara 5 mm dan 22 mm,atau ujung kerucut campuran jika ketebalan dinding lebih dari 22 mm. ujung pengelasan but harus diolah sesuai dengan persyaratan ASME B16.25Dimensi dan toleransi bevel polos dan bevel komposit diilustrasikan dalam dua gambar di bawah ini.ketebalan dinding t harus sesuai dengan persyaratan ketebalan dinding pipa berdekatan; permukaan akar dengan lebar f 2 mm harus diolah di bagian atas bevel dengan toleransi ± 1 mm.
Dimensi:Flang ANSI, ASME Flang, BS Flang, DIN Flang, EN 1092-1 Flang dll
Standar:ANSI B16.5, ANSI B16.47 Seri A & B, MSS SP44, ASA, API-605, AWWA, Gambar Khusus
Kelas:150 lbs, 300 lbs, 600 lbs, 900 lbs, 1500 lbs, 2500 lbs, DIN Standard ND-6,10, 16, 25, 40 dll.
Ukuran:1/8 "NB TO 48"NB.
Jenis wajah flange:Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
EN 1092-1tipe 01, EN 1092-1 tipe 02, EN 1092-1 tipe 05, EN 1092-1 tipe 11 Flange
DIN:DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
ANSI:ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
BS:BS4504, BS4504, BS1560, BS10
Dimensi dan Berat
| Ukuran | D | T | G | t |
|---|---|---|---|---|
| 1/2 " | 95 | 14.3 | 34.9 | 7.0 |
| 3/4 " | 115 | 15.9 | 42.9 | 7.0 |
| 1 " | 125 | 17.5 | 50.8 | 7.0 |
| 1-1/4 " | 135 | 20.7 | 63.5 | 7.0 |
| 1-1/2 " | 155 | 22.3 | 73.0 | 7.0 |
| 2 " | 165 | 25.4 | 92.1 | 7.0 |
| 2-1/2 " | 190 | 28.6 | 104.8 | 7.0 |
| 3 " | 210 | 31.8 | 127.0 | 7.0 |
| 3 1/2 " | 230 | 35.0 | 139.7 | 7.0 |
| 4" | 275 | 38.1 | 157.2 | 7.0 |
| 5" | 330 | 44.5 | 185.7 | 7.0 |
| 6" | 355 | 47.7 | 215.9 | 7.0 |
| 8" | 420 | 55.6 | 269.9 | 7.0 |
| 10" | 510 | 63.5 | 323.8 | 7.0 |
| 12" | 560 | 66.7 | 381.0 | 7.0 |
| 14" | 605 | 69.9 | 412.8 | 7.0 |
| 16" | 685 | 76.2 | 469.9 | 7.0 |
| 18" | 745 | 82.6 | 533.4 | 7.0 |
| 20 " | 815 | 88.9 | 584.2 | 7.0 |
| 22" | 870 | 95.2 | 641.4 | 7.0 |
| 24" | 940 | 101.6 | 692.2 | 7.0 |

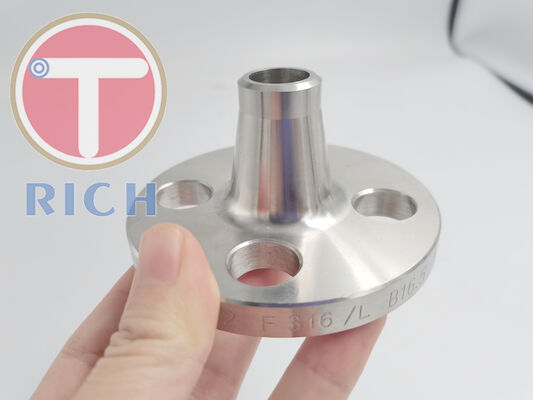

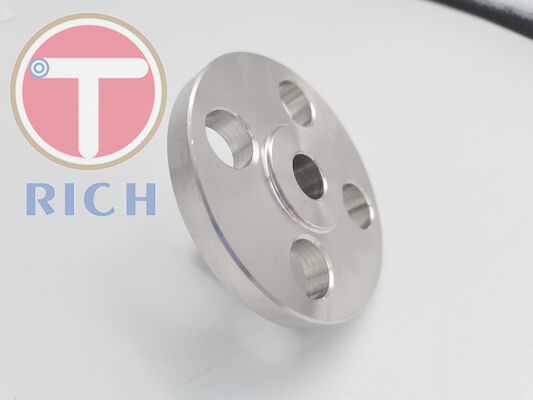

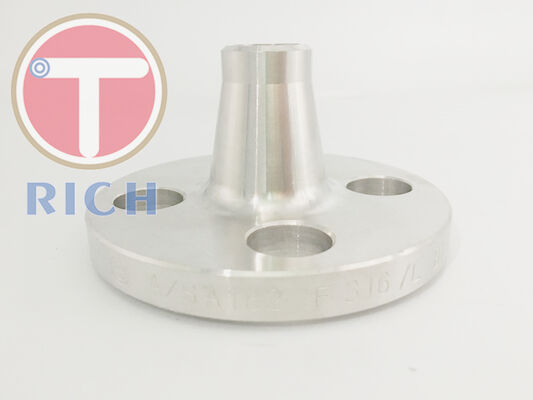

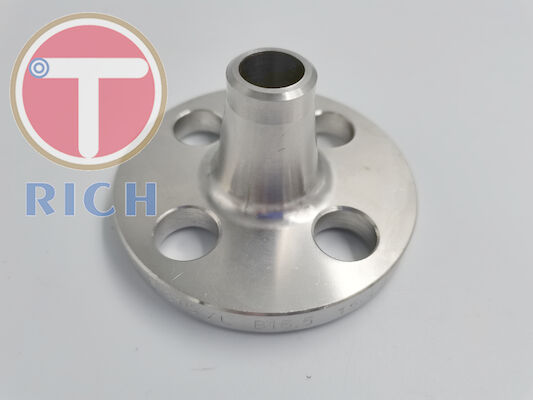

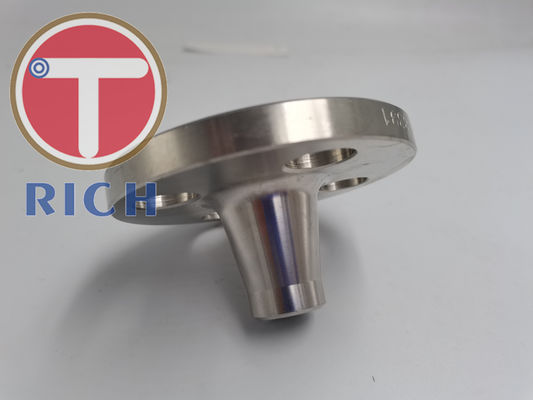

Gambar produk:
Pengantar Perusahaan:
Kemasan dan Pengiriman:
FAQ:
T: Apakah Anda perusahaan dagang atau produsen?
A: Kami adalah produsen pipa baja profesional.
T: Berapa lama waktu pengiriman Anda?
A: Umumnya dibutuhkan 7-14 hari jika barang ada di stok atau 30-60 hari jika tidak ada stok, ini terutama tergantung pada kuantitas.
Q: Apakah Anda menyediakan sampel gratis?
A: Ya,kami bisa menawarkan sampel gratis tetapi perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A:Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, pls merasa bebas untuk menghubungi kami.
-
