TORICH GB / T12459 TP304 304L Stainless Steel 90 Derajat Lr Siku DN15 DN600
Properti Dasar
Tempat Asal:
Zhejiang, Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, ISO14001, TS16949
Nomor Model:
GB / T12459
Properti Perdagangan
Jumlah Pesanan Minimum:
5 Ton
Harga:
USD10-100/PC
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Kemampuan Penyediaan:
2000 Ton per Tahun
Ringkasan Produk
TORICH GB/T12459 DN15 sampai DN600 TP304 304L Baja tahan karat 90 derajat siku Ukuran:tanpa jahitan1/2'~12' (DN15-DN600) dilas1/2'~12' (DN15~DN1200) Standar:GB/T12459, GB/T13401, GB14383, SH 3408, SH 3409, EN10253-4 EN 10357, ASME B16.9, DIN2605, DIN2607, JIS2312, JIS2313, MSS SP-43 Ketebalan:SCH5S...
Rincian produk
Menyoroti:
Siku Lr Stainless Steel 90 Derajat
,Siku Lr DN15 90 Derajat
,Siku Lr GB / T12459 90 Derajat
Keyword:
siku stainless steel
Grade:
316L 304L 321 310S 904L 2205 dll
Surface:
Polandia
Dimension:
DN15 hingga DN600
Thickness:
SCH5S-SCH160
Type:
1.0D 1.5D 3D 5D 8D 10D
Raw Material:
Pipa Seamless / Welde, Lembaran Baja, Penempaan
Application:
Pabrik petrokimia
Deskripsi Produk

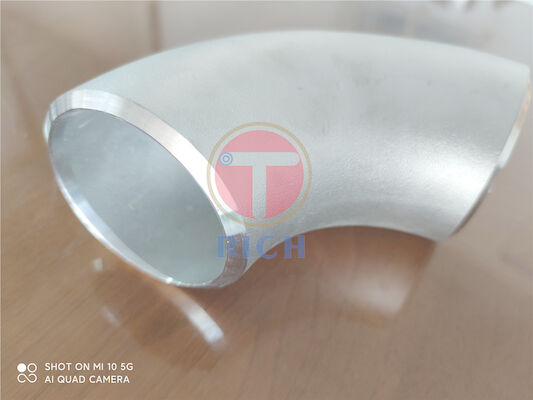

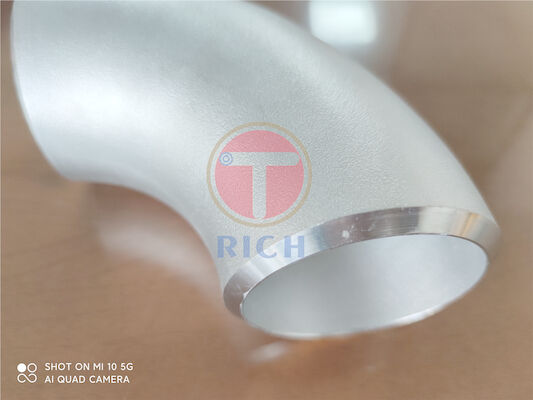

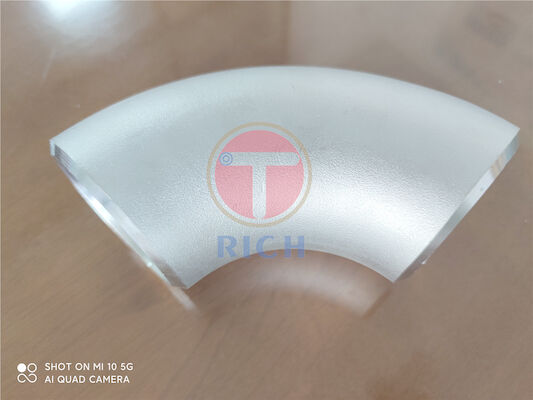

TORICH GB/T12459 DN15 sampai DN600 TP304 304L Baja tahan karat 90 derajat siku
Ukuran:tanpa jahitan1/2'~12' (DN15-DN600)
dilas1/2'~12' (DN15~DN1200)
Standar:GB/T12459, GB/T13401, GB14383, SH 3408, SH 3409, EN10253-4 EN 10357,
ASME B16.9, DIN2605, DIN2607, JIS2312, JIS2313, MSS SP-43
Ketebalan:SCH5S-SCH160
Bahan: 317/L; 304/L; 316/L; 310/S; 309/S; 347/H; 321/321/H; 904/L;2205 dll
Bahan baku:Pipa tanpa jahitan, pipa las, lembaran baja, penempaan (tekanan tinggi)
Proses Produksi:Pengeboran ekstrusi, Mempers, Bekerja dingin, Mesin, Hot Bending, Las, Pengolahan panas.
Aplikasi:Pabrik Petrochemical, Pembangkit Listrik Fossil, Mesin Makanan, Gryogenics, Pemurnian Minyak, Pembangkit Listrik Nuklir
| DN | NPS | OD | Pusat sampai akhir | Pusat ke Pusat |
| 25 | 1 | 32 33.4 | 25 | 50 |
| 32 | 1 1/4 | 38 42.2 | 32 | 64 |
| 40 | 1 | 45 48.3 | 38 | 76 |
| 50 | 2 | 57 60.3 | 51 | 102 |
| 65 | 2 1/2 | 76 73 | 64 | 128 |
| 80 | 3 | 89 | 76 | 152 |
| 90 | 3 1/2 | 101.6 | 89 | 178 |
| 100 | 4 | 108 114 | 102 | 204 |
| 125 | 5 | 133 141.3 139.7 | 127 | 254 |
| 150 | 6 | 168.3 159 165 | 152 | 304 |
| 200 | 8 | 219 216 | 203 | 406 |
