90 Derajat ASME B16.9 DIN 2605 Siku Stainless Steel Seamless Dipoles
Rincian produk
90 Derajat Siku Stainless Steel Seamless
,ASME B16.9 Siku Stainless Steel Seamless
,Siku Stainless Steel Seamless Poles

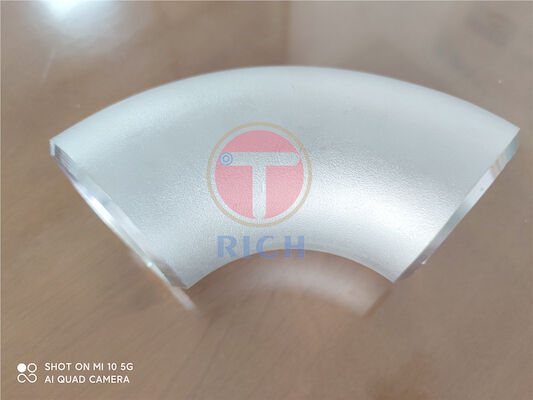

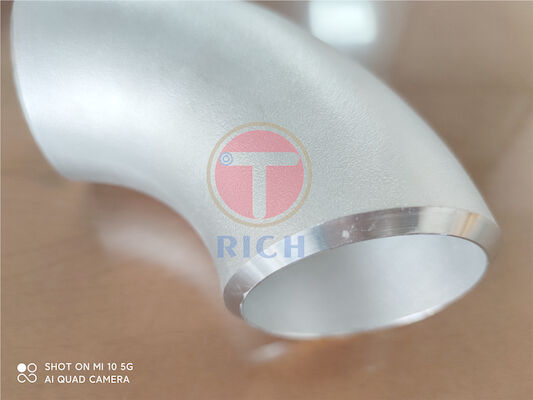

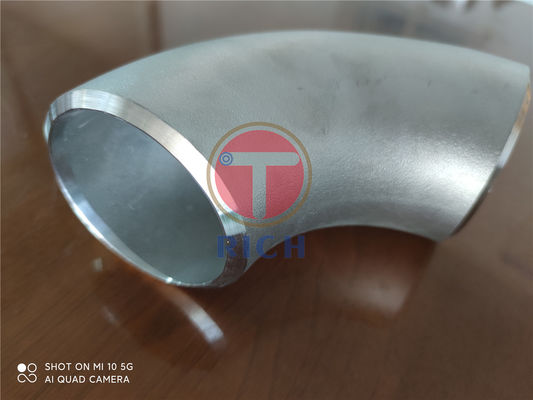

90 derajat ASME B16.9 DIN 2605 Stainless Steel Seamless Polished Elbow
Bahan:
317/L; 304/L;316/L;310/S;309/S;347/H;321/321/H;904/L
Aplikasi:
Susu, makanan, bir, minuman, farmasi, kosmetik, dll.
Ukuran:
tanpa jahitan1/2'~24' (DN15-DN600)
dilas1/2'~48' (DN15~DN1200)
| DN | NPS | OD | Pusat sampai akhir | Pusat ke Pusat |
| 15 | 1/2 | 18 21.3 | 38 | 76 |
| 20 | 3/4 | 25 26.7 | 38 | 76 |
| 25 | 1 | 32 33.4 | 38 | 76 |
| 32 | 1 1/4 | 38 42.2 | 48 | 96 |
| 40 | 1 | 45 48.3 | 57 | 114 |
| 50 | 2 | 57 60.3 | 76 | 152 |
| 65 | 2 1/2 | 76 73 | 95 | 190 |
| 80 | 3 | 89 | 114 | 228 |
| 90 | 3 1/2 | 101.6 | 133 | 266 |
| 100 | 4 | 108 114 | 152 | 304 |
| 125 | 5 | 133 141.3 139.7 | 190 | 380 |
| 150 | 6 | 168.3 159 165 | 229 | 458 |
| 200 | 8 | 219 216 | 305 | 610 |
Standar:ASME B16.9 DIN2605 JIS
Ketebalan:SCH5S-SCH160
FAQ
T: Apakah Anda perusahaan dagang atau produsen?
A: Penemu profesional pipa baja, produsen dan penyedia solusi
T: Berapa lama waktu pengiriman Anda?
A: Umumnya adalah 7-14 hari jika barang ada di stok. atau 30-60 hari jika barang tidak ada di stok, dan itu sesuai dengan kuantitas.
T: Apakah Anda menyediakan sampel? apakah itu gratis atau tambahan?
A: Ya, kami dapat menawarkan sampel gratis tetapi Anda perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A: Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, jangan ragu untuk menghubungi kami
KONTROL KUALITAS
1~ Pemeriksaan bahan baku yang masuk
2~ Pengelompokan bahan baku untuk menghindari campuran kelas baja
3~ Pemanasan dan Pencakar ujung untuk menggambar dingin
4~ Menggambar dingin dan penggulung dingin, pemeriksaan di jalur
5~ Pengolahan panas, +A, +SRA, +LC, +N, Q+T
6~ Perataan-Potong ke panjang yang ditentukan-Pengukuran selesai
7~ Pengujian mekanik di laboratorium sendiri dengan kekuatan tarik, kekuatan hasil, elongasi, kekerasan, dampak, struktur mikro dll
8~ Pengemasan dan Pengepakan.
-
