JIS G3472 STAM290GA STAM340G Carbon Steel Welded Pipe Untuk Mobil
Properti Dasar
Tempat Asal:
Zhejiang, Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, ISO14001, TS16949
Nomor Model:
JIS G3472
Properti Perdagangan
Jumlah Pesanan Minimum:
5 Ton
Harga:
USD1000-1500/Ton
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Kemampuan Penyediaan:
2000 Ton per Tahun
Ringkasan Produk
JIS G3472 STAM290GA STAM340G tabung las baja karbon untuk mobil Jenis: Pipa las baja karbon Pemohonpada: Untuk mobilbagian-bagian empedu Teknik: Dilapisi dingin, dilapisi panas, ERW Deskripsi Produk Komposisi kimia: Kelas baja Komposisi Kimia% C Ya. Mn P S STAM 290GA 0.12 maksimal. 0.35 maksimal. 0...
Rincian produk
Menyoroti:
Tabung Baja Dilas JIS G3472
,Tabung Baja Aluminized Mobil
,Pipa Dilas Baja Karbon STAM340G
Keyword:
Tabung Las Baja Karbon
Standard:
JIS G3472
Material:
STAM290GA, STAM290GB, STAM340G, STAM390G, dll
Technique:
Selesai dingin, selesai panas, ERW
Shape:
Bulat
Size:
OD: 12,7-380mm, WT: 0,7-4.6mm
Length:
Max12000mm
Application:
Bagian otomotif
Deskripsi Produk
JIS G3472 STAM290GA STAM340G tabung las baja karbon untuk mobil
Jenis: Pipa las baja karbon
Pemohonpada: Untuk mobilbagian-bagian empedu
Teknik: Dilapisi dingin, dilapisi panas, ERW
Deskripsi Produk
Komposisi kimia:
| Kelas baja | Komposisi Kimia% | ||||
| C | Ya. | Mn | P | S | |
| STAM 290GA | 0.12 maksimal. | 0.35 maksimal. | 0.60 maksimal. | 0.035 maksimal. | 0.035 maksimal. |
| STAM 290GB | |||||
| STAM 340G | 0.20 maksimal. | 0.35 maksimal. | 0.60 maksimal. | 0.035 maksimal. | 0.035 maksimal. |
| STAM 390G | 0.25 maksimal. | 0.35 maksimal. | 0.30 ~ 0.90 | 0.035 maksimal. | 0.035 maksimal. |
| STAM 440G | 0.25 maksimal. | 0.35 maksimal. | 0.30 ~ 0.90 | 0.035 maksimal. | 0.035 maksimal. |
| STAM 440H | |||||
| STAM 470G | 0.25 maksimal. | 0.35 maksimal. | 0.30 ~ 0.90 | 0.035 maksimal. | 0.035 maksimal. |
| STAM 470H | |||||
| STAM 500G | 0.30 maksimal. | 0.35 maksimal. | 0.30 ~ 1.00 | 0.035 maksimal. | 0.035 maksimal. |
| STAM 500H | |||||
| STAM 540H | 0.30 maksimal. | 0.35 maksimal. | 0.30 ~ 1.00 | 0.035 maksimal. | 0.035 maksimal. |
Properti mekanik:
| Kelas | Pengangkatan | Kekuatan tarik | Kekuatan Hasil | Perpanjangan(1) % Percobaan No.1 Percobaan No.2 | Uji pembakaran(2) |
| Ukuran bagian lonceng yang membengkak (D: diameter luar tabung) | |||||
| {N/mm2} | {N/mm2} | Arah bujur | |||
| Kelas G | STAM 290GA | 30 menit. | 18 menit. | 40 menit. | 1.25 D |
| {294} menit. | {177} menit. | ||||
| STAM 290GB | 30 menit. | 18 menit. | 35 menit. | 1.20 D | |
| {294} menit. | {177} menit. | ||||
| STAM 340G | 35 menit. | 20 menit. | 35 menit. | 1.20 D | |
| {343} menit. | {196} menit. | ||||
| STAM 390G | 40 menit. | 24 menit. | 30 menit. | 1.20 D | |
| {392} menit. | {235} menit. | ||||
| STAM 440G | 45 menit. | 31 menit. | 25 menit. | 1.15 D | |
| {441} menit. | {304} menit. | ||||
| STAM 470G | 48 menit. | 33 menit. | 22 menit. | 1.15 D | |
| {471} menit. | {324} menit. | ||||
| STAM 500G | 51 menit. | 36 menit. | 18 menit. | 1.15 D | |
| {500} menit. | {353} menit. | ||||
| Kelas H | STAM 440H | 45 menit. | 36 menit. | 20 menit. | 1.15 D |
| {441} menit. | {353} menit. | ||||
| STAM 470H | 48 menit. | 42 menit. | 18 menit. | 1.10 D | |
| {471} menit. | {412} menit. | ||||
| STAM 500H | 51 menit. | 44 menit. | 16 menit. | 1.10 D | |
| {500} menit. | {431} menit. | ||||
| STAM 540H | 55 menit. | 49 menit. | 13 menit. | 1.05 D | |
| {539} menit. | {481} menit. |

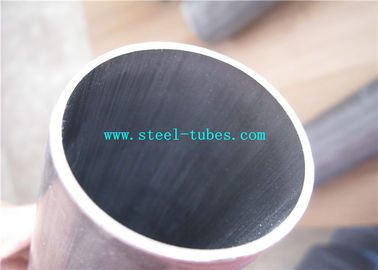

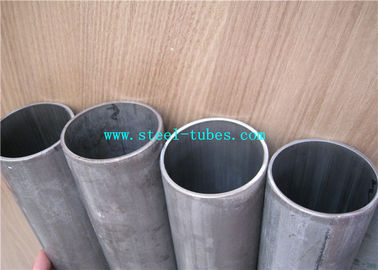

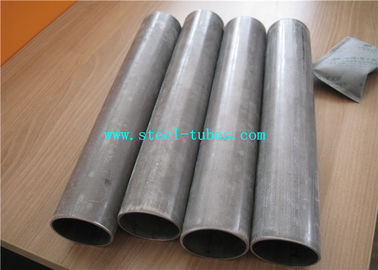

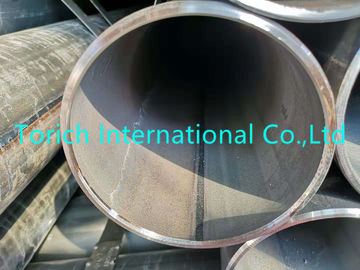

Pameran produk:
