Putaran 127 * 1.4 Pipa Baja Dilas Aluminized JIS G3314 SA1D
Properti Dasar
Tempat Asal:
Zhejiang, Cina
Nama merek:
TORICH
Sertifikasi:
ISO 9001 ISO 14001 TS16949
Nomor Model:
JIS G3314
Properti Perdagangan
Jumlah Pesanan Minimum:
10 TON
Harga:
900-1200 usd per ton
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
50.000 ton per tahun
Ringkasan Produk
JIS G3314 SA1D 127*1.4 Tabung Baja Aluminasi Las ASTM A513 Tubing Mekanis Karbon dan Baja Legasi yang Dilas dengan Resistensi Listrik Ukuran: O.D.:6-350mm W.T.:1-12.5mm L:max12000mm Kelas: 1008,1010, 1020, 1026 Produksi: ERW + DOM Kelas baja dan komposisi kimia: Kelas baja C Mn P S Ya. Cr Mo ...
Rincian produk
Menyoroti:
Pipa Baja Dilas JIS G3314
,SA1D Tabung Baja Karbon Mulus
,Pipa Baja Dilas Aluminized
Product Name:
JIS G3314 SA1D 127 * 1.4 Tabung Baja Aluminized Dilas
Keyword:
Tabung Baja Aluminized
Application:
Untuk Sistem Knalpot
Type:
ERW/HFW
Shape:
Bulat
Material:
1010,1020,1045, SPHC, SPCC, 4130
Length:
Max12000mm
OD:
5-420mm
WT:
0,5-50mm
Brand:
UNTUK KAYA
Deskripsi Produk
JIS G3314 SA1D 127*1.4 Tabung Baja Aluminasi Las
ASTM A513 Tubing Mekanis Karbon dan Baja Legasi yang Dilas dengan Resistensi Listrik
Ukuran: O.D.:6-350mm W.T.:1-12.5mm L:max12000mm
Kelas: 1008,1010, 1020, 1026
Produksi: ERW + DOM
| Kelas baja dan komposisi kimia: | |||||||
| Kelas baja | C | Mn | P | S | Ya. | Cr | Mo |
| maksimal | maksimal | maksimal | maksimal | menit | |||
| 1008 | 0.10 | 0.5 | 0.035 | 0.035 | |||
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.035 | 0.035 | |||
| 1018 | 0.14-0.20 | 0.30-0.60 | 0.035 | 0.035 | |||
| 1020 | 0.17-0.23 | 0.30-0.60 | 0.035 | 0.035 | |||
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.035 | 0.035 | |||
| 1035 | 0.31-0.38 | 0.60-0.90 | 0.035 | 0.035 | |||
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.035 | 0.035 | 0.15-0.35 | 0.80-1.10 | 0.08-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.00 | 0.035 | 0.035 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |

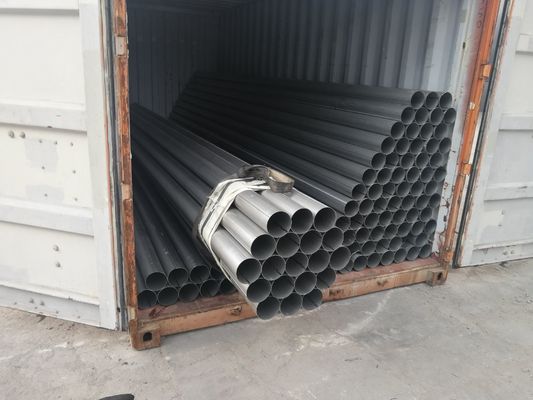

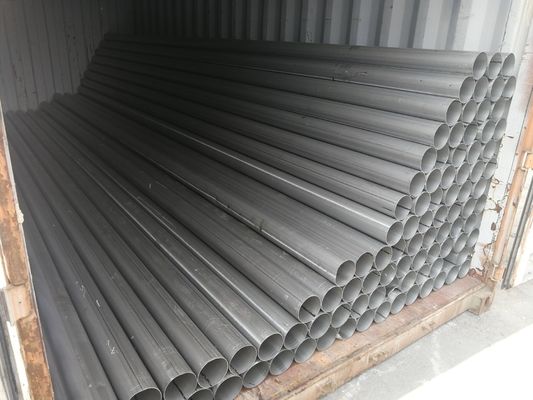

Pengemasan:
Dalam Bundel Hexagonal, dengan perlindungan anti korosi minyak, dengan kemasan yang layak untuk laut
Kondisi pengiriman:
1A.W.H.R. "sebagai las" dari baja bergelombang panas
2A.W.C.R. "sebagai las" dari baja yang digulung dingin
3S.D.C.R. "sink-drawn", baja yang digulung dingin
5. M.D. mandrel ditarik
6.S.S.I.D. diameter dalaman halus khusus
Silahkan tentukan kondisi pengiriman saat mengirim pertanyaan!
Kondisi termal:
1Tidak ada perawatan termal akhir.
2. Menghilangkan stres
3. Dipanaskan
4- Normal.
Aplikasi: untuk Mesin, Insinyur Mekanik, Bagian Otomotif, Pertanian.
Gambar produk
OD127mm*WT1.5mm ERW Steel Tubes with Erased Seam untuk Sistem Eksos Truk Berat
