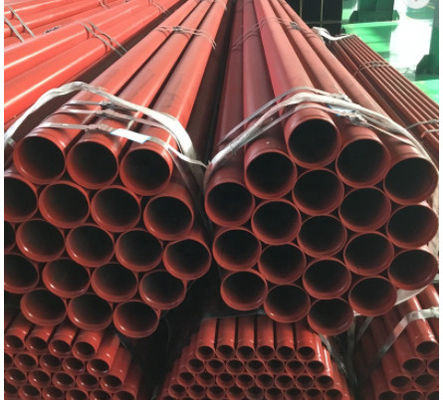

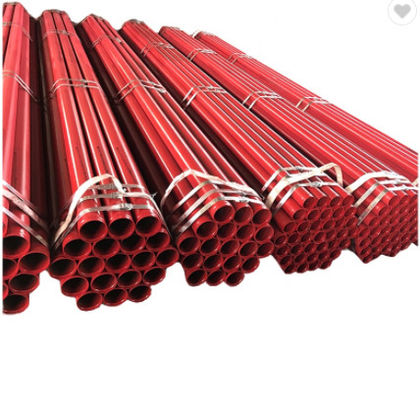

Pipa Penyiram Api Baja Berjajar Plastik UL FM
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001
Nomor Model:
ASTM A135 atau ASTM A795
Properti Perdagangan
Jumlah Pesanan Minimum:
20 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L / C, T / T
Kemampuan Penyediaan:
5000 ton per tahun
Ringkasan Produk
UL FM Plastik Lining Steel Pipe Fire Sprinkler Piping Merah Hitam dicat Steel Pipe Standar produk:ASTM A135 atau ASTM A795Spesifikasi:O.D.: Φ33.7 Φ219.1 (mm)Ketebalan dinding: 2,75 ∼ 5,0 (mm)Anticorrosive: 1. galvanis panas; 2. lapisan bubuk; 3.catKondisi akhir: 1. Bergelombang; 2. ujung rata; 3. ...
Rincian produk
Menyoroti:
Pipa Penyiram Api Baja Berjajar Plastik
,Pipa Penyiram Api FM UL
,Pipa Penyiram Api FM UL
Certification:
ISO
Application:
Struktur Pipa
Standard:
Standar
Grade:
Q345,Q195,20#
Technique:
ERW
Section Shape:
Bulat
Alloy Or Not:
Non-Paduan
Deskripsi Produk
UL FM Plastik Lining Steel Pipe Fire Sprinkler Piping Merah Hitam dicat Steel Pipe
Standar produk:ASTM A135 atau ASTM A795
Spesifikasi:
O.D.: Φ33.7 Φ219.1 (mm)
Ketebalan dinding: 2,75 ∼ 5,0 (mm)
Anticorrosive: 1. galvanis panas; 2. lapisan bubuk; 3.cat

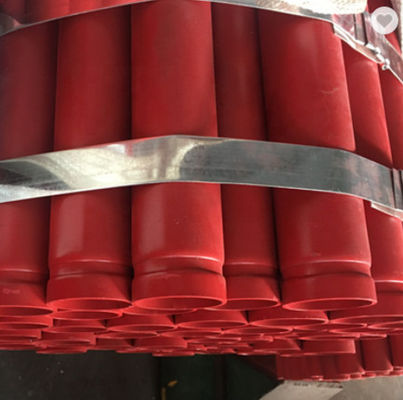

Kondisi akhir: 1. Bergelombang; 2. ujung rata; 3. bergerudi & soket
Fungsi: Sistem pasokan air dan kebakaran di bangunan
Spesifikasi:
O.D.: Φ33.7 Φ219.1 (mm)
Ketebalan dinding: 2,75 ∼ 5,0 (mm)
Anticorrosive: 1. galvanis panas; 2. lapisan bubuk; 3.cat
Kondisi akhir: 1. Bergelombang; 2. ujung rata; 3. bergerudi & soket
Fungsi: Sistem pasokan air dan kebakaran di bangunan
| ASTM A135 (BLACK & GALVANISED) SCH10 | ||||
| N.D. | O.D. | Ketebalan dinding | Berat nominal | Tekanan pengujian |
| inci | mm | mm | kg/m | M.P. |
| 4/3 | 26.8 | 2.11 | 1.28 | 17.24 |
| 1 | 33.5 | 2.77 | 2.09 | 17.24 |
| 1-1/4 | 42.2 | 2.77 | 2.7 | 16.55 |
| 1-1/2 | 48.3 | 2.77 | 3.1 | 14.48 |
| 2 | 60.3 | 2.77 | 3.93 | 11.72 |
| 2-1/2 | 73 | 3.05 | 5.26 | 10.34 |
| 3 | 88.9 | 3.05 | 6.45 | 8.27 |
| 3-1/2 | 101.6 | 3.05 | 7.41 | 6.89 |
| 4 | 114.3 | 3.05 | 8.36 | 6.21 |
| 5 | 141.3 | 3.40 | 11.58 | 5.86 |
| 6 | 168.3 | 3.40 | 13.84 | 5.02 |
| 8 | 219 | 4.80 | 15.41 | 4.26 |
| ASTM A135 (BLACK & GALVANISED) SCH40 | ||||
| N.D. | O.D. | Ketebalan dinding | Berat nominal | Tekanan pengujian |
| inci | mm | mm | kg/m | M.P. |
| 1/2 | 21.3 | 2.77 | 1.27 | 17.20 |
| 3/4 | 26.8 | 2.87 | 1.68 | 17.20 |
| 1 | 33.5 | 3.38 | 2.50 | 17.20 |
| 1-1/4 | 42.2 | 3.56 | 3.38 | 17.20 |
| 1-1/2 | 48.3 | 3.68 | 4.05 | 17.20 |
| 2 | 60.3 | 3.91 | 5.43 | 16.08 |
| 1-1/2 | 73 | 5.16 | 8.62 | 17.20 |
| 3 | 88.9 | 5.49 | 11.28 | 15.30 |
| 3-1/2 | 101.6 | 5.74 | 13.56 | 14.00 |
| 4 | 114.3 | 6.02 | 16.06 | 13.06 |
| 5 | 141.3 | 6.55 | 21.76 | 11.50 |
| 6 | 168.3 | 7.11 | 28.34 | 10.48 |
| 8 | 219.1 | 8.18 | 36.90 | 7.96 |
ASTM A795 (BLACK & GALVANISED)
N.D. O.D. SCH 10 SCH 30/40
Ketebalan dinding Berat nominal Ketebalan dinding Berat nominal
(mm) (inch) (mm) (inch) (mm) (inch) (kg/mtrs) (lbs/ft) (mm) (inch) (kg/mtrs) (lbs/ft)
15 1/2 21.30 0.84 ---- ---- ---- 2.77 0.109 1.27 0.85
20 3/4 26.70 1.05 2.11 0.083 1.28 0.96 2.87 0.113 1.69 1.13
25 1 33.40 1.32 2.77 0.109 2.09 1.41 3.38 0.133 2.50 1.68
32 1-1/4 42.20 1.66 2.77 0.109 2.69 1.81 3.56 0.14 3.39 2.27
40 1-1/2 48.30 1.90 2.77 0.109 3.11 2.09 3.68 0.145 4.05 2.72
50 2 60.30 2.38 2.77 0.109 3.93 2.64 3.91 0.154 5.45 3.66
65 2-1/2 73.00 2.88 3.05 0.12 5.26 3.53 5.16 0.203 8.64 5.80
80 3 88.90 3.50 3.05 0.12 6.46 4.34 5.49 0.216 11.29 7.58
90 3-1/2 101.60 4.00 3.05 0.12 7.41 4.98 5.74 0.226 13.58 9.12
100 4 114.30 4.50 3.05 0.12 8.37 5.62 6.02 0.237 16.09 10.80
125 5 141.30 5.56 3.4 0.134 11.58 7.78 6.55 0.258 21.79 14.63
150 6 168.30 6.63 3.4 0.134 13.85 9.30 7.11 0.28 28.29 18.99
200 8 219.10 8.63 4.78 0.188 25.26 16.96 7.04 0.277 36.82 24.72
250 10 273.10 10.75 4.78 0.188 31.62 21.23 7.08 0.307 51.05 34.27
