EN 10305-3 DC01 63.5x2.9 Pipa Baja Presisi Cold Rolled Untuk Roller Konveyor
Rincian produk

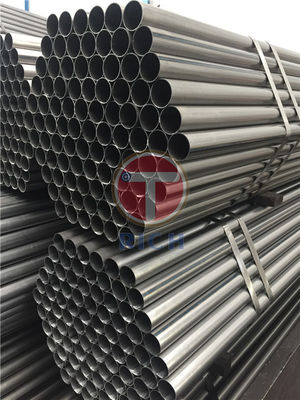

63.5x2.9 Pipa Baja Presisi
,Pipa Baja Presisi DC01
,EN 10305-3 Tabung Baja Presisi
EN 10305-3 DC01 63.5x2.9 Pipa Baja Precision Welded Cold Rolled Zinc Coating Untuk Convey Roller
EN 10305-3 Tabung baja standar untuk aplikasi presisi-Ketentuan teknis pengiriman
Bagian 3: Tabung berukuran dingin yang dilas
EN 10305- Bagian 1 : Tabung tarik dingin tanpa jahitan
Bagian 2: Tabung yang digosok dingin
Bagian 3: Tabung berukuran dingin yang dilas
Bagian 4:Tabung tarik dingin tanpa jahitan untuk hidraulik dan sistem tenaga pneumatik
Bagian 5: Las tabung persegi dan persegi panjang berukuran dingin
Bagian 6: Tabung tarik dingin yang dilas untuk sistem tenaga hidrolik dan pneumatik
Standar Eropa ini menentukan kondisi teknis pengiriman untuk tabung baja berukuran bulat yang dilas dingin
Bagian untuk aplikasi presisi dengan diameter luar yang ditentukan D≤ 193,7mm.
Bahannya adalah Q235 DC01 dll baja karbon atau baja tahan karat.
Panjang: 5800mm 600mm atau sesuai permintaan pelanggan
Jumlah: MOQ adalah 5-10 ton
Ukuran biasa: 63.5X2.9
50X1,5mm
Kejujuran:≤0,8mm/1000mm
Paket: Dalam bundel atau sesuai permintaan pelanggan.
Aplikasi:
-
