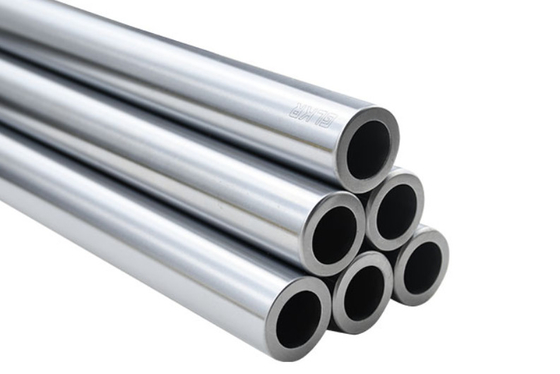

Batang ETH 1.4301 AISI 304 Tabung Baja Tahan Karat Mulus Tanah Selesai Dingin
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
IS09001 ISO14001 TS16949
Nomor Model:
A269 A213 A312
Properti Perdagangan
Jumlah Pesanan Minimum:
0,3 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
5000 ton per tahun
Ringkasan Produk
ETH batang 1.4301 AISI 304 tabung stainless steel tanpa jahitan selesai dingin Bahan:1.4301 ((ANSI 304) Kekuatan tarik Rm min 500MPa Batas elastis Rp0,2 min 200MPa Toleransi OD H8.H9 Toleransi ID H8 H9 Ketegasan batang ≤ 0,2 mm/1000 mm 0,3 mm/1000 mm Ukuran: 22X2 283 45X5 70X4.85 85X7.5mm Panjang ...
Rincian produk
Menyoroti:
aisi 304 tabung stainless steel mulus
,1
,4301 tabung stainless steel mulus
Standard:
ASTM
Technique:
Selesai Dingin
Application:
Silinder Hidrolik
Section Shape:
Bulat
Length:
kebutuhan pelanggan
Product Name:
Batang ETH 1,4301 AISI 304 tabung baja tahan karat tanah jadi dingin yang mulus
Deskripsi Produk
ETH batang 1.4301 AISI 304 tabung stainless steel tanpa jahitan selesai dingin
Bahan:1.4301 ((ANSI 304)
Kekuatan tarik Rm min 500MPa
Batas elastis Rp0,2 min 200MPa
Toleransi OD H8.H9
Toleransi ID H8 H9
Ketegasan batang ≤ 0,2 mm/1000 mm 0,3 mm/1000 mm
Ukuran: 22X2 283 45X5 70X4.85 85X7.5mm
Panjang Panjang acak
1.4301:
| Kekuatan tarik σb (MPa) | ≥515-1035 |
| Kekuatan yield kondisional σ0,2 (MPa) | ≥205 |
| Elongasi δ5 (%) | ≥ 40 |
| Pengurangan luas ψ (%) | ≥? |
| Kekerasan: | ≤ 201HBW; ≤ 92HRB; ≤ 210HV |
| Densitas (20°C, g/cm3): | 7.93 |
| Titik leleh (°C): | 1398~1454 |
| Kapasitas panas spesifik | (0~100°C, KJ·kg-1K-1): 0.50 |
| Konduktivitas termal (W·m-1·K-1): | (100°C) 16.3, (500°C) 21.5 |
| Koefisien ekspansi linier (10-6·K-1): | (0~100°C) 17.2, (0 ~ 500 °C) 18.4 |
| Resistivitas (20°C, 10-6Ω·m2/m): | 0.73 |
| Modulus elastisitas longitudinal (20°C, KN/mm2): | 193 |
| Standar Produk |
