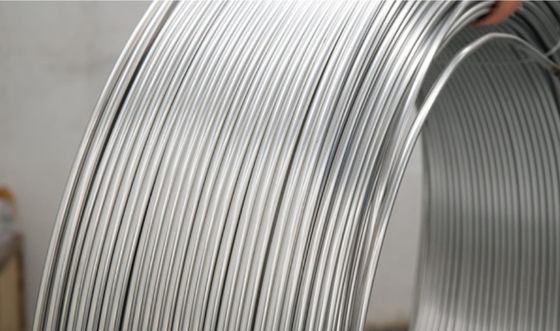

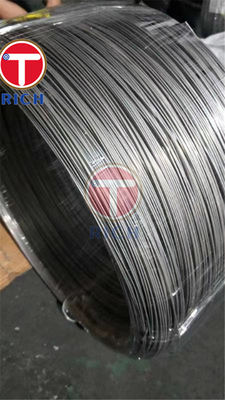

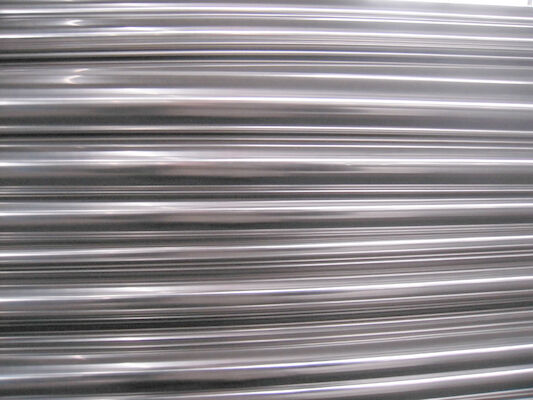

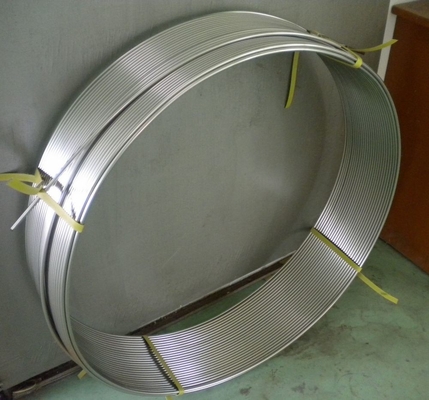

SS 316 Seamless Coiled SCH5 Tabung Baja Presisi
Rincian produk
Ss 316 Tabung Baja Presisi
,Tabung Baja Presisi SCH5
,Tabung Baja Melingkar Presisi
SS 316 Tabung bergelombang tanpa jahitan dari stainless steel
TORICH adalah produsen profesional dan pemasok tabung bergelombang tanpa jahitan stainless steel dari Cina, tabung bergelombang tanpa jahitan stainless steel banyak digunakan di bidang pembuatan kapal,Bagian Mobil, VIndustri kimia, minyak, dll.
Metode produksi:
Stainless Steel Seamless Coiled Tubes biasanya diproduksi oleh mesin cold drawing dengan roller di ujungnya, tabung bahan baku stainless harus melalui mandrel dan mati untuk ukuran target,kemudian ditarik dingin dengan cara yang konstan untuk membuat tabung lurus menjadi bentuk kumparan dengan panjang maksimum sekitar 500m per kumparanPanjang maksimum kumparan bervariasi dari diameter yang berbeda.
Tabung Baja Precision Seamless Coiled juga bisa diproduksi dengan tabung baja tahan karat 304.
Kelas baja dapat diproduksi berdasarkan kebutuhan pelanggan dan penggunaan akhir spesifik mereka untuk produk mereka.
| Produk | Stainless Steel Coiled Tubing |
| Diameter luar | 1-50 mm |
| Ketebalan | 0.1-5mm/SCH5-SCH160-SCHXXS |
| Proses Produksi | Ditarik dingin, digulung dingin, terang Anneal dll |
| Aplikasi | 1) tabung exahanger panas untuk petrokimia, pengembangan kimia dan lautan 3) untuk turbin gas dan proses prochemical 4) Tabung kondensor,sulfur dan fosfor tabung asam, tabung API 5).Konstruksi dan hiasan |
| Item Harga | EXW, FOB, CNF, CIF dll |
| Permukaan | Bumbu yang berwarna putih, cerah, dll. |
| Jenis | Tidak ada jahitan, |
| Bahan | Seri 200: 201,202,202Cu,204Cu, Seri 300: 301,303/Cu,304/L/H 316/L/H/Ti,321/H,347/H,330, |

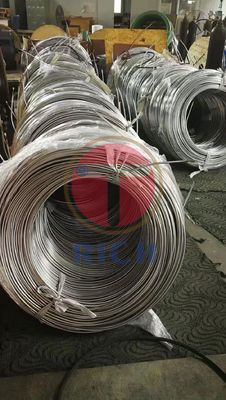

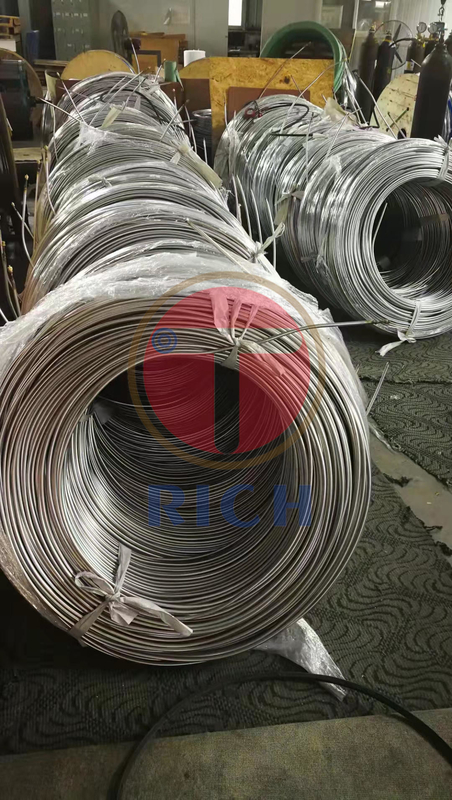

* Kotak Kayu.
* Palet Kayu.
* Tas Tenun dengan Bundle di 3 Titik.
Stainless Steel Spiral Tube Heat Exchanger Coil
Kemasan dan Pengiriman:
-
